120

Net Power - ISO 9249/SAE J1349: 174 hp / 134 kW
Operating Weight - Typically Equipped: 37106 lb / 16831 kg
Blade Width: 12 ft / 3.7 m

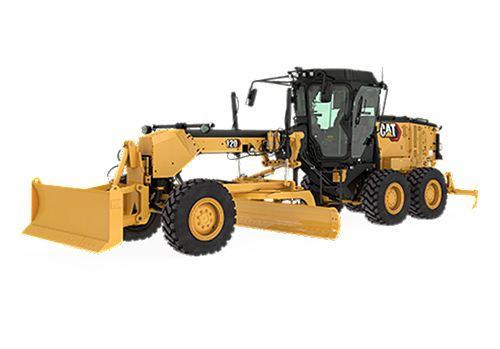

Cat® 120 motor graders are designed for road grading, shaping shoulders, and shaping slopes. Available in all wheel drive for extra traction.

Loan Calculator Credit Application

Build & Quote

120 Product Brochure 120 Technical Specifications Cat® Technologies for Motor Graders Brochure Cat® Grade Technologies for Motor Graders Brochure Motor Grader Rig Out Catalog

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249/SAE J1349	174 hp / 134 kW
Engine Model	Cat 7.1
Emissions	U.S. EPA Tier 4 Final/EU Stage V emission standards
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

Weights
Operating Weight - Typically Equipped	37106 lb / 16831 kg
Note	*Typically equipped includes 3.7 m (12 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.

Moldboard
Blade Width	12 ft / 3.7 m

Power Train
Transmission	Direct Drive Powershift, Countershift
Forward/Reverse Gears	9 Forward / 6 Reverse

Service Refill Capacities
Fuel Tank	65 gal (US) / 246 l
Diesel Exhaust Fluid Tank (Tier 4 Only)	3 gal (US) / 11 l

Sustainability
Recyclability	96%

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a carbon dioxide equivalent of 2.288 metric tonnes (2.521 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
- Vinyl Seat
- ROPS, Standard Sound Suppression
- Heating/Cooling Cab System
- Base Cab
- 254 mm (10 in) Hybrid Information Display
- Halogen Lighting
Cat Technology
- Product Link
Engine
- Cat C7.1
- Eco mode
- Hydraulic Demand Fan
Drawbar Circle Moldboard
- Standard
- Circle Drive Slip Clutch
Safety
- Parking brake
- Signaling/warning horn
- Rearview mirror
- Hydraulic brakes
- Secondary steering system
- Side view mirrors
- Walkways and Grab Rails

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
- Cloth or Leather Seat
- Steering Wheel/Lever Controls
- Joystick Controls
- Rear Wiper
- Comfort Plus
- Premium Plus
- Seatbelt Indicator
- Heated/Cooled Seat
- Bluetooth/Auxiliary Radio
- LED Lighting
- Rear Window Screen
Cat Technology
- Cat Grade with Digital Blade Slope Meter
- Cat Grade with Cross Slope Indicate
- Cat Grade with Cross Slope
- Cat Grade Attachment Ready Option (ARO)
- Stable Blade
- Remote Services
Engine
- All-Wheel Drive (AWD)
Drawbar Circle Moldboard
- Top Adjust
- Circle Saver
Safety
- Rearview camera
Versatility
- Counterweight
- Push Block
- Ripper
- Scarifier
- Front Lift Group
- Front Blade
- Front Blade
- HD Ripper

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Cross Slope Assist for Motor Graders
Cat Grade with 3D for Motor Graders

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink™ Productivity

Lift Group

Increase machine versatility and improve overall production.

Model	Pin Diameter	Actuation	Machine Model
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	120, 140 LVR
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	120, 140 LVR
