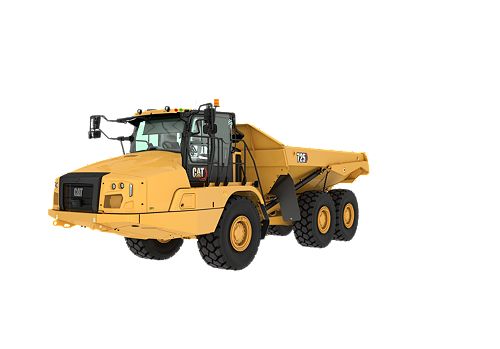

725
- Rated Payload
- 26.5 ton (US) / 24 t
- Heaped (SAE 2:1)
- 19.6 yd³ / 15 m³
- Gross Power (SAE J1995)
- 352 hp / 263 kW

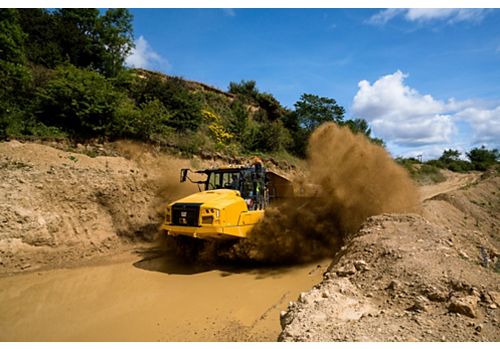

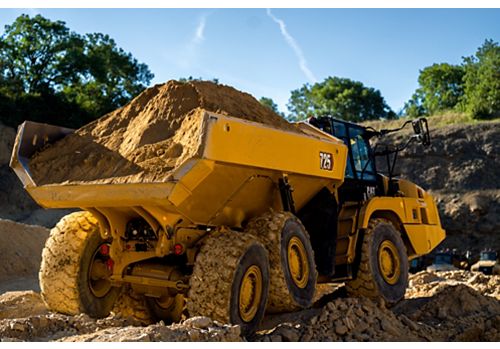

Haul more, dump more with the Cat® 725 articulated truck. Get more done with less effort. Automated technology features simplify operation, while its efficient power-to-weight ratio cuts fuel costs—so you move more material for less.
| Engine | |
|---|---|
| Engine Model | Cat® C13B |
| Gross Power (SAE J1995) | 352 hp / 263 kW |
| Net Power (SAE J1349) | 345 hp / 257 kW |
| Engine Power (ISO 14396) | 347 hp / 259 kW |
| Bore | 5.12 in / 130 mm |
| Stroke | 6.18 in / 157 mm |
| Displacement | 763 in³ / 12.5 l |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 257 kW (345 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final/EU Stage V, Japan 2014, and Korea Stage V emission standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| No Engine De-rating Below | 12500 ft / 3810 m |
| Peak Engine Torque Gross (SAE J1995) | 1431 lbf·ft / 1941 N·m |
| Peak Engine Torque Net (SAE J1349) | 1263 lbf·ft / 1712 N·m |
| Peak Engine Torque Speed | 1200 r/min |
| Weights | |
|---|---|
| Rated Payload | 26.5 ton (US) / 24 t |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 19.6 yd³ / 15 m³ |
| Struck | 15 yd³ / 11.5 m³ |
| Tailgate Heaped SAE 2:1 | 20.8 yd³ / 15.9 m³ |
| Tailgate Struck | 15.7 yd³ / 12 m³ |
| Transmission | |
|---|---|
| Forward - 1 | 5 mile/h / 8 km/h |
| Forward - 2 | 9 mile/h / 15 km/h |
| Forward - 3 | 14 mile/h / 22 km/h |
| Forward - 4 | 21 mile/h / 34 km/h |
| Forward - 5 | 29 mile/h / 47 km/h |
| Forward - 6 | 34 mile/h / 55 km/h |
| Reverse - 1 | 6 mile/h / 9 km/h |
| Sound Levels | |
|---|---|
| Note (1) | The declared dynamic operator sound pressure level is 69±2 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 31438 lb / 14260 kg |
| Center Axle - Empty | 10009 lb / 4540 kg |
| Rear Axle - Empty | 9502 lb / 4310 kg |
| Total - Empty | 50949 lb / 23110 kg |
| Front Axle - Rated Load | 5564 lb / 2524 kg |
| Center Axle - Rated Load | 23673 lb / 10738 kg |
| Rear Axle - Rated Load | 23673 lb / 10738 kg |
| Total - Rated Load | 52911 lb / 24000 kg |
| Front Axle - Loaded | 37002 lb / 16784 kg |
| Center Axle - Loaded | 33682 lb / 15278 kg |
| Rear Axle - Loaded | 33175 lb / 15048 kg |
| Total - Loaded | 103860 lb / 47110 kg |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 0.28 in / 7 mm |
| Base Plate | 0.51 in / 13 mm |
| Side Plates | 0.43 in / 11 mm |
| Scow | 0.51 in / 13 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 105.7 gal (US) / 400 l |
| Cooling System | 21.9 gal (US) / 83 l |
| Steering/Hoist Hydraulic System | 32.5 gal (US) / 123 l |
| Engine Crankcase | 11.4 gal (US) / 43 l |
| Transmission | 12.4 gal (US) / 47 l |
| Output Transfer Gear Box | 6.6 gal (US) / 25 l |
| Final Drive - Each | 33 gal (US) / 125 l |
| DEF Tank | 9 gal (US) / 34 l |

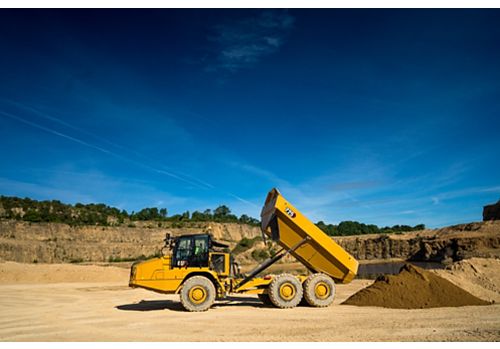

| Body Hoist | |
|---|---|
| Raise Time | 12 s |
| Lower Time | 8 s |
| Standards | |
|---|---|
| Brakes | ISO 3450 – 2011 |
| Cab - FOPS | ISO 3449 - 2005 Level II |
| Cab - ROPS | ISO 3471 – 2008 |
| Steering | ISO 5010 – 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45° |
| Turning Dimensions - SAE Turning Radius | 294 in / 7470 mm |
| Turning Dimensions - Clearance Radius | 318 in / 8075 mm |
| Turning Dimensions - Inside Radius | 153 in / 3879 mm |
| Turning Dimensions - Aisle Width | 210 in / 5332 mm |
| Note | Dimensions are for machines equipped with 23.5R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavators: 350/352 - Passes | 4-5 |
| Hydraulic Excavators: 336 - Passes | 5-6 |
| Wheel Loaders: 972/972 XE - Passes | 3-4 |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 4-5 |
| Wheel Loader: 950 - Passes | 5 |

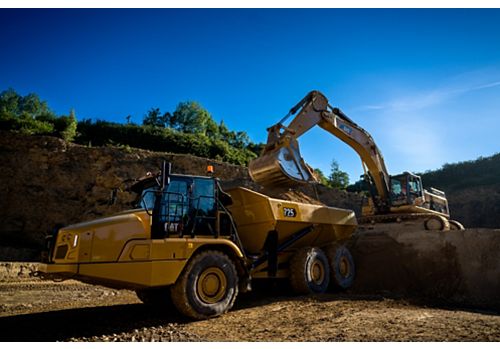

| Note | An optimum system match gives you a major productivity advantage. The 725 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
