730
- Rated Payload
- 31 ton (US) / 28 t
- Heaped (SAE 2:1)
- 23 yd³ / 17.5 m³
- Gross Power (SAE J1995)
- 375 hp / 280 kW

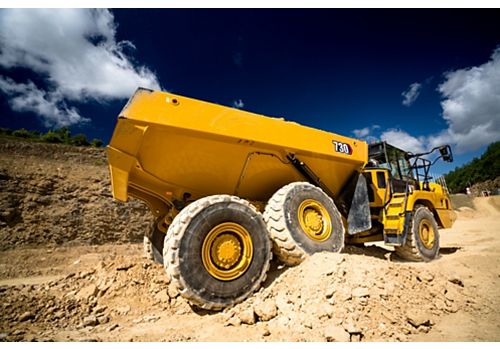

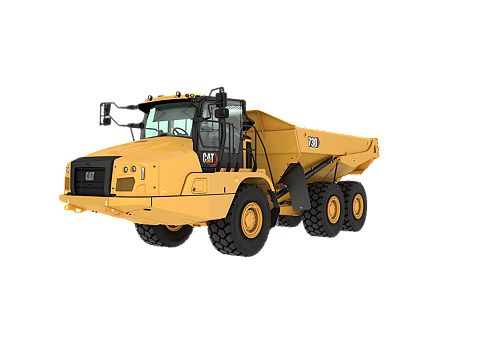

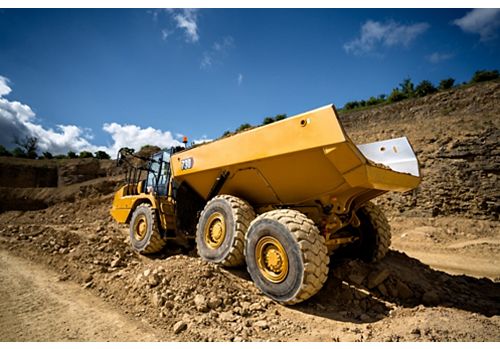

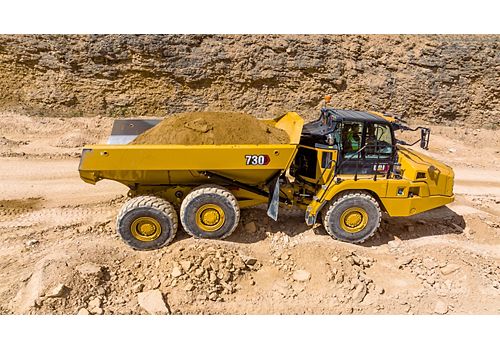

Haul more, dump more with the Cat® 730 articulated truck. With a 31-ton (28-tonne) payload capacity, it’s designed to boost productivity—especially on compact jobsites. Pass-matched with Cat excavators and loaders, you can move more material efficiently and with less effort.
| Engine | |
|---|---|
| Engine Model | Cat® C13B |
| Gross Power (SAE J1995) | 375 hp / 280 kW |
| Net Power (SAE J1349) | 367 hp / 274 kW |
| Engine Power (ISO 14396) | 370 hp / 276 kW |
| Bore | 5.1 in / 130 mm |
| Stroke | 6.2 in / 157 mm |
| Displacement | 762.8 in³ / 12.5 l |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Advertised power is tested at 1,800 rpm. |
| Note (3) | Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 274 kW (367 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014, and Korea Stage V emission standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat SCR systems must meet the requirements outlined in ISO 22241-1:2006. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| No Engine De-rating Below | 12500 ft / 3810 m |
| Peak Engine Torque Gross (SAE J1995) | 1579 lbf·ft / 2141 N·m |
| Peak Engine Torque Net (SAE J1349) | 1554 lbf·ft / 2107 N·m |
| Peak Engine Torque Speed | 1200 r/min |
| Weights | |
|---|---|
| Rated Payload | 31 ton (US) / 28 t |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 23 yd³ / 17.5 m³ |
| Struck | 18.2 yd³ / 13.9 m³ |
| Tailgate Heaped SAE 2:1 | 24.6 yd³ / 18.8 m³ |
| Tailgate Struck | 19.1 yd³ / 14.6 m³ |
| Transmission | |
|---|---|
| Forward - 1 | 5 mile/h / 8 km/h |
| Forward - 2 | 9 mile/h / 15 km/h |
| Forward - 3 | 14 mile/h / 22 km/h |
| Forward - 4 | 21 mile/h / 34 km/h |
| Forward - 5 | 29 mile/h / 47 km/h |
| Forward - 6 | 34 mile/h / 55 km/h |
| Reverse - 1 | 6 mile/h / 9 km/h |
| Sound Levels | |
|---|---|
| Note (1) | The declared dynamic operator sound pressure level is 70 +/- 1 when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 31658 lb / 14360 kg |
| Center Axle - Empty | 10340 lb / 4690 kg |
| Rear Axle - Empty | 9833 lb / 4460 kg |
| Total - Empty | 51831 lb / 23510 kg |
| Front Axle - Rated Load | 7165 lb / 3250 kg |
| Center Axle - Rated Load | 27282 lb / 12375 kg |
| Rear Axle - Rated Load | 27282 lb / 12375 kg |
| Total - Rated Load | 61729 lb / 28000 kg |
| Front Axle - Loaded | 38823 lb / 17610 kg |
| Center Axle - Loaded | 37622 lb / 17065 kg |
| Rear Axle - Loaded | 37115 lb / 16835 kg |
| Total - Loaded | 113560 lb / 51510 kg |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 0.28 in / 7 mm |
| Base Plate | 0.51 in / 13 mm |
| Side Plates | 0.43 in / 11 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 106 gal (US) / 400 l |
| DEF Tank | 9 gal (US) / 34 l |
| Cooling System | 22 gal (US) / 83 l |
| Hydraulic System | 32 gal (US) / 123 l |
| Engine Crankcase | 11.4 gal (US) / 43 l |
| Transmission | 12.4 gal (US) / 47 l |
| Final Drives/Differential | 33 gal (US) / 125 l |
| Output Transfer Gear Box | 7 gal (US) / 25 l |
| Body Hoist | |
|---|---|
| Raise Time | 12 s |
| Lower Time | 8 s |
| Standards | |
|---|---|
| Brakes | ISO 3450:2011 |
| Cab - FOPS | ISO 3449:2005 Level II |
| Cab - ROPS | ISO 3471:2008 |
| Steering | ISO 5010:2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45° |
| Turning Dimensions - SAE Turning Radius | 294 in / 7470 mm |
| Turning Dimensions - Clearance Radius | 318 in / 8075 mm |
| Turning Dimensions - Inside Radius | 153 in / 3879 mm |
| Turning Dimensions - Aisle Width | 210 in / 5332 mm |
| Note | Dimensions are for machines equipped with 23.5R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavators: 350/352 - Passes | 5-Apr |
| Hydraulic Excavators: 336 - Passes | 6-May |
| Wheel Loaders: 972/972 XE - Passes | 4-Mar |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 5-Apr |
| Wheel Loader: 950 - Passes | 5 |

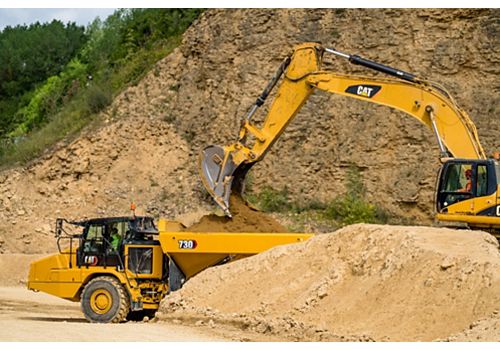

| Note | An optimum system match gives you a major productivity advantage. The 730 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators and Cat 972, 966, 962, and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
