740
- Rated Payload
- 40 ton (US) / 36.3 t
- Heaped (SAE 2:1)
- 29.7 yd³ / 22.7 m³
- Gross Power (SAE J1995)
- 452 hp / 337 kW

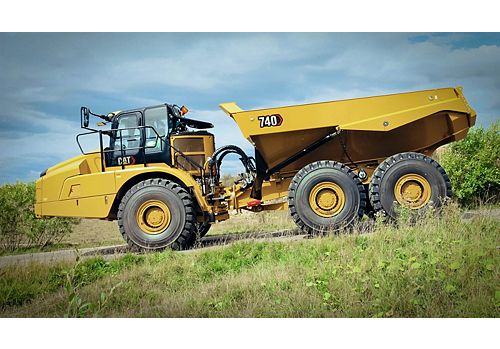

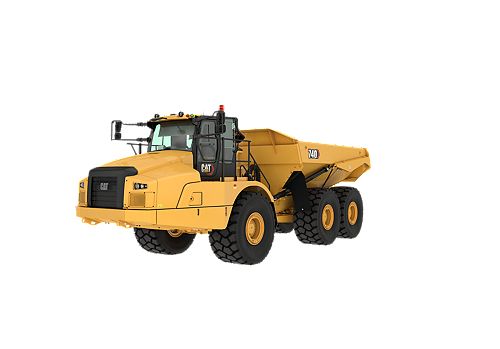

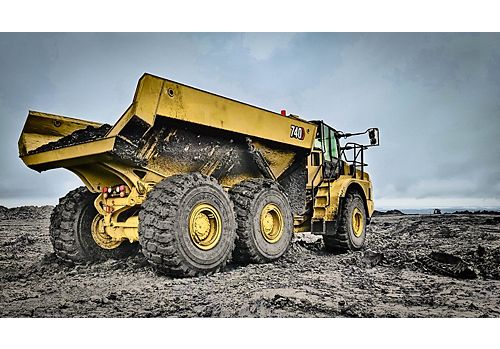

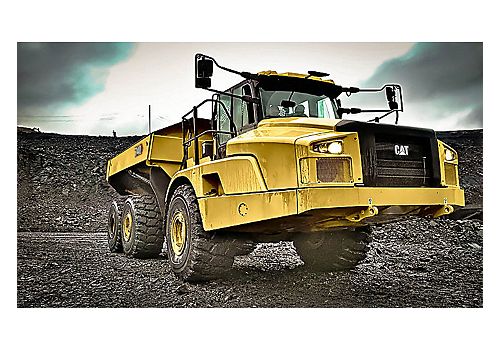

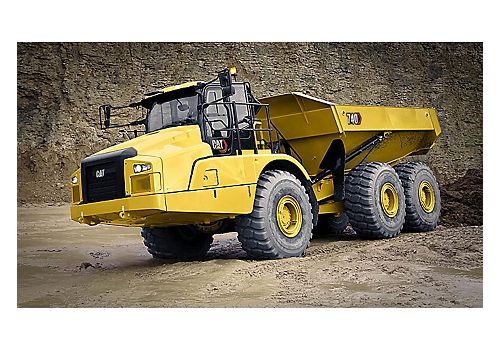

The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world-class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built-in transmission protection, hoist assist, advanced automatic traction control, stability-assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low.
| Engine | |
|---|---|
| Engine Model | Cat® C15 |
| Gross Power (SAE J1995) | 452 hp / 337 kW |
| Net Power (SAE J1349) | 439 hp / 327 kW |
| Engine Power (ISO 14396) | 447 hp / 333 kW |
| Bore | 5.4 in / 137 mm |
| Stroke | 6.75 in / 171.5 mm |
| Displacement | 926 in³ / 15.2 l |
| Note (1) | Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| No Engine De-rating Below | 10000 ft / 3050 m |
| Peak Engine Torque Gross (SAE J1995) | 1711 lbf·ft / 2320 N·m |
| Peak Engine Torque Net (SAE J1349) | 1670 lbf·ft / 2264 N·m |
| Peak Engine Torque Speed | 1200 r/min |
| Weights | |
|---|---|
| Rated Payload | 40 ton (US) / 36.3 t |
| Body Capacities | |
|---|---|
| Heaped (SAE 2:1) | 29.7 yd³ / 22.7 m³ |
| Struck | 23.2 yd³ / 17.7 m³ |
| Tailgate Heaped SAE 2:1 | 32 yd³ / 24.5 m³ |
| Tailgate Struck | 24.4 yd³ / 18.7 m³ |
| Transmission | |
|---|---|
| Forward - 1 | 4 mile/h / 6.4 km/h |
| Forward - 2 | 5.3 mile/h / 8.5 km/h |
| Forward - 3 | 7.3 mile/h / 11.5 km/h |
| Forward - 4 | 9.2 mile/h / 14.8 km/h |
| Forward - 5 | 12.2 mile/h / 19.7 km/h |
| Forward - 6 | 14.9 mile/h / 24 km/h |
| Forward - 7 | 20.6 mile/h / 33.1 km/h |
| Forward - 8 | 24.7 mile/h / 39.8 km/h |
| Forward - 9 | 35.7 mile/h / 57.5 km/h |
| Reverse - 1 | 4.2 mile/h / 6.8 km/h |
| Reverse - 2 | 9.8 mile/h / 15.7 km/h |
| Sound Levels | |
|---|---|
| Interior Cab | 72 dB(A) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Operating Weights | |
|---|---|
| Front Axle - Empty | 43200 lb / 19595 kg |
| Center Axle - Empty | 14804 lb / 6715 kg |
| Rear Axle - Empty | 14562 lb / 6605 kg |
| Total - Empty | 72565 lb / 32915 kg |
| Front Axle - Rated Load | 7002 lb / 3176 kg |
| Center Axle - Rated Load | 36513 lb / 16562 kg |
| Rear Axle - Rated Load | 36513 lb / 16562 kg |
| Total - Rated Load | 80027 lb / 36300 kg |
| Front Axle - Loaded | 50201 lb / 22771 kg |
| Center Axle - Loaded | 51317 lb / 23277 kg |
| Rear Axle - Loaded | 51074 lb / 23167 kg |
| Total - Loaded | 152593 lb / 69215 kg |
| Body Plate | |
|---|---|
| Type | High strength Brinell HB450 wear resistant steel |
| Body Plate Thickness | |
|---|---|
| Front Plate | 0.28 in / 7 mm |
| Base Plate | 0.51 in / 13 mm |
| Side Plates | 0.43 in / 11 mm |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 145.3 gal (US) / 550 l |
| Cooling System | 23.7 gal (US) / 90 l |
| Brake Cooling Tank | 17.7 gal (US) / 67 l |
| Steering/Hoist Hydraulic System | 36.9 gal (US) / 140 l |
| Engine Crankcase | 13.7 gal (US) / 52 l |
| Transmission - OTG | 19.8 gal (US) / 75 l |
| Final Drive - Each | 1.3 gal (US) / 5 l |
| Axles - Each | 15.8 gal (US) / 60 l |
| DEF Tank | 6.5 gal (US) / 25 l |

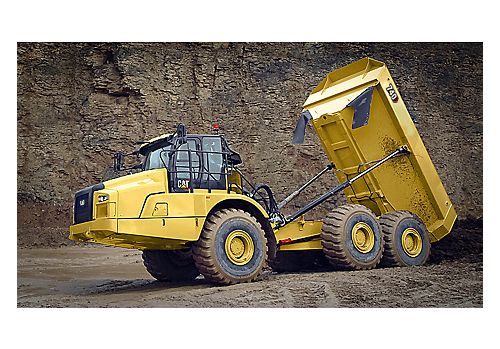

| Body Hoist | |
|---|---|
| Raise Time | 12 s |
| Lower Time | 12 s |
| Standards | |
|---|---|
| Brakes | ISO 3450 – 2011 |
| Cab - FOPS | ISO 3449 Level II – 2005 |
| Cab - ROPS | ISO 3471 – 2008 |
| Steering | ISO 5010 – 2019 |
| Turning Circle | |
|---|---|
| Turning Dimensions - Steer Angle - Left/Right | 45° |
| Turning Dimensions - SAE Turning Radius | 303 in / 7698 mm |
| Turning Dimensions - Clearance Radius | 330 in / 8395 mm |
| Turning Dimensions - Inside Radius | 156 in / 3960 mm |
| Turning Dimensions - Aisle Width | 220 in / 5595 mm |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. |
| Steering | |
|---|---|
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Optimal Loader/Truck Pass Matching | |
|---|---|
| Hydraulic Excavator: 374 - Passes | 3-4 |
| Hydraulic Excavator: 352 - Passes | 5-6 |
| Wheel Loader: 972 - Passes | 3 |
| Wheel Loader: 966 - Passes | 4-5 |
| Wheel Loader: 962 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
