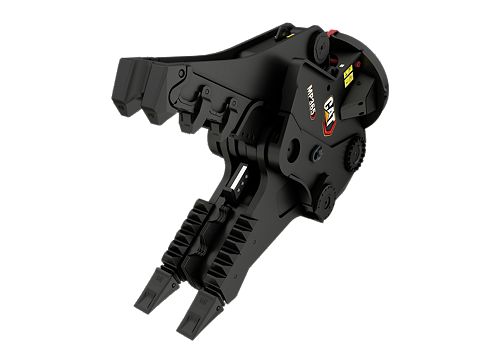

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 2.1 s |
| Cycle Time - Close | 1.6 s |
| Crushing Force - Primary Cutter | 808 Sh Ton / 7193 kN |
| Crushing Force - Cutter Tip | 411 Sh Ton / 3655 kN |
| Crushing Force - Tooth Tip | 222 Sh Ton / 1977 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 5076 psi / 350 bar |
| Jaw Circuit - Max. Oil Flow | 119 gal/min / 450 l/min |
| Rotation Circuit - Max. Oil Pressure | 2321 psi / 160 bar |
| Rotation Circuit - Max. Oil Flow | 13 gal/min / 50 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 42.9 in / 1089 mm |
| Cutter Length | 8.9 in / 225 mm |
| Jaw Opening - Maximum | 62.4 in / 1584 mm |
| Jaw Width - Fixed | 25.9 in / 659 mm |
| Jaw Width - Moveable | 16.8 in / 427 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 113 in / 2869 mm |
| Height | 98.1 in / 2491 mm |
| Width | 43.3 in / 1100 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 13547 lb / 6145 kg |
| Weight - Jaw Only | 6753 lb / 3063 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 65 tons |
| Excavator Maximum | 90 tons |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 374 - Tier 4 | 484 HP / 361 kW | 162900 lb / 73890 kg | 28.1 ft / 8570 mm |
| 395 - Tier 4 | 542 HP / 404 kW | 207400 lb / 94000 kg | 31.9 ft / 9670 mm |
| 352 | 443 HP / 330 kW | 107800 lb / 48900 kg | 26.11 ft / 8210 mm |
| Model | Engine Model | Net Flywheel Power | Operating Weight |
|---|---|---|---|
| 324D L | Cat® C7 ACERT™ | 188 HP / 140 kW | 54660 lb / 24790 kg |
