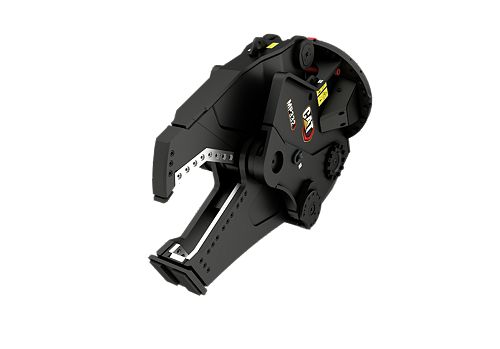

MP332 Shear Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.3 s
- Cutting Force - Blade Throat
- 886.9 Sh Ton / 7890 kN

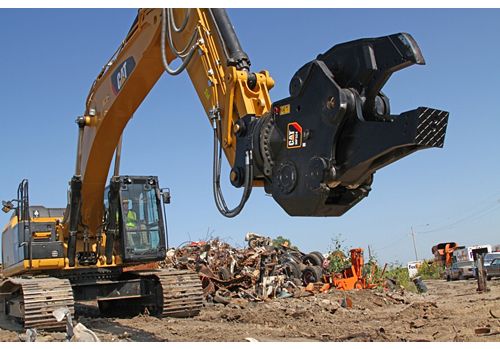

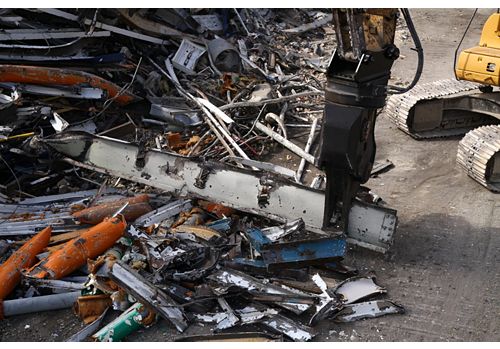

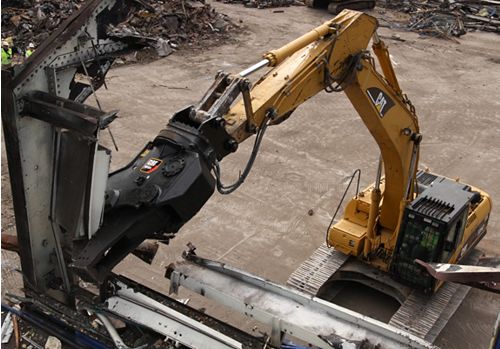

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.3 s |
| Cutting Force - Blade Throat | 886.9 Sh Ton / 7890 kN |
| Cutting Force - Blade Center | 351.1 Sh Ton / 3124 kN |
| Cutting Force - Blade Tip | 185.7 Sh Ton / 1652 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 74 gpm / 280 L/min |
| Rotation Circuit - Max. Oil Pressure | 2321 psi / 16000 kPa |
| Rotation Circuit - Max. Oil Flow | 10.6 gpm / 40 L/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 26.7 in / 677 mm |
| Cutter Length | 22.5 in / 572 mm |
| Jaw Opening - Maximum | 18.5 in / 471 mm |
| Jaw Width - Fixed | 13 in / 330 mm |
| Jaw Width - Moveable | 4.5 in / 115 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Width | 39.6 in / 1005 mm |
| Length | 84.5 in / 2146 mm |
| Height | 63.6 in / 1615 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 7023.9 lb / 3186 kg |
| Weight - Jaw Only | 2899.1 lb / 1315 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 32 tons |
| Excavator Maximum | 50 tons |
