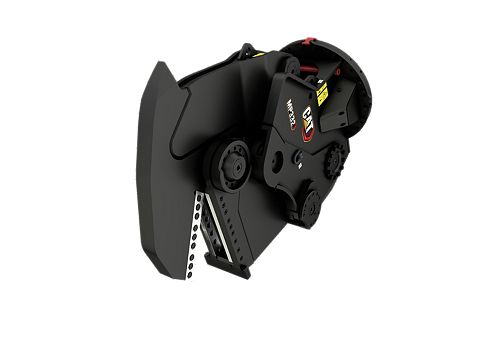

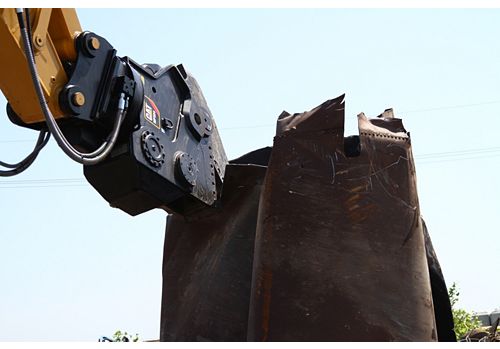

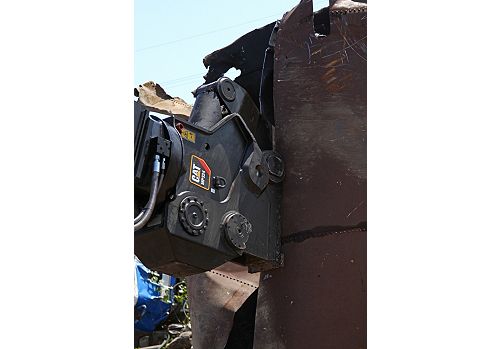

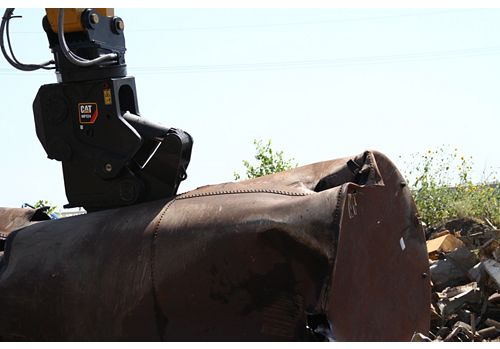

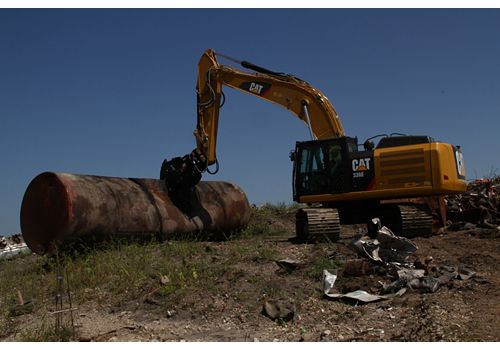

MP332 Tank Shear

Cycle Time - Open: 1.9 s
Cycle Time - Close: 1.3 s
Cutting Force - Blade Tip: 792 Sh Ton / 7048 kN

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Loan Calculator Credit Application

Build & Quote

MP332 Multi-Processor Key Features Multi-Processor Brochure Multi-Processors Technical Specifications

Specifications
Related Products

Performance
Cycle Time - Open	1.9 s
Cycle Time - Close	1.3 s
Cutting Force - Blade Tip	792 Sh Ton / 7048 kN
Cutting Force - Blade Center	342 Sh Ton / 3045 kN
Cutting Force - Blade Throat	217 Sh Ton / 1934 kN

Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure	5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow	74 gal/min / 280 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi / 160 bar
Rotation Circuit - Max. Oil Flow	11 gal/min / 40 l/min

Dimensions - Jaw
Jaw Depth	20.5 in / 521 mm
Cutter Length	23.6 in / 600 mm
Jaw Opening - Maximum	20.5 in / 521 mm
Jaw Width - Fixed	15.4 in / 390 mm
Jaw Width - Moveable	4.7 in / 120 mm

Dimensions - Housing + Jaw
Width	86.6 in / 2200 mm
Length	77.5 in / 1969 mm
Height	39.6 in / 1005 mm

Weight
Weight - Housing, Jaw and Bracket	8150 lb / 3697 kg
Weight - Jaw Only	4026 lb / 1826 kg

Recommended Carrier Weight
Excavator Minimum	32 tons
Excavator Maximum	50 tons

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm
340 - Tier 4 / Stage V	346 hp / 258.3 kW	83100 lb / 37700 kg	26.9 ft / 8210 mm
350 - Tier 4 / Stage V	413 hp / 308 kW	105100 lb / 46000 kg	26.11 ft / 8210 mm
352	443 hp / 330 kW	107800 lb / 48900 kg	26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
