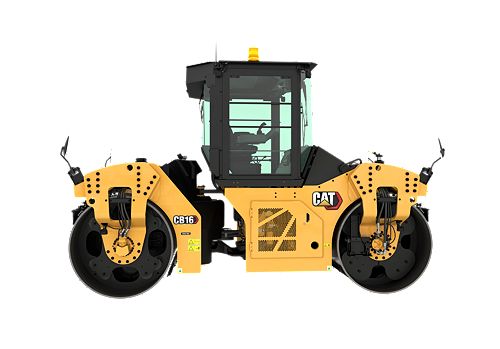

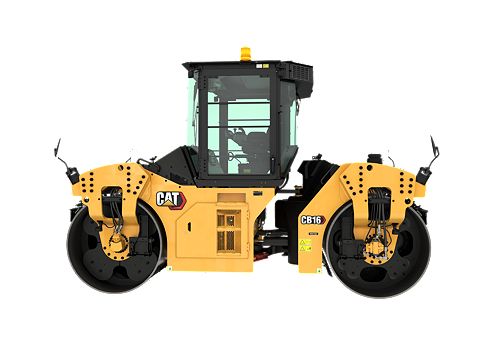

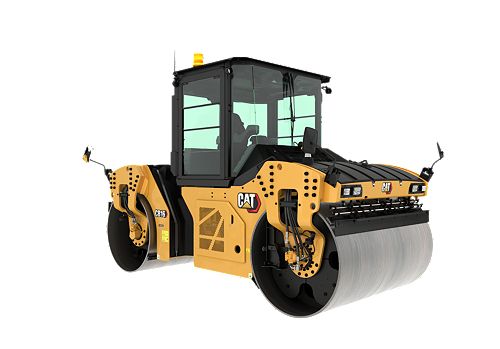

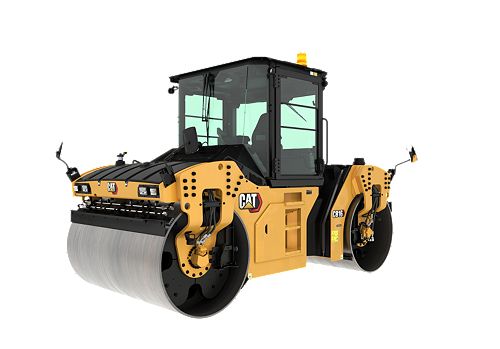

CB16

Standard - Operating Weight: 31941 lb / 14488 kg
Standard Compaction Width: 84 in / 2130 mm
Static Linear Load: 204 lb/in / 36 kg/cm

The CB16 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degreeseating make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.

Loan Calculator Credit Application

Build & Quote

Key Features Paving Product Line Brochure Paving Application Guides and eBooks

Specifications
Equipment
Related Products

Weights
Standard - Operating Weight	31941 lb / 14488 kg
Maximum Operating Weight	34255 lb / 15538 kg
Static Linear Load	204 lb/in / 36 kg/cm

Operating Specifications
Standard Compaction Width	84 in / 2130 mm
Drum Offset	6 in / 170 mm
Curb Clearance	28 in / 723 mm
Ground Clearance	11.5 in / 292 mm

Engine
Engine Model	Cat C4.4
Gross Power	142 hp / 106 kW

Travel Speeds
High	8 mile/h / 13 km/h
Low	4.5 mile/h / 7 km/h

Dimensions
Overall Length	15.5 ft / 4742 mm
Wheel Base	11.25 ft / 3450 mm
Height - With ROPS/FOPS	10 ft / 3068 mm
Overall Width	92 in / 2325 mm

Vibratory System
Centrifugal Force per Drum - Maximum	31069 lb / 138.2 kN
Centrifugal Force per Drum - Minimum	12409 lb / 55.2 kN
Maximum Amplitude	0.041 in / 1.03 mm
Minimum Amplitude	0.01 in / 0.3 mm
Maximum Frequency	3800 VPM / 63 Hz
Minimum Frequency	2520 VPM / 42 Hz
Vibration Selection	Independent per drum, front only, rear only, both

Service Refill Capacities
Fuel Tank Capacity	66 gal (US) / 250 l
Water Spray Tank Capacity	264 gal (US) / 1000 l

Standard Equipment

Operating Environment
- 180 degree seat positioning with sliding station
- Adjustable armrests
- Platform ROPS/FOPS
- Propel lever with 4-button control
- Steering wheel - fixed position, left side
- Suspension seat - no heat
- 76 mm (3 in) high visibility seatbelt
- Vandalism protection
Technology
- Product Link™ PLE743
- Remote Flash
- Remote Troubleshooting
Powertrain
- Cat C4.4, 4-cylinder
Electrical System
- 150 amp alternator
- 12-volt charging system
- Automotive-type fuse system
- Maintenance-free batteries
- Cat Electronic Technician (Cat ET)
- Remote start/charge receptacle
Service and Maintenance
- Maintenance-free Hitch
- 3 yr/3000 hr conventional vibratory system service interval
- 2 yr/2000 hr oscillatory vibration system service interval
- Grouped filters with ground level access
- Remote access drains
- Sampling ports for Scheduled Oil Sampling
- Site gauges
Safety
- Backup Alarm
- Warning horn (front & rear)
- LED Working Lights
- Steps, front drum fuel refill
- Warning, LED safety beacons

Optional Equipment

Operating Environment
- 360 degree seat positioning with sliding station
- Steering wheel - elevated position, left side
- Suspension seat w/ heat
- Seat headrest
Technology
- Infrared asphalt temperature sensors
- CMV accelerometer - front drum
- GNSS Mapping - temperature and passcount
- Machine to machine communication
- Product Link PLE783
Powertrain
- Offset hitch
Vibratory System
- Biodegradeable hydraulic oil
- Five amplitude vibratory system
- Two amplitude/two frequency vibratory system
- Versa Vibe™ vibratory system
- Two amplitude/two frequency w/Oscillation vibratory system
- Versa Vibe w/Oscillation vibratory system
- Cocoa mats
- Mats - water distribution
- Freeze protection - water spray system
- Rear drum oscillation kit - field installed drum
Safety
- LED Working Lights with turn signals
- LED Roading Lights
- Mirror package
- Steps, rear drum water spray refill

Compact

Cat® Compact technologies combine advanced compaction measurement, in-cab guidance and reporting capabilities to help you consistently meet compaction targets faster, more uniformly, and in fewer passes—saving on fuel and reducing rework and material costs in both soil and asphalt applications.

Model
Cat Compact with Temperature Indication
Cat Compact with Compaction Meter Value (CMV)

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®
