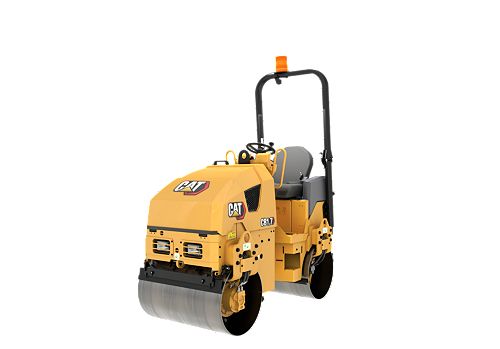

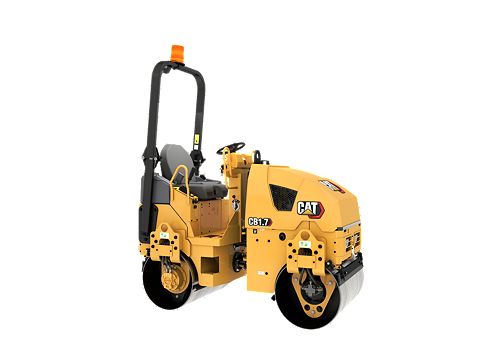

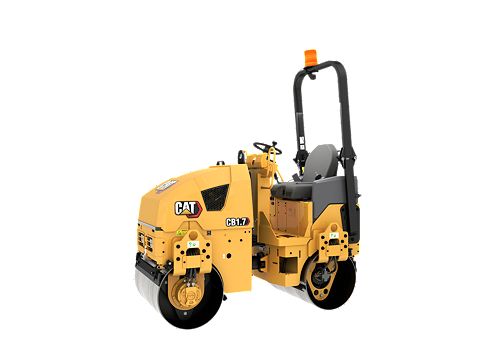

CB1.7

Weights
Operating Weight	3538 lb / 1605 kg

Operating Specifications
Standard Compaction Width	35 in / 900 mm
Curb Clearance	16 in / 403 mm
Ground Clearance	10 in / 251 mm
Travel Speed - Maximum	5.3 mile/h / 8.6 km/h
Static Linear Load	72 lb/in / 9.4 kg/cm

Engine
Gross Power	24.7 HP / 18.4 kW
Engine Model	Cat C1.1

Dimensions
Overall Length	80 in / 2040 mm
Overall Width	40 in / 1012 mm
Maximum Machine Height	94.5 in / 2400 mm
Drum Width	35 in / 900 mm
Drum Diameter	22.5 in / 575 mm

Vibratory System
Frequency	3420 V/m / 57 Hz
Nominal Amplitude - High	0.019 in / 0.5 mm
Centrifugal Force per Drum - Maximum	3057 lb / 13.6 kN

Service Refill Capacities
Fuel Tank Capacity	7.9 gal (US) / 30 l
Water Spray Tank Capacity	38 gal (US) / 145 l

Standard Equipment

Operator Environment
- ROPS Folding
- Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
- Dual 12-volt Power Outlet
- Horn, Backup Alarm
Compaction System
- Folding Scrapers
- Vibe Selection - Front, Rear, or Both
- Pressurized, Triple-Filtration Spray System
Powertrain
- Air Cleaner, Dual Element
- Engine Belt Guard
Technology
- ProductLinkTM
Electrical
- Working Lights
Other
- Vandal Protection - Lockable Hood and Controls Cover
- Machine Life and Tiedowns

Optional Equipment

Operator Environment
- Adjustable Suspension Seat w/ Operator Presence Switch
- ROPS Fixed
Electrical
- Battery Disconnect
- Roading Lights
- Rotating Amber Beacon
- Light Guards
Other
- Single Point Lift

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.
