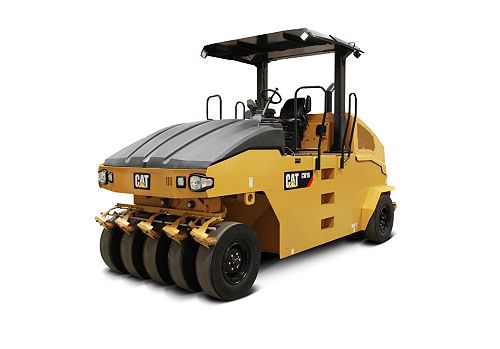

CW16 11-Wheel
- Operating Weight - 11 Wheel Base Machine
- 11685 lb / 5300 kg
- Operating Weight - 11 Wheel with Maximum Ballast
- 32849 lb / 14900 kg
- 11 Wheel Compaction Width with Bias Tire
- 84 in / 2132 mm
The Cat® CW16 with 11 wheels offers an operating weight range of 5300 kg to 14 900 kg (11,685 lb - 32,849 lb) for excellent versatility and performance. Equipped with an efficient Cat engine, this machine delivers smooth, reliable performance on grades and soft base materials.
| Weights | |
|---|---|
| Operating Weight - 11 Wheel Base Machine | 11685 lb / 5300 kg |
| Operating Weight - 11 Wheel with Maximum Ballast | 32849 lb / 14900 kg |
| Load per Wheel - 11 Wheel Base Machine | 1058 lb / 480 kg |
| Load per Wheel - 11 Wheel with Maximum Ballast | 2976 lb / 1350 kg |
| Operating Specifications | |
|---|---|
| 11 Wheel Compaction Width with Bias Tire | 84 in / 2132 mm |
| Travel Speed - Maximum | 12 mile/h / 19 km/h |
| Ground Clearance | 10.5 in / 267 mm |
| Turning Radius - Outside | 255 in / 6455 mm |
| 11 Wheel Compaction Width with Radial Tire | 83 in / 2103 mm |
| Inside Turn Radius - 11 Wheel | 133 in / 3378 mm |
| Engine | |
|---|---|
| Gross Power | 100.5 hp / 75 kW |
| Engine Model | C3.4B or C4.4 |
| Dimensions | |
|---|---|
| Height - ROPS | 9.8 ft / 3000 mm |
| Overall Length | 14.1 ft / 4290 mm |
| Height - Steering Wheel | 91 in / 2320 mm |
| Service Refill Capacities | |
|---|---|
| Water Spray Tank Capacity | 92 gal (US) / 348 l |
| Fuel Tank Capacity | 38 gal (US) / 146 l |
