CW34
- Operating Weight - Standard Machine Empty
- 22050 lb / 10000 kg
- Operating Weight - Maximum Ballast
- 59525 lb / 27000 kg
- Compaction Width
- 82 in / 2090 mm

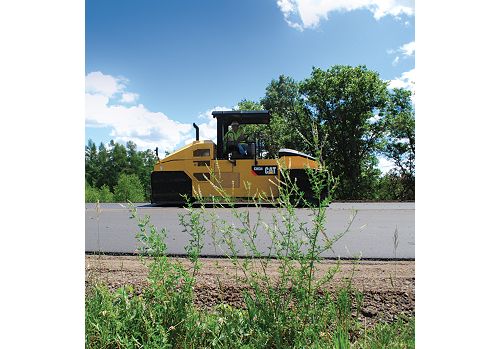

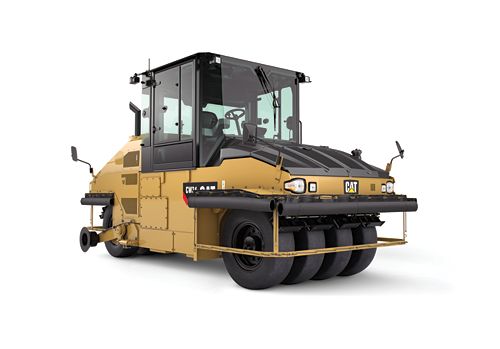

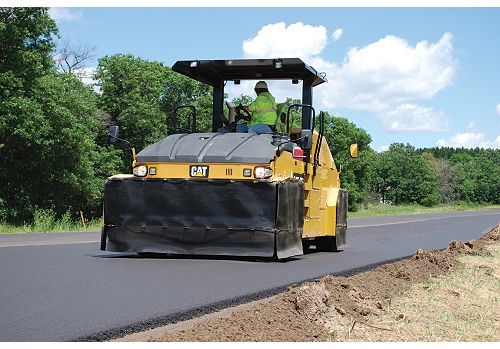

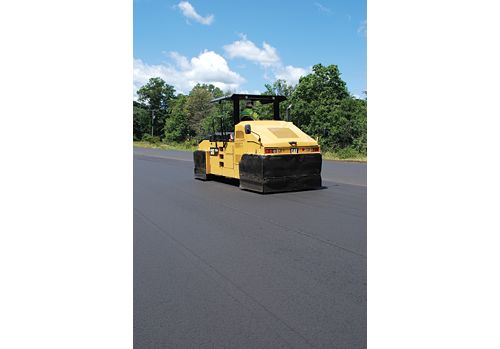

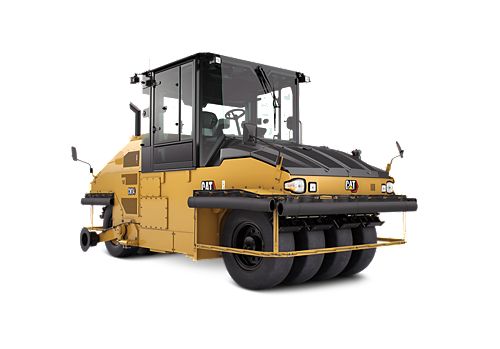

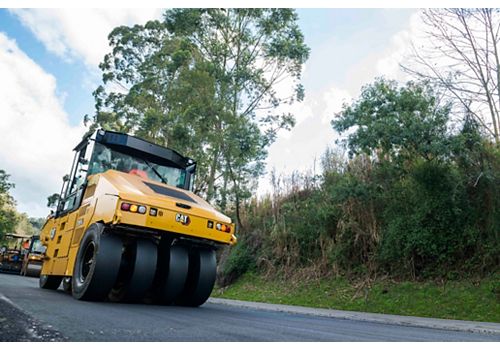

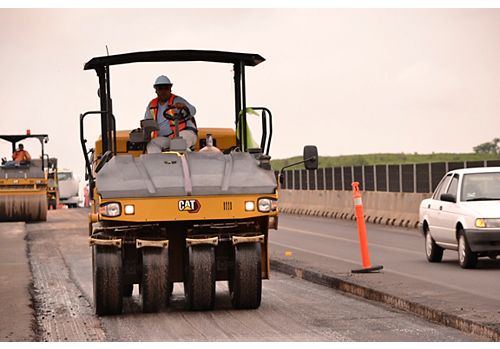

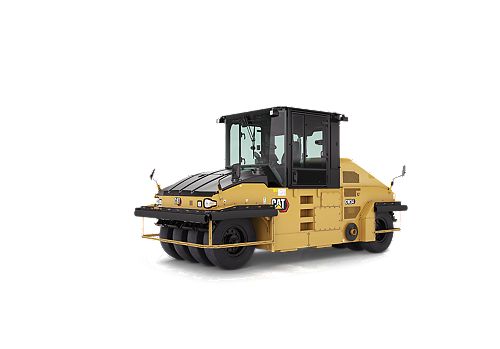

The CW34 is an eight wheel pneumatic roller that features a modular ballast system and flexible operating weight of 10 000 kg to 27 000 kg (22,050 lb - 59,525 lb). This machine offers excellent visibility, ECO-mode operation, even compaction, and excels on a variety of materials due to its flexible air-on-the-run capability.
| Weights | |
|---|---|
| Operating Weight - Standard Machine Empty | 22050 lb / 10000 kg |
| Operating Weight - Maximum Ballast | 59525 lb / 27000 kg |
| Operating Weight - Maximum Wet Sand Ballast | 35275 lb / 16000 kg |
| Average Weight per Wheel | 3571 lb / 1620 kg |
| Operating Weight - No Ballast | 22050 lb / 10000 kg |
| Operating Weight - Maximum Water Ballast | 28660 lb / 13000 kg |
| Average Weight per Wheel - No Ballast | 2755 lb / 1250 kg |
| Average Weight per Wheel - Maximum Ballast | 7451 lb / 3380 kg |
| Operating Specifications | |
|---|---|
| Compaction Width | 82 in / 2090 mm |
| Turning Radius - Inside (2) | 20 ft / 6.1 m |
| Rolling Width | 82 in / 2090 mm |
| Turning Radius - Outside | 342 in / 8700 mm |
| Ground Clearance | 10 in / 260 mm |
| Travel Speed - Maximum | 12 mile/h / 19 km/h |
| Turning Radius - Inside (1) | 240 in / 6100 mm |
| Number of Wheels | 8 |
| Engine | |
|---|---|
| Bore | 4.13 in / 105 mm |
| Stroke | 5 in / 127 mm |
| Gross Power | 133 hp / 98 kW |
| Engine Model | C4.4 |
| Dimensions | |
|---|---|
| Overall Width | 85 in / 2160 mm |
| Height - Steering Wheel | 96 in / 2450 mm |
| Height - ROPS | 118 in / 3000 mm |
| Overall Length | 210 in / 5350 mm |
| Maximum Machine Height | 118 in / 3000 mm |
| Tires | |
|---|---|
| Tires | 13/80 R20 |
| Service Refill Capacities | |
|---|---|
| Water Spray Tank Capacity | 100 gal (US) / 380 l |
| Fuel Tank Capacity | 71 gal (US) / 270 l |
