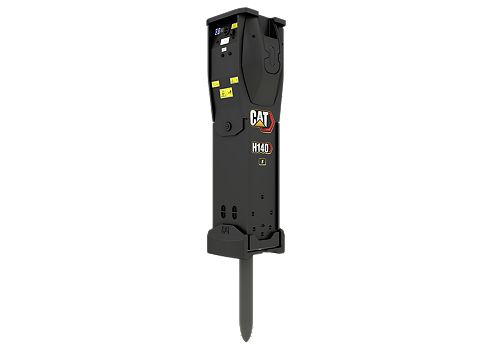

H140 S

Minimum Operating Weight: 5302 lb / 2410 kg
Rated Flow - Minimum: 42 gal/min / 160 l/min
Rated Flow - Maximum: 61 gal/min / 230 l/min

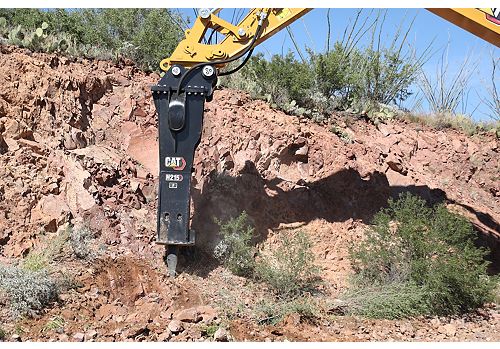

Cat® H140 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H140 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H140 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	325 to 540
Minimum Operating Weight	5302 lb / 2410 kg
Rated Flow - Minimum	42 gal/min / 160 l/min
Rated Flow - Maximum	61 gal/min / 230 l/min
Minimum Operating Pressure	1885 psi / 13000 kPa
Maximum Operating Pressure	2320 psi / 16000 kPa
Tool Shaft Diameter	5.5 in / 140 mm
Minimum Carrier Weight	52900 lb / 24 t
Maximum Carrier Weight	92600 lb / 42 t

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm
340 - Tier 4 / Stage V	346 hp / 258.3 kW	83100 lb / 37700 kg	26.9 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
323 - Tier 4 / Stage V	172 hp / 128.5 kW	55100 lb / 25000 kg	22.1 ft / 6730 mm
326 - Tier 4 / Stage V	201 hp / 149.8 kW	56400 lb / 25600 kg	22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
