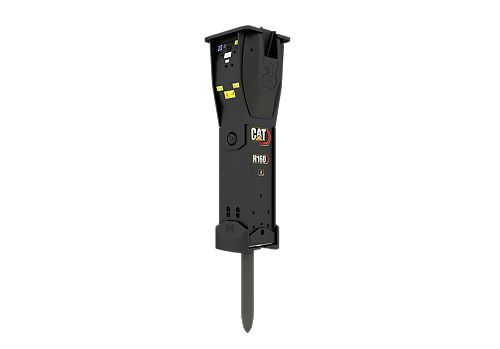

H160 S

Minimum Operating Weight: 7106 lb / 3230 kg
Rated Flow - Minimum: 58 gal/min / 220 l/min
Rated Flow - Maximum: 79 gal/min / 300 l/min

Cat® H160 S Performance hammers are designed for productivity in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H160 S Performance hammers help increase overall productivity and reduce maintenance costs. Cat H160 S Performance hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application

Build & Quote

Cat Performance Hammers - Product Brochure (N Am, Europe, Aus-NZ) Cat Performance Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia) Cat Performance Hammers - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, Japan, N Am, S Am, SE Asia)

Specifications
Related Products

Product Specifications
Blows per Minute	400 to 505
Minimum Operating Weight	7106 lb / 3230 kg
Rated Flow - Minimum	58 gal/min / 220 l/min
Rated Flow - Maximum	79 gal/min / 300 l/min
Minimum Operating Pressure	1885 psi / 13000 kPa
Maximum Operating Pressure	2320 psi / 16000 kPa
Tool Shaft Diameter	6.3 in / 160 mm
Minimum Carrier Weight	70600 lb / 32 t
Maximum Carrier Weight	121300 lb / 55 t

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
