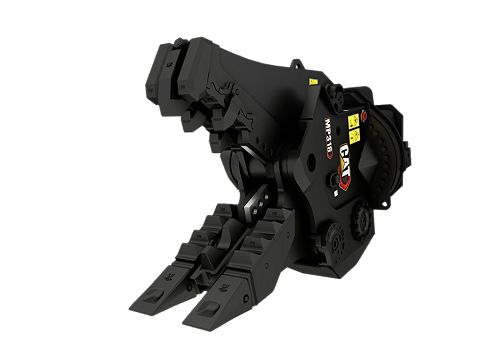

MP318 Pulverizer Jaw

Heavy Equipment

MP318 Pulverizer Jaw

Cycle Time - Open
1.6 s
Cycle Time - Close
1 s
Crushing Force - Tooth Tip
88 Sh Ton / 781 kN

MP318 Pulverizer Jaw

Performance
Cycle Time - Open 1.6 s
Cycle Time - Close 1 s
Crushing Force - Tooth Tip 88 Sh Ton / 781 kN
Crushing Force - Cutter Tip 127 Sh Ton / 1131 kN
Crushing Force - Primary Cutter 289 Sh Ton / 2570 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow 40 l/min / 150 gal/min
Rotation Circuit - Max. Oil Pressure 2031 psi / 140 bar
Rotation Circuit - Max. Oil Flow 11 gal/min / 40 l/min
Dimensions - Jaw
Jaw Depth 26 in / 666 mm
Cutter Length 8 in / 200 mm
Jaw Opening - Maximum 32 in / 824 mm
Jaw Width - Fixed 19 in / 480 mm
Jaw Width - Moveable 12 in / 300 mm
Dimensions - Housing + Jaw
Length 79 in / 2006 mm
Height 51 in / 1307 mm
Width 31 in / 793 mm
Weight
Weight - Housing, Jaw and Bracket 4579 lb / 2077 kg
Weight - Jaw Only 1907 lb / 865 kg
