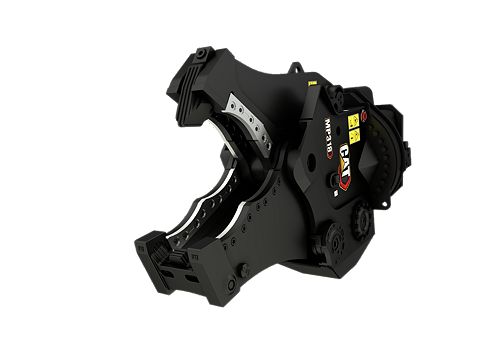

MP318 Universal Jaw
- Cycle Time - Open
- 1.6 s
- Cycle Time - Close
- 1 s
- Crushing Force - Primary Cutter
- 299 Sh Ton / 2661 kN

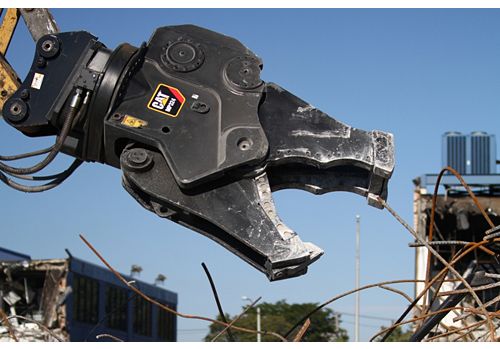

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.6 s |
| Cycle Time - Close | 1 s |
| Crushing Force - Primary Cutter | 299 Sh Ton / 2661 kN |
| Crushing Force - Cutter Tip | 167 Sh Ton / 1489 kN |
| Crushing Force - Tooth Tip | 96 Sh Ton / 855 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 5076 psi / 350 bar |
| Jaw Circuit - Max. Oil Flow | 40 gal/min / 150 l/min |
| Rotation Circuit - Max. Oil Pressure | 2031 psi / 140 bar |
| Rotation Circuit - Max. Oil Flow | 11 gal/min / 40 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 22.2 in / 565 mm |
| Cutter Length | 15.7 in / 400 mm |
| Jaw Opening - Maximum | 18.2 in / 462 mm |
| Jaw Width - Fixed | 15 in / 380 mm |
| Jaw Width - Moveable | 8.4 in / 214 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 78.9 in / 2003 mm |
| Height | 50.2 in / 1274 mm |
| Width | 31.2 in / 793 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 4352 lb / 1974 kg |
| Weight - Jaw Only | 1682 lb / 763 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 18 tons |
| Excavator Maximum | 25 tons |

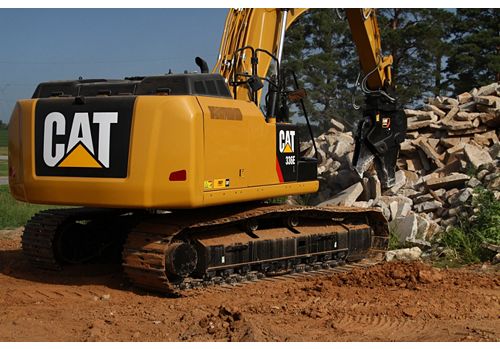

Medium Excavators
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 320 GC - Tier 4 / Stage V | 146 hp / 109 kW | 48500 lb / 22000 kg | 22 ft / 6720 mm |
| 320 - Tier 4 / Stage V | 172 hp / 128.5 kW | 49800 lb / 22600 kg | 22 ft / 6720 mm |
| 323 - Tier 4 / Stage V | 172 hp / 128.5 kW | 55100 lb / 25000 kg | 22.1 ft / 6730 mm |
| 325 - Tier 4 / Stage V | 172 hp / 128.5 kW | 62800 lb / 28500 kg | 22 ft / 6700 mm |
| 326 - Tier 4 / Stage V | 201 hp / 149.8 kW | 56400 lb / 25600 kg | 22.4 ft / 6820 mm |
| 330 GC - Tier 4 / Stage V | 201 hp / 150 kW | 68100 lb / 30900 kg | 23.8 ft / 7260 mm |
| 330 - Tier 4 / Stage V | 273 hp / 203.7 kW | 69200 lb / 31400 kg | 23.9 ft / 7240 mm |
| 335 - Tier 4 / Stage V | 273 hp / 203.7 kW | 77000 lb / 34900 kg | 22.9 ft / 6990 mm |
