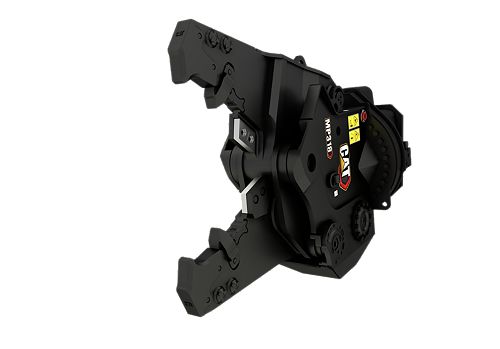

MP318 Demolition Jaw

Heavy Equipment

MP318 Demolition Jaw

Cycle Time - Open
1.6 s
Cycle Time - Close
1 s
Crushing Force - Primary Cutter
302 Sh Ton / 2687 kN

MP318 Demolition Jaw

Performance
Cycle Time - Open 1.6 s
Cycle Time - Close 1 s
Crushing Force - Primary Cutter 302 Sh Ton / 2687 kN
Crushing Force - Cutter Tip 135 Sh Ton / 1203 kN
Crushing Force - Tooth Tip 93 Sh Ton / 824 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow 150 gal/min / 40 l/min
Rotation Circuit - Max. Oil Pressure 140 bar / 2031 psi
Rotation Circuit - Max. Oil Flow 40 l/min / 11 gal/min
Dimensions - Jaw
Jaw Depth 25 in / 645 mm
Cutter Length 6 in / 150 mm
Jaw Opening - Maximum 29 in / 736 mm
Jaw Width - Fixed 5 in / 120 mm
Jaw Width - Moveable 5 in / 120 mm
Dimensions - Housing + Jaw
Length 76 in / 1935 mm
Height 54 in / 1368 mm
Width 31 in / 793 mm
Weight
Weight - Housing, Jaw and Bracket 4277 lb / 1944 kg
Weight - Jaw Only 1613 lb / 733 kg
