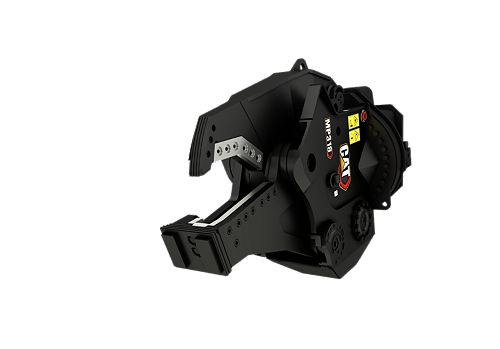

MP318 Shear Jaw
- Cycle Time - Open
- 1.6 s
- Cycle Time - Close
- 1 s
- Cutting Force - Blade Throat
- 451 Sh Ton / 4012 kN

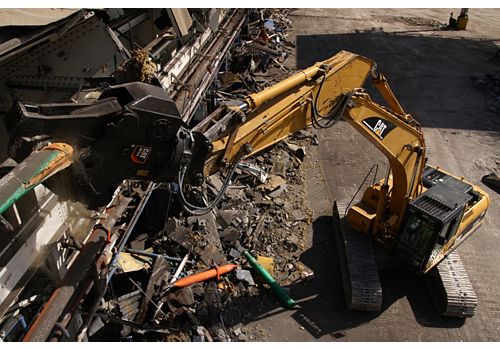

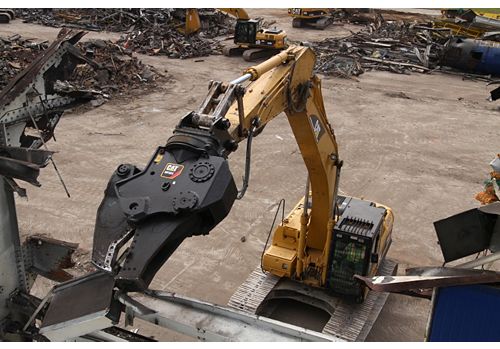

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.6 s |
| Cycle Time - Close | 1 s |
| Cutting Force - Blade Throat | 451 Sh Ton / 4012 kN |
| Cutting Force - Blade Center | 205 Sh Ton / 1827 kN |
| Cutting Force - Blade Tip | 114 Sh Ton / 1011 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 5076 psi / 350 bar |
| Jaw Circuit - Max. Oil Flow | 40 gal/min / 150 l/min |
| Rotation Circuit - Max. Oil Pressure | 2031 psi / 140 bar |
| Rotation Circuit - Max. Oil Flow | 11 gal/min / 40 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 19.3 in / 490 mm |
| Cutter Length | 15 in / 382 mm |
| Jaw Opening - Maximum | 13 in / 322 mm |
| Jaw Width - Fixed | 11.8 in / 300 mm |
| Jaw Width - Moveable | 3.5 in / 88 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Width | 74.7 in / 1897 mm |
| Length | 51.1 in / 1298 mm |
| Height | 31.2 in / 793 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 4131 lb / 1874 kg |
| Weight - Jaw Only | 1462 lb / 663 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 18 tons |
| Excavator Maximum | 25 tons |
