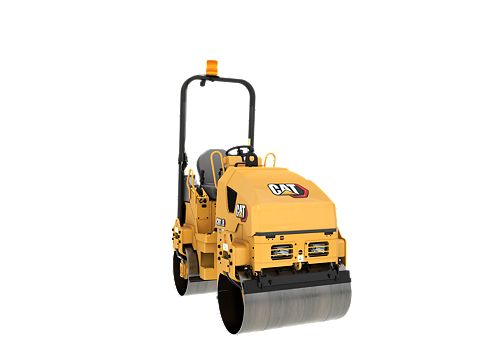

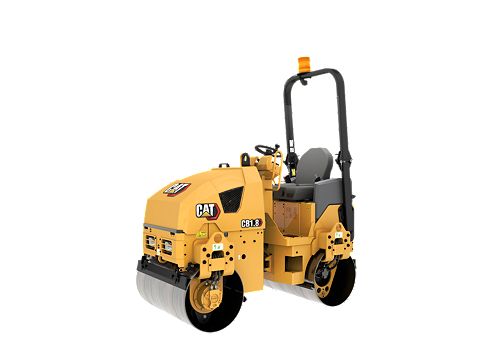

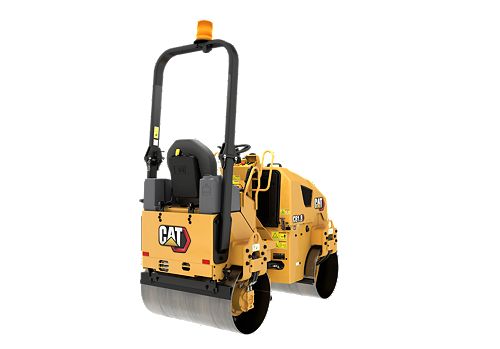

CB1.8

Weights
Operating Weight	3825 lb / 1735 kg

Operating Specifications
Standard Compaction Width	39 in / 1000 mm
Curb Clearance	16 in / 403 mm
Ground Clearance	10 in / 251 mm
Travel Speed - Maximum	5.3 mile/h / 8.6 km/h
Static Linear Load	63 lb/in / 9.1 kg/cm
Turning Radius - Inside Drum Edge	75 in / 1900 mm

Engine
Gross Power	24.7 HP / 18.4 kW
Engine Model	Cat C1.1

Dimensions
Overall Length	80 in / 2040 mm
Overall Width	44 in / 1112 mm
Drum Diameter	22.5 in / 575 mm
Drum Width	39 in / 1000 mm
Maximum Machine Height	94.5 in / 2400 mm

Vibratory System
Frequency	3420 V/m / 57 Hz
Nominal Amplitude - High	0.018 in / 0.47 mm
Centrifugal Force per Drum - Maximum	3057 lb / 13.6 kN

Service Refill Capacities
Fuel Tank Capacity	7.9 gal (US) / 30 l
Water Spray Tank Capacity	38 gal (US) / 145 l

Standard Equipment

Operator Environment
- ROPS Folding
- Operator Console w/ Emergency Stop, Simple Rocker Switches, and Machine Warning Indicator Lights
- Dual 12-volt Power Outlet
- Horn, Backup Alarm
Compaction System
- Folding Scrapers
- Vibe Selection - Front, Rear, or Both
- Pressurized, Triple-Filtration Spray System
Powertrain
- Air Cleaner, Dual Element
- Engine Belt Guard
Technology
- ProductLinkTM
Electrical
- Working Lights
Other
- Vandal Protection - Lockable Hood and Controls Cover
- Machine Life and Tiedowns

Optional Equipment

Operator Environment
- Adjustable Suspension Seat w/ Operator Presence Switch
- ROPS Fixed
Electrical
- Battery Disconnect
- Roading Lights
- Rotating Amber Beacon
- Light Guards
Other
- Single Point Lift
