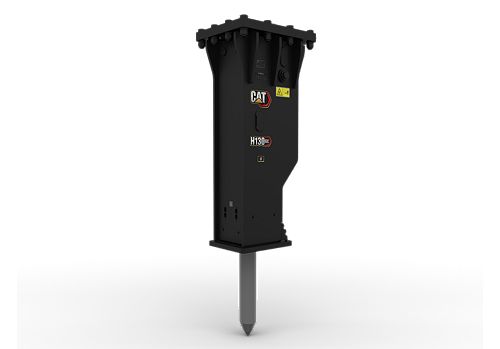

H130 GC S

Impact Energy Class
4425 ft-lb / 6000 J
Maximum Operating Weight
5471.4 lb / 2487 kg
Minimum Operating Weight
5392 lb / 2451 kg

Cat® Hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC S Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Loan Calculator Credit Application
Build & Quote
alt 1
GC S Hammers Key Features GC S Hammer Technical Specifications
Product Specifications
Impact Energy Class 4425 ft-lb / 6000 J
Blows per Minute 350-700
Maximum Operating Weight 5471.4 lb / 2487 kg
Minimum Operating Weight 5392 lb / 2451 kg
Maximum Carrier Weight 70547 lb / 32 t
Minimum Carrier Weight 55115 lb / 25 t
Tool Shaft Diameter -5.91 in / 150 mm
Maximum Operating Pressure 2610 psi / 18000 kPa
Minimum Operating Pressure 2320 psi / 16000 kPa
Rated Flow - Maximum 51 gal/min / 191 l/min
Rated Flow - Minimum 43 gal/min / 161 l/min

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Weight Interface Options: Top-Bottom
TRS23 Tiltrotator: 558-8925 23-30 ton Excavators 1764 lb / 800 kg S70 / S70
TRS23 Tiltrotator: 567-6085 23-30 ton Excavators 1900 lb / 862 kg Pin-on / S70
TRS23 Tiltrotator: 558-8926 23-30 ton Excavators 2066 lb / 937 kg S80 / S80
TRS23 Tiltrotator: 567-6086 23-30 ton Excavators 2083 lb / 945 kg Pin-on / S80

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
336 - Tier 4 300 HP / 223.5 kW 81100 lb / 36800 kg 26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 GC - Tier 4 / Stage V 146 HP / 109 kW 48500 lb / 22000 kg 22 ft / 6720 mm
320 - Tier 4 / Stage V 172 HP / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
323 - Tier 4 / Stage V 172 HP / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
325 - Tier 4 / Stage V 172 HP / 128.5 kW 62800 lb / 28500 kg 22 ft / 6700 mm
326 - Tier 4 / Stage V 201 HP / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V 201 HP / 150 kW 68100 lb / 30900 kg 23.8 ft / 7260 mm
330 - Tier 4 / Stage V 273 HP / 203.7 kW 69200 lb / 31400 kg 23.9 ft / 7240 mm
335 - Tier 4 / Stage V 273 HP / 203.7 kW 77000 lb / 34900 kg 22.9 ft / 6990 mm
