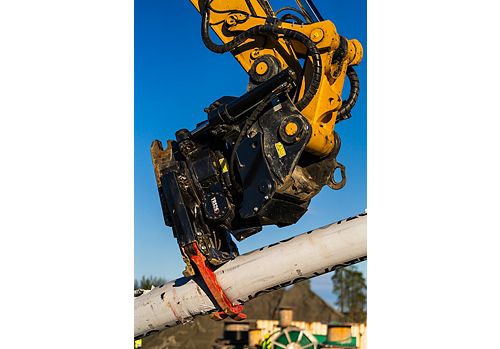

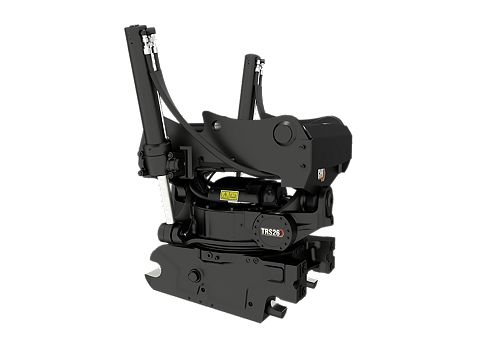

TRS26 Tiltrotator: 645-6931

Weight: 2535 lb / 1150 kg
Overall Height: 53 in / 1345 mm
Length: 37 in / 929 mm

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Loan Calculator Credit Application

Build & Quote

Tiltrotators Technical Specifications (Europe) Tiltrotators Technical Specifications (N Am, S Am) Tiltrotators Family Bi-Fold Brochure

Specifications
Related Products

Product Specifications
Machine Class	23-32 ton Excavators
Weight	2535 lb / 1150 kg
Interface Options: Top-Bottom	HCS80 / HCS80
Overall Height	53 in / 1345 mm
Length	37 in / 929 mm
Overall Width	48 in / 1223 mm
Rotation Speed	8 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right
Maximum Bucket Capacity	2.09 yd³ / 1.6 m³
Maximum Bucket Width	79 in / 2000 mm

GC Hammers

Cat® hammers make short work of your demolition, construction, and quarry needs. Combine the simple, lightweight design of the GC Hammer series with the reliability, durability, and value you expect from Cat products. The result is a low cost per hour solution providing the consistent power and performance you need.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H120 GC S	400 to 800	3849 lb / 1746 kg	33 gpm / 125 L/min
H130 GC S	350 to 700	5503 lb / 2496 kg	42 gal/min / 160 l/min

Performance Hammers

Cat® hydraulic hammers make short work of your demolition, construction, quarry and production breaking needs. Cat Hammers are high performance breakers, designed to help you get the most from your Cat excavators.

Model	Blows per Minute	Minimum Operating Weight	Rated Flow - Minimum
H120 S	350 to 620	3256 lb / 1480 kg	26 gpm / 100 L/min
H130 S	320 to 600	3850 lb / 1750 kg	32 gpm / 120 L/min

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
326 - Tier 4 / Stage V	201 hp / 149.8 kW	56400 lb / 25600 kg	22.4 ft / 6820 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm

Vibratory Plate Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Impulse Force	Cycles/Minimum	Base Plate Width
CVP110	24669 lb / 110 kN	2200	34 in / 864 mm
