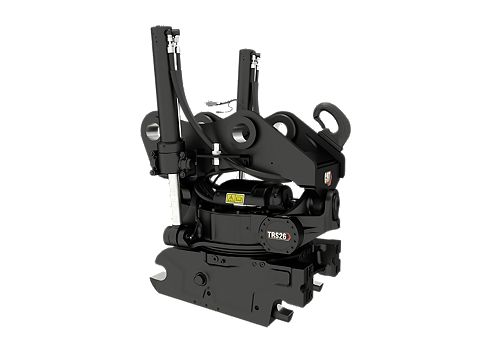

TRS26 Tiltrotator: 645-6932

Weight: 2394 lb / 1086 kg
Overall Height: 54 in / 1371 mm
Length: 39 in / 989 mm

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Loan Calculator Credit Application

Build & Quote

Tiltrotators Technical Specifications (Europe) Tiltrotators Technical Specifications (N Am, S Am) Tiltrotators Family Bi-Fold Brochure

Specifications
Related Products

Product Specifications
Machine Class	23-32 ton Excavators
Weight	2394 lb / 1086 kg
Interface Options: Top-Bottom	Pin-on / S80
Overall Height	54 in / 1371 mm
Length	39 in / 989 mm
Overall Width	37 in / 948 mm
Rotation Speed	8 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right
Maximum Bucket Capacity	2.09 yd³ / 1.6 m³
Maximum Bucket Width	79 in / 2000 mm
