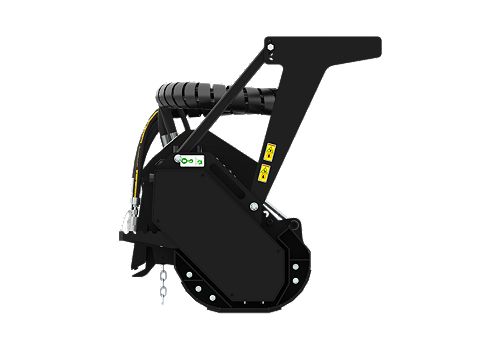

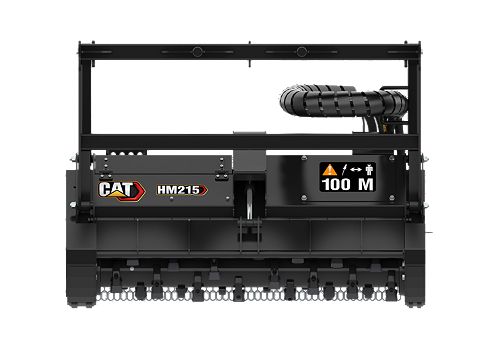

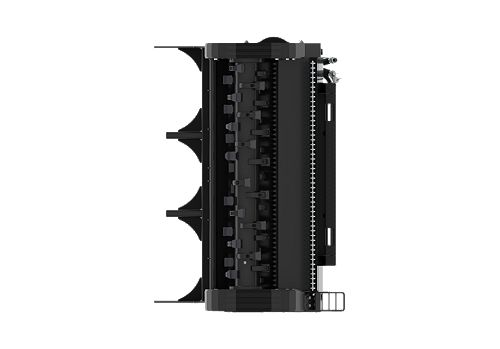

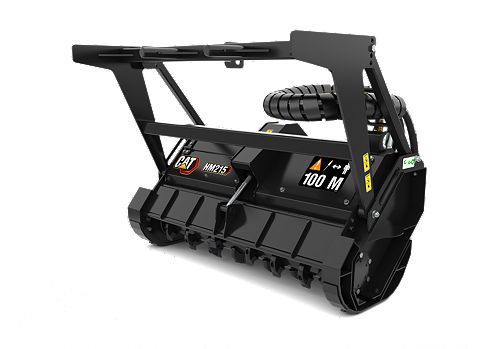

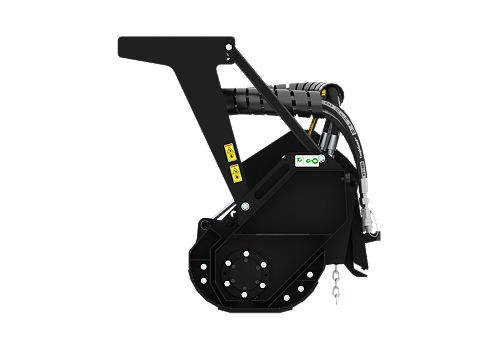

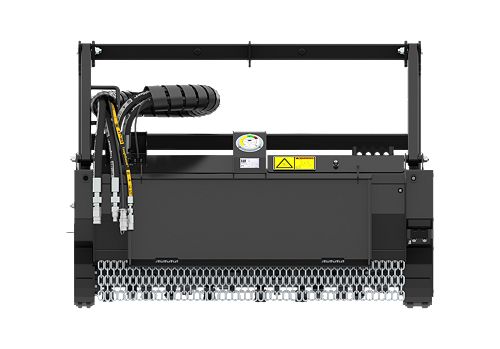

HM215
- Overall Width
- 69.2 in / 1758 mm
- Working Width
- 58.3 in / 1480 mm
- Length
- 48 in / 1219 mm

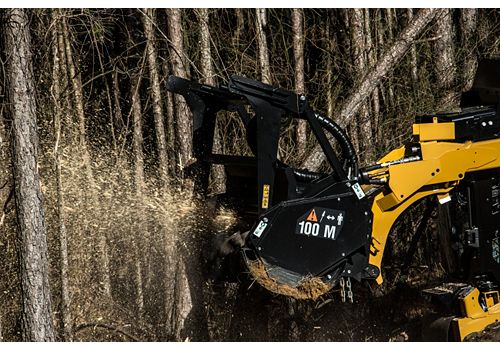

High-performance cutting and mulching of vegetation and overgrowth.
High-performance cutting and mulching of vegetation and overgrowth.
| Product Specifications | |
|---|---|
| Overall Width | 69.2 in / 1758 mm |
| Working Width | 58.3 in / 1480 mm |
| Length | 48 in / 1219 mm |
| Overall Height | 50.4 in / 1281 mm |
| Weight | 1803.4 lb / 818 kg |
| Drive Method | V-Belt |
| Motor | Axial Piston Dual Speed |
| Required Hydraulics | High Flow |
| Optimal Hydraulic Flow | 96-117 L/min (25-31 gpm) |
| Optimal Hydraulic Pressure | 200-230 bar (2900-3336 psi) |
| Drum Speed | 2480-3020 RPM |
| Fixed Teeth per Drum | 36 |
| Maximum Cutting Diameter | 7.9 in / 200 mm |
| Maximum Cutting Depth | 2.8 in / 70 mm |
| Model | Gross Power - SAE J1995 | Rated Operating Capacity | Operating Weight |
|---|---|---|---|
| 226D3 | 67.1 HP / 50.1 kW | 1550 lb / 705 kg | 5849 lb / 2653 kg |
| 232D3 | 67.1 HP / 50.1 kW | 1900 lb / 865 kg | 6514 lb / 2955 kg |
| 236D3 | 74.3 HP / 55.4 kW | 1800 lb / 820 kg | 6567 lb / 2979 kg |
| 242D3 | 74.3 HP / 55.4 kW | 2200 lb / 1000 kg | 7138 lb / 3238 kg |
