242D3

Gross Power - SAE J1995: 74.3 hp / 55.4 kW
Rated Operating Capacity: 2200 lb / 1000 kg
Operating Weight: 7138 lb / 3238 kg

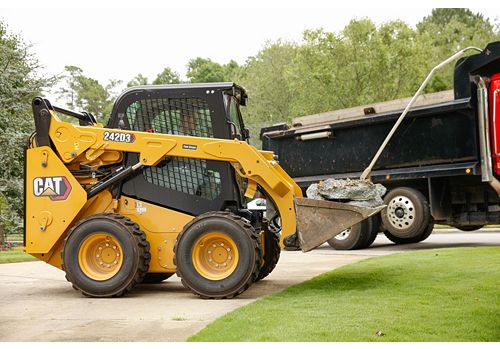

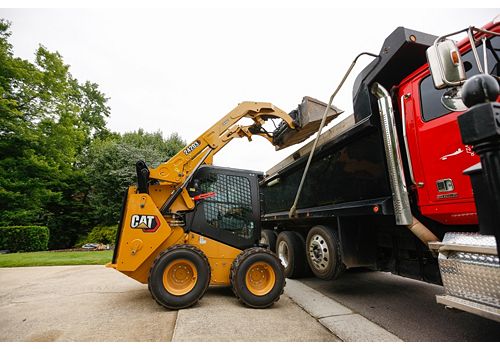

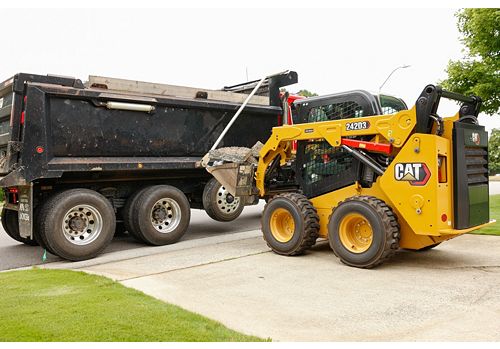

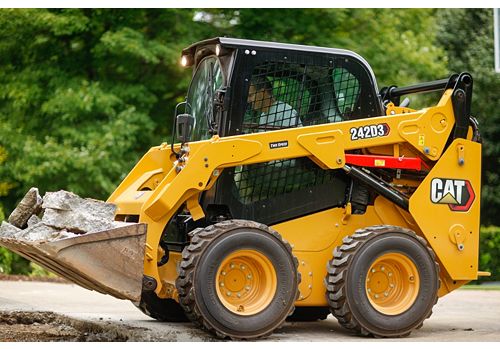

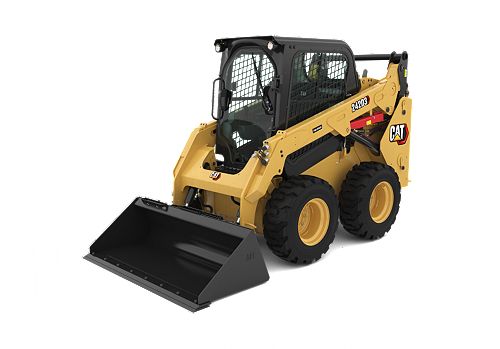

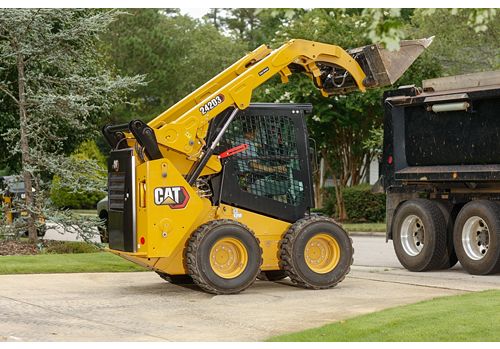

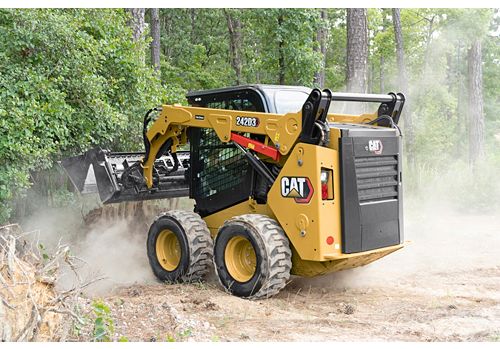

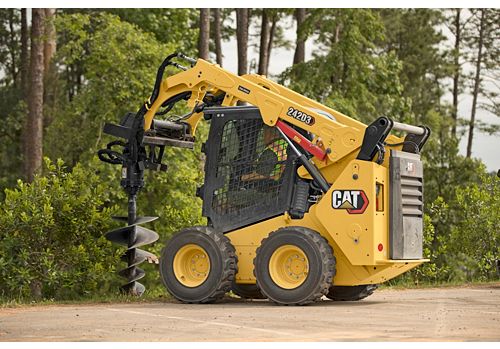

The Cat® 242D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Loan Calculator Credit Application

Build & Quote

242D3 Product Brochure Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D/D2/D3 Series 226D3/232D3/236D3/242D3/246D3/262D3/272D3/272D3 XE Product Brochure Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders

Specifications
Equipment
Related Products

Engine
Gross Power - SAE J1995	74.3 hp / 55.4 kW
Net Power - SAE 1349	73.2 hp / 54.6 kW
Displacement	203 in³ / 3.3 l
Stroke	4.7 in / 120 mm
Bore	3.7 in / 94 mm
Net Flywheel Power	73.2 hp / 54.6 kW
Peak Torque - 1,500 rpm - SAE J1995	195 ft·lbf / 265 N·m
Net Power - ISO 9249	73.9 hp / 55.1 kW
Engine Model	Cat C3.3B DIT (turbo)

Operating Specifications
Rated Operating Capacity	2200 lb / 1000 kg
Tipping Load	4400 lb / 2000 kg
Breakout Force - Tilt Cylinder	4963 lb / 2251 kg
Rated Operating Capacity with Optional Counterweight	2410 lb / 1095 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights
Operating Weight	7138 lb / 3238 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions
Wheel Base	43.5 in / 1105 mm
Height - Top of Cab	83.1 in / 2111 mm
Vehicle Width over Tires	66 in / 1676 mm
Ground Clearance	8.7 in / 222 mm
Departure Angle	27°
Maximum Dump Angle	52°
Turning Radius from Center - Coupler	51.8 in / 1314 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Bucket Pin Reach - Maximum Lift	7.2 in / 182 mm
Length - Without Bucket	108.9 in / 2767 mm
Bucket Pin Height - Maximum Lift	121.1 in / 3076 mm
Turning Radius from Center - Machine Rear	64.5 in / 1639 mm
Maximum Overall Height	154.2 in / 3917 mm
Bucket Pin Height - Carry Position	7.9 in / 200 mm
Length - With Bucket on Ground	137.3 in / 3487 mm
Turning Radius from Center - Bucket	83 in / 2107 mm
Reach - Maximum Lift/Dump	21.7 in / 552 mm
Maximum Reach - With Arms Parallel to Ground	49.2 in / 1249 mm
Rack Back Angle - Maximum Height	87°
Clearance at Maximum Lift and Dump	90 in / 2285 mm
Bumper Overhang - Behind Rear Axle	40.2 in / 1021 mm

Hydraulic System
Hydraulic Flow - Standard - Loader Hydraulic Flow	20 gal/min / 76 l/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	58 hp / 43 kW
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	30 gal/min / 112 l/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3335 psi / 23000 kPa
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	39 hp / 29 kW
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	3335 psi / 23000 kPa

Cab
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I

Power Train
Travel Speed - Forward or Reverse - Two Speed Option	11.5 mile/h / 18.5 km/h
Travel Speed - Forward or Reverse - One Speed	7.5 mile/h / 12.1 km/h

Service Refill Capacities
Chain Box - Each Side	2.3 gal (US) / 8.8 l
Cooling System	3.7 gal (US) / 14 l
Engine Crankcase	3 gal (US) / 11 l
Fuel Tank	24.8 gal (US) / 94 l
Hydraulic System	13.2 gal (US) / 50 l
Hydraulic Tank	10.3 gal (US) / 39 l

Noise Level
Inside Cab**	83 dB(A)
Outside Cab***	101 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System (if equipped)
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.

Standard Equipment

ELECTRICAL
- 12 volt Electrical System
- 80 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 850 CCA
OPERATOR ENVIRONMENT
- Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen; Advanced Multi-operator Security System; On-screen Adjustments for Implement Response, Hystat Response, and Creep Control
- Gauges: Fuel Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Parking Brake Engaged, Engine Emission System
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Interior Rearview Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Anti-theft Security System with 6-button Keypad
- Storage Compartment with Netting
POWER TRAIN
- Cat C3.3B, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V Emission Standards
- Air Cleaner, Dual Element, Radial Seal
- S·O·SSM Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Canister-type, Fuel and Water Separator
- Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released Parking Brakes
- Hydrostatic Transmission
- Four Wheel Chain Drive
OTHER
- Engine Enclosure, Lockable
- Extended Life Antifreeze, –36° C (–33° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
- Product Link™ PL240, Cellular
MANDATORY EQUIPMENT
- Hydraulics, Standard or High Flow
- Quick Coupler, Mechanical or Powered
- High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- EU Preparation Package
- Power Train: One Speed, One Speed with Speed Sensitive Ride Control, Two Speed or Two Speed with Speed Sensitive Ride Control
- Tires, 12 × 16.5 or 10 × 16.5
- PERFORMANCE PACKAGES:
  – Performance Package H1: Standard Flow Hydraulics (No Self Level)
  – Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
  – Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
- COMFORT PACKAGES:
  – Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
  – Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
  – Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
  – Enclosed ROPS with A/C (C3): C2 + Air Conditioner

Optional Equipment

OPTIONAL EQUIPMENT
- Hand-Foot Style Controls
- External Counterweights
- Beacon, Rotating
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- Paint, Custom
- Product Link PL641, Cellular
- Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model	Overall Width	Overall Height	Capacity
890 mm (35 in)	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
890 mm (35 in)	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg
1140 mm (45 in)	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
1140 mm (45 in)	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg

Material Handling Buckets

Used to load and carry large volumes of ultra-low density material in a variety of applications.

Model	Width	Capacity	Weight
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.4 yd³ / 1.07 m³	805 lb / 365 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.63 yd³ / 1.25 m³	882 lb / 400 kg
2642 mm (104 in), Bolt-On Cutting Edge	104 in / 2642 mm	1.74 yd³ / 1.33 m³	922 lb / 418 kg

Silage Defacers

Prepare silage and haylage for feed with minimal oxygen penetration reducing waste.

Model	Overall Width	Weight	Required Hydraulics
DFS118	72.5 in / 1841 mm	937 lb / 425 kg	Standard Flow
DFS121	84.5 in / 2146 mm	1051.6 lb / 477 kg	Standard Flow
DFS124	96.5 in / 2451 mm	1108.9 lb / 503 kg	Standard Flow

Bale Grabs

Cat® Bales Grabs safely grab, carry and place square or round baled material.

Model	Overall Width	Overall Height	Maximum Opening Width
1803 mm (71 in)	55.2 in / 1401 mm	34.4 in / 873 mm	71 in / 1803 mm
2133 mm (84 in)	55.2 in / 1401 mm	34.4 in / 873 mm	84 in / 2133 mm

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model	Capacity	Width	Required Hydraulics
MB200	0.26 yd³ / 0.2 m³	54.6 in / 1386 mm	Standard Flow

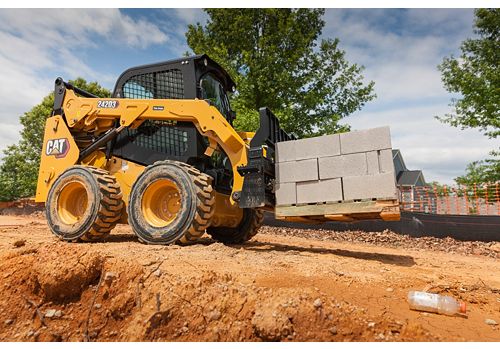

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Overall Width
1160 mm (46 in)	35.9 in / 912 mm	46 in / 1160 mm	49.9 in / 1268 mm

Command

Combining the Fleet, Terrain, Detect and Health capabilities of Cat® MineStar™ System, Command enables you to implement remote control, semi-autonomous or fully autonomous mining equipment systems - offering unprecedented improvements in operator safety, equipment availability and site productivity.

Model
Cat Command Remote Control for Construction

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Box Blades

Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.

Model	Overall Width	Working Width	Optimal Hydraulic Flow
BB121	87.4 in / 2221 mm	83.9 in / 2131 mm	30-85 L/min (8-22 gpm)
BB124	99.4 in / 2526 mm	95.9 in / 2436 mm	30-85 L/min (8-22 gpm)

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model	Roller Width	Overall Width	Maximum Angle - Right or Left
PR118 Hydraulic Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR118 Manual Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR121 Hydraulic Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR121 Manual Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR123 Hydraulic Angle	90 in / 2286 mm	99 in / 2515 mm	20 degrees

Brushcutters

Brushcutters are used to clear land and overgrowth.

Model	Overall Width	Cutting Width	Maximum Cutting Diameter
BR117	68 in / 1727 mm	66 in / 1676 mm	3 in / 76 mm
BR118	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm
BR120	79.7 in / 2025 mm	78 in / 1981 mm	3 in / 76 mm
BR318	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm
BR320	79.7 in / 2025 mm	78 in / 1981 mm	3 in / 76 mm

Industrial Grapple Forks

Cat® Industrial Grapple Forks are designed to handle a wide array of materials in tough operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	31.9 in / 810 mm	38 in / 965 mm
1829 mm (72 in)	72 in / 1829 mm	32 in / 814 mm	38 in / 965 mm

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A23	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	Skid Steer Loader Coupler
A41	3037.3 lb/ft / 4118 N·m	Gerotor Motor - Single Planetary Reduction	Skid Steer Loader Coupler
A68	5034.6 lb/ft / 6826 N·m	Gerotor Motor - Double Planetary Drive	Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model	Working Width	Working Depth	Weight
LT114	53.3 in / 1354 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model	Working Width	Bucket Capacity - Struck	Weight
LR116	62 in / 1576 mm	0.4 yd³ / 0.31 m³	1311.7 lb / 595 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model	Standard Boom Length
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Drum Width	Weight	Required Hydraulics
CV117	66 in / 1676 mm	2063.5 lb / 936 kg	Standard Flow

General Purpose Buckets

Used to dig, load, carry, level, dump and grade in a variety of applications.

Model	Width	Capacity	Weight
1576 mm (62 in), Bolt-On Teeth	62 in / 1576 mm	0.47 yd³ / 0.36 m³	407.9 lb / 185 kg
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	0.47 yd³ / 0.36 m³	440.9 lb / 200 kg
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	551.2 lb / 250 kg
1730 mm (68 in), Bolt-On Teeth	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	509.3 lb / 231 kg
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	597.5 lb / 271 kg
1883 mm (74 in), Bolt-On Teeth	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	549 lb / 249 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	630.5 lb / 286 kg
2036 mm (80 in), Bolt-On Teeth	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	582 lb / 264 kg
2188 mm (86 in), Bolt-On Cutting Edge	86.1 in / 2188 mm	0.82 yd³ / 0.63 m³	723.1 lb / 328 kg
2188 mm (86 in), Bolt-On Teeth	86.1 in / 2188 mm	0.82 yd³ / 0.63 m³	670.2 lb / 304 kg
1576 mm (62 in)	62 in / 1576 mm	0.47 yd³ / 0.36 m³	374.8 lb / 170 kg
1730 mm (68 in)	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	476.2 lb / 216 kg
1883 mm (74 in)	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	515.9 lb / 234 kg
2036 mm (80 in)	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	544.5 lb / 247 kg
2188 mm (86 in)	86.1 in / 2188 mm	0.82 yd³ / 0.63 m³	634.9 lb / 288 kg

Low Profile Buckets

Designed for light duty earth excavation.

Model	Width	Capacity	Weight
1421 mm (56 in), Bolt-On Cutting Edge	56 in / 1421 mm	0.39 yd³ / 0.3 m³	392 lb / 178 kg
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1586 mm	0.44 yd³ / 0.34 m³	452 lb / 205 kg
1730 mm (68 in), Bolt-On Cutting Edge	68 in / 1740 mm	0.48 yd³ / 0.37 m³	512 lb / 232 kg
1883 mm (74 in), Bolt-On Cutting Edge	74 in / 1893 mm	0.54 yd³ / 0.41 m³	547 lb / 248 kg
2036 mm (80 in), Bolt-On Cutting Edge	80 in / 2045 mm	0.58 yd³ / 0.44 m³	584 lb / 265 kg

Utility Buckets

Designed with a taller back height and longer floor length for lower density materials.

Model	Width	Capacity	Weight
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	0.56 yd³ / 0.43 m³	529 lb / 240 kg
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	569 lb / 258 kg
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	609 lb / 276 kg
1576 mm (62 in)	62 in / 1576 mm	0.56 yd³ / 0.43 m³	463 lb / 210 kg
1730 mm (68 in)	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	496 lb / 225 kg
1883 mm (74 in)	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	526.9 lb / 239 kg

Light Material Buckets

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Model	Width	Capacity	Weight
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	666 lb / 302 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	706 lb / 320 kg
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.1 yd³ / 0.84 m³	747 lb / 339 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.22 yd³ / 0.93 m³	822 lb / 373 kg
1883 mm (74 in)	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	586.4 lb / 266 kg
2036 mm (80 in)	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	619.5 lb / 281 kg

Multi-Purpose Buckets

Powerful clamping forces for grasping large, unusually shaped objects such as trees and recycling debris.

Model	Width	Capacity	Weight
1576 mm (62 in) w/Spill Guard, Bolt-On Cutting Edge	62 in / 1576 mm	0.39 yd³ / 0.3 m³	851 lb / 386 kg
1576 mm (62 in) w/Spill Guard, Bolt-On Teeth	62 in / 1576 mm	0.39 yd³ / 0.3 m³	817.9 lb / 371 kg
1730 mm (68 in) w/Spill Guard, Bolt-On Cutting Edge	68.1 in / 1730 mm	0.44 yd³ / 0.34 m³	906 lb / 411 kg
1730 mm (68 in) w/Spill Guard, Bolt-On Teeth	68.1 in / 1730 mm	0.44 yd³ / 0.34 m³	868.6 lb / 394 kg
1883 mm (74 in) w/Spill Guard, Bolt-On Cutting Edge	74.1 in / 1883 mm	0.48 yd³ / 0.37 m³	961 lb / 436 kg
1883 mm (74 in) w/Spill Guard, Bolt-On Teeth	74.1 in / 1883 mm	0.48 yd³ / 0.37 m³	917.1 lb / 416 kg
2036 mm (80 in) w/Spill Guard, Bolt-On Cutting Edge	80.2 in / 2036 mm	0.52 yd³ / 0.4 m³	1016 lb / 461 kg
2036 mm (80 in) w/Spill Guard, Bolt-On Teeth	80.2 in / 2036 mm	0.52 yd³ / 0.4 m³	970 lb / 440 kg
2188 mm (86 in) w/Spill Guard, Bolt-On Cutting Edge	86.1 in / 2188 mm	0.56 yd³ / 0.43 m³	1071 lb / 486 kg
2188 mm (86 in) w/Spill Guard, Bolt-On Teeth	86.1 in / 2188 mm	0.56 yd³ / 0.43 m³	1018.5 lb / 462 kg

Industrial Performance Buckets

Used to load, carry and dump in a variety of applications.

Model	Width	Capacity	Weight
1730 mm (68 in), Bolt-On Teeth	68.1 in / 1730 mm	0.68 yd³ / 0.52 m³	663.6 lb / 301 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.81 yd³ / 0.62 m³	778.2 lb / 353 kg
2340 mm (92 in), Bolt-On Teeth	92.1 in / 2340 mm	0.94 yd³ / 0.72 m³	795.9 lb / 361 kg

Mulchers

High-performance cutting and mulching of vegetation and overgrowth.

Model	Overall Width	Working Width	Length
HM115	69.2 in / 1758 mm	58.3 in / 1480 mm	48 in / 1219 mm
HM215	69.2 in / 1758 mm	58.3 in / 1480 mm	48 in / 1219 mm

Dozer Blades

Designed for rough and finish grading in dirt, gravel, and light dozing.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
2007 mm (79 in)	79 in / 2007 mm	68.9 in / 1750 mm	30 degrees
2337 mm (92 in)	92 in / 2337 mm	80.7 in / 2049 mm	30 degrees

Grader Blades

Cat® SMART Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Model	Overall Width	Blade Width	Width - Fully Angled
GB120, Smart	78.4 in / 1992 mm	78 in / 1981 mm	68.8 in / 1747 mm
GB120 with Wings, Smart	84.6 in / 2148 mm	78 in / 1981 mm	90.2 in / 2292 mm
GB124, Smart	96.4 in / 2449 mm	96 in / 2438 mm	84.4 in / 2143 mm
GB124 with Wings, Smart	102.6 in / 2605 mm	96 in / 2438 mm	105.8 in / 2688 mm

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1070 mm (42 in)	36.8 in / 934 mm	45.8 in / 1164 mm	211.6 lb / 96 kg
1220 mm (48 in)	36.8 in / 934 mm	45.8 in / 1164 mm	211.6 lb / 96 kg

Industrial Grapple Rakes

Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

Model	Width	Height	Weight
1829 mm (72 in)	72 in / 1829 mm	33 in / 838 mm	1069.9 lb / 485.29 kg
2137 mm (84 in)	84 in / 2134 mm	33 in / 838 mm	1115.1 lb / 505.79 kg
1829 mm (72 in) Straight Tine	72 in / 1829 mm	33 in / 837 mm	1101.9 lb / 499.8 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA118C Hydraulic	104 in / 2637 mm	83 in / 2119 mm	32 in / 815 mm
BA118C Manual	104 in / 2637 mm	83 in / 2119 mm	32 in / 815 mm

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Weight	Height - Grapples Closed
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	1062.6 lb / 482 kg	20.7 in / 525 mm
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	1111.1 lb / 504 kg	20.7 in / 525 mm
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	1159.6 lb / 526 kg	20.7 in / 525 mm
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	1201.5 lb / 545 kg	20.7 in / 525 mm
1576 mm (62 in)	62 in / 1576 mm	996.5 lb / 452 kg	20.7 in / 525 mm
1730 mm (68 in)	68.1 in / 1730 mm	1038.4 lb / 471 kg	20.7 in / 525 mm
1883 mm (74 in)	74.1 in / 1883 mm	1080.3 lb / 490 kg	20.7 in / 525 mm
2036 mm (80 in)	80.2 in / 2036 mm	1115.5 lb / 506 kg	20.7 in / 525 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model	Overall Width	Maximum Load Rating	Maximum Horizontal Reach
Material Handling Arm	51.8 in / 1316 mm	1999.6 lb / 907 kg	84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model	Required Hydraulics	Cutting Wheel Diameter - With Teeth	Cutting Depth - Below Ground
SG16	Standard Flow	21.5 in / 547 mm	20.5 in / 521 mm
SG36	High Flow XPS	21.5 in / 547 mm	20.5 in / 521 mm

Utility Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1730 mm (68 in)	68.1 in / 1730 mm	29.1 in / 739 mm	35.5 in / 902 mm
1883 mm (74 in)	74.1 in / 1883 mm	29.1 in / 739 mm	35.5 in / 902 mm

Utility Grapple Forks

Cat® Utility Grapple Forks are designed to handle a wide variety of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	30.3 in / 770 mm	34.5 in / 876 mm
1829 mm (72 in)	72 in / 1829 mm	30.3 in / 770 mm	34.5 in / 876 mm

Utility Forks

Cat® Utility Forks are designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height	Weight
1676 mm (66 in)	66 in / 1676 mm	22.9 in / 581 mm	436.5 lb / 198 kg
1829 mm (72 in)	72 in / 1829 mm	22.9 in / 581 mm	485 lb / 220 kg

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
1829 mm (72 in)	72 in / 1829 mm	66.3 in / 1685 mm	30 degrees
2134 mm (84 in)	84 in / 2134 mm	76.7 in / 1949 mm	30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model	Overall Length	Overall Width	Weight
Manual Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	754 lb / 342 kg
Hydraulic Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	798 lb / 362 kg

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Tip Force	Rotation	Jaw Opening
S308	43.3 Sh Ton / 385 kN	360 Degrees	9.4 in / 240 mm

Backhoes

Used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings.

Model	Maximum Digging Depth	Operating Weight	Overall Length
BH130, Smart	117 in / 2972 mm	2325.9 lb / 1055 kg	87 in / 2210 mm

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model	Maximum Cutting Depth	Wheel Width	Weight
SW345, 80 mm (3 in)	17.7 in / 450 mm	3.1 in / 80 mm	2482.4 lb / 1126 kg
SW345, 130 mm (5 in)	17.7 in / 450 mm	5.1 in / 130 mm	2239.9 lb / 1016 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP115C	78.3 in / 1990 mm	60 in / 1524 mm	26 in / 660 mm
BP118C	90.4 in / 2295 mm	72 in / 1829 mm	26 in / 660 mm

242D3

Standard Equipment

Optional Equipment

Bale Spears

Material Handling Buckets

Silage Defacers

Bale Grabs

Mixing Buckets

Pallet Fork Carriages

Command

Equipment Management

Box Blades

Power Box Rakes

Brushcutters

Industrial Grapple Forks

Augers

Landscape Tillers

Landscape Rakes

Trenchers

Vibratory Drum Compactors

General Purpose Buckets

Low Profile Buckets

Utility Buckets

Light Material Buckets

Multi-Purpose Buckets

Industrial Performance Buckets

Mulchers

Dozer Blades

Grader Blades

Pallet Forks

Industrial Grapple Rakes

Angle Brooms

Industrial Grapple Buckets

Material Handling Arms

Stump Grinders

Utility Grapple Buckets

Utility Grapple Forks

Utility Forks

Angle Blades - Compact Products

Nursery Forks

Mobile Scrap & Demolition Shears

Backhoes

Wheel Saws

Pickup Brooms

We're here to help.
