250

Gross Power - SAE J1995:2014: 74 hp / 55 kW
Rated Operating Capacity: 2689 lb / 1220 kg
Operating Weight: 7829 lb / 3551 kg

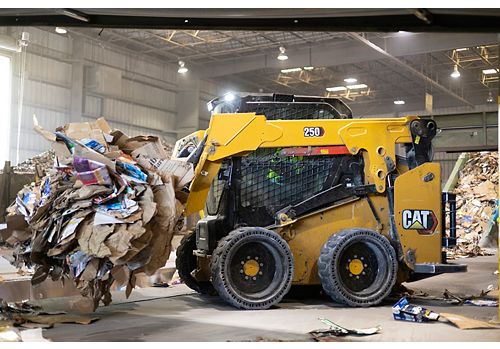

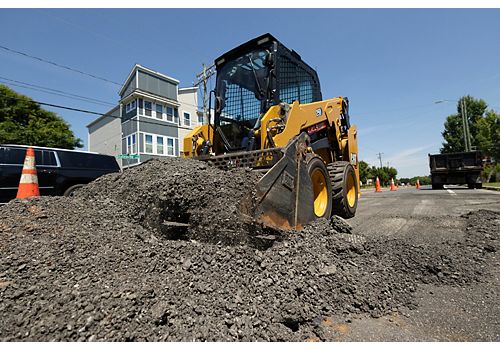

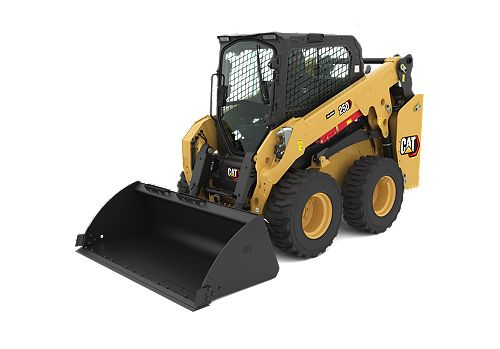

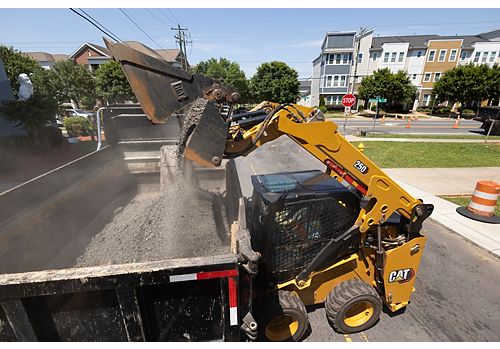

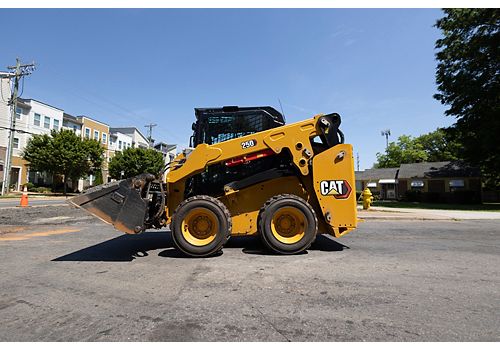

The Cat® 250 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

Loan Calculator Credit Application

Build & Quote

250 Product Brochure Options and Accessories Kit Guide for Skid Steer and Compact Track Loaders Cat Attachments for 250/260/270 Skid Steer Loaders and 255/265/275/285 Compact Track Loaders Brochure

Specifications
Equipment
Related Products

Engine
Gross Power - SAE J1995:2014	74 hp / 55 kW
Net Power - SAE 1349	73 hp / 55 kW
Displacement	171 in³ / 2.8 l
Stroke	4.3 in / 110 mm
Bore	3.5 in / 90 mm
Net Power - ISO 9249	73 hp / 55 kW
Peak Torque - 1,600 rpm - SAE J1995	221 lb/ft / 300 N·m
Note	Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.
Engine Model	Cat C2.8T (turbo)

Operating Specifications
Rated Operating Capacity	2689 lb / 1220 kg
Tipping Load	5378 lb / 2440 kg
Breakout Force - Tilt Cylinder	6784 lb / 3077 kg
Breakout Force - Lift Cylinder	5948 lb / 2698 kg
Rated Operating Capacity with Optional Counterweight	2916 lb / 1325 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Weights
Operating Weight	7829 lb / 3551 kg
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).

Dimensions
Wheel Base	43.1 in / 1094 mm
Height - Top of Cab	81.9 in / 2080 mm
Vehicle Width over Tires	66 in / 1677 mm
Ground Clearance	7.7 in / 195 mm
Departure Angle	23°
Maximum Dump Angle	46°
Length - With Bucket on Ground	135 in / 3430 mm
Length - Without Bucket	110.2 in / 2800 mm
Bucket Pin Height - Maximum Lift	124 in / 3150 mm
Maximum Reach - With Arms Parallel to Ground	32.8 in / 833 mm
Turning Radius from Center - Coupler	51 in / 1296 mm
Turning Radius from Center - Machine Rear	64.9 in / 1649 mm
Maximum Overall Height	155.8 in / 3957 mm
Bucket Pin Reach - Maximum Lift	3 in / 75 mm
Bucket Pin Height - Carry Position	7.9 in / 200 mm
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height	97°
Clearance at Maximum Lift and Dump	96.2 in / 2443 mm
Turning Radius from Center - Bucket	79.7 in / 2024 mm
Reach - Maximum Lift/Dump	17.6 in / 448 mm
Roll Back Angle	28°

Hydraulic System
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure	4061 psi / 28000 kPa
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	30 gpm / 112 L/min
Hydraulic Flow - Standard - Loader Hydraulic Flow	20 gpm / 76 L/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	30 gpm / 113 L/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	58 hp / 43 kW
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	39 hp / 29 kW
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3335 psi / 23000 kPa
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	71 hp / 53 kW
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	3335 psi / 23000 kPa

Cab
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I
FOPS Level II	ISO 3449:2005 (Optional)

Power Train
Travel Speed - Forward or Reverse - One Speed	8 mile/h / 12.9 km/h
Travel Speed - Forward or Reverse - Two Speed Option	10.5 mile/h / 16.9 km/h

Service Refill Capacities
Chain Box - Each Side	2.2 gal (US) / 8.3 l
Cooling System	3 gal (US) / 11.5 l
Engine Crankcase	2.1 gal (US) / 8 l
Fuel Tank	24.9 gal (US) / 94.4 l
Hydraulic System	9.7 gal (US) / 36.8 l
Hydraulic Tank	6.9 gal (US) / 26 l

Sustainability
Recyclability	94%

Noise Level
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab**	101 dB(A)
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.

Air Conditioning System (if equipped)
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.

Standard Equipment

ELECTRICAL
- Work Tool Electrical Harness
- Heavy duty battery
- 12-volt Electrical System
- 85 Ampere Alternator
- LED Work Lights
- Auto Reverse Lights
- Switch Backlighting
- Interior LED Dome Light
- Backup Alarm
- Electrical Outlet, Beacon
- Exterior Courtesy Lighting
- Automatic Work light notification flash when parking brake is released
OPERATOR ENVIRONMENT
- Full color LCD monitor: Creep speed control, Drive response adjustment, Implement response adjustment, Drive Power Priority adjustment, Language selection (×32), Multi-operator Anti-theft Security System and Monitoring, Maintenance schedule and reminders, Event and Diagnostic Code monitoring, Date /Time/Units/Brightness settings, and Smart Technology for use with Smart Attachments.
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Supply Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System (where applicable)
- Gauges: Fuel Level, Hour Meter, Hydraulic Temperature, Hour Meter, Battery Voltage, Tachometer
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Headliner
- Interior Rearview Mirror
- Horn
- Hand (Dial) Throttle, Electronic
- Seat Mounted Joystick Controls
- Cell Phone Storage Pocket
- Cup Holder
- 12-volt power port
- Foot Throttle
HYDRAULICS
- Selectable control pattern – ISO or H
- Electro/hydraulic implement control
- Electro/hydraulic hydrostatic transmission control Speed sensor guarding
- Heavy duty flat faced quick disconnects with integrated pressure release lever
- Hydraulic oil level sight gauge
POWER TRAIN
- Cat C2.8T turbocharged diesel engine, Meeting U.S. EPA Tier 4 Final and EU Stage V emission standards
- Glow plugs starting aid
- Liquid cooled, direct injection
- Extended life antifreeze (–37°C, –34°F)
- Air cleaner, dual element, radial seal
- Scheduled Oil Sampling (S·O·SSM) Valve, Hydraulic Oil Ecology drain – coolant
- Radiator coolant level sight gauge Radiator expansion bottle
- Filter, hydraulic supply, cartridge type
- Filter, hydraulic return, cartridge type
- Filter, canister type, engine oil
- Spring applied, hydraulically released, parking brakes
- Hydrostatic transmission
- Lockable fuel cap
- Hydraulic demand cooling fan
- Auto engine idle
OTHER
- Auxiliary Hydraulics, Continuous Flow
- Telematics, Product Link, Cellular
- Steel engine door with replaceable louvers
- Engine door – lockable
- Work tool attachment coupler
- Cat ToughGuard™ hose
MANDATORY EQUIPMENT
- Auxiliary Hydraulics: Standard or High Flow XPS
- Quick Coupler: Mechanical or Hydraulic
- High Visibility Seat Belt: 50 mm (2 in), 75 mm (3 in), or 3-point lap/shoulder
- Tires: 10 x 16.5 or 12 x 16.5
- Axles: Standard or Special Application
PERFORMANCE PACKAGES
- Performance Package HP1: Standard Flow Hydraulics
- Performance Package HP3: High Flow XPS Hydraulics
COMFORT PACKAGES
- Open canopy: Cup Holder, Cell Phone Pocket, choice of vinyl seat (Mechanical Suspension, High Back/Heated/Air Ride Seat
- Enclosed Cab with heat and air conditioning: Side Windows, Cup Holder, Cell Phone Pocket, choice of Seat (Mechanical Suspension, High Back/Heated Air Ride Seat, High Back/Ventilated and Heated Air Ride Seat) and Door choice (Glass or Polycarbonate)
TECHNOLOGY PACKAGES
- T2 – T1 + Rear-view camera.
- T4 – Advanced Touchscreen Monitor, Advanced Joysticks, Push start, X-mount cell phone holder, and a Rear-view camera.
- T5 – T4 + 2 additional side view cameras.
RADIO
- Radio, none – for open canopy machines and countries not certified for Bluetooth® technology
- Integrated AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm Auxiliary (AUX) input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
- Integrated DAB+/AM/FM radio with Bluetooth technology. Includes USB port, 3.5 mm AUX input, and Bluetooth microphone. Only for use with enclosed cab. Availability varies by country.
PRODUCT LINK™
- Product Link Basic series PL243
- Product Link Elite series PLE643
COOLING FAN
- On-demand, variable speed hydraulic cooling fan
- On-demand, variable speed hydraulic cooling fan, with automatic and manual purge reversing operation
GUARDING AND SEALING PACKAGES
- HD0 – base guarding and sealing (engine air inlet rain cap, front cab-toframe sealing, and hydraulic fill access door)
- HD1– intermediate guarding and sealing (HD0 + cab-to-frame side sealing, lockable fuel fill access door, tilt cylinder guarding, and drive line bottom guarding. Some equipment varies by region)
- HD2 – most comprehensive guarding and sealing (HD1 + turbo guard, exhaust stack wrap, Diesel Particulate Filter (DPF) wrap, quick disconnect guarding, fully enclosed drive line guarding, under step hydraulic lines guard cover, engine air inlet pre-cleaner. Some equipment varies by region

Optional Equipment

OPTIONAL EQUIPMENT
- External Counterweights
- Beacon, LED
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- 4-point machine lifting eyes
- Paint, Custom
- Speed Sensitive Ride Control
- Bluetooth Key Security
- Attachment Hose Guide
- Corrosion Inhibitor Coating

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model	Overall Width	Overall Height	Capacity
890 mm (35 in), Single Tine	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
890 mm (35 in), Dual Tine	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg
1140 mm (45 in), Single Tine	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
1140 mm (45 in), Dual Tine	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg

Material Handling Buckets

Used to load and carry large volumes of ultra-low density material in a variety of applications.

Model	Width	Capacity	Weight
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.4 yd³ / 1.07 m³	805 lb / 365 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.63 yd³ / 1.25 m³	882 lb / 400 kg
2642 mm (104 in), Bolt-On Cutting Edge	104 in / 2642 mm	1.74 yd³ / 1.33 m³	922 lb / 418 kg

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model	Capacity	Width	Required Hydraulics
MB200	0.26 yd³ / 0.2 m³	54.6 in / 1386 mm	Standard Flow
MB250	0.33 yd³ / 0.25 m³	54.7 in / 1390 mm	Standard Flow

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Overall Width
1160 mm (46 in), Skid Steer Coupler, Class II	35.9 in / 912 mm	46 in / 1160 mm	49.9 in / 1268 mm

Box Blades

Cat® Box Blades are designed for grading and leveling. Each model is designed to operate both manually and automatically with the use of Laser or GPS grading systems.

Model	Overall Width	Working Width	Optimal Hydraulic Flow
BB121	87.4 in / 2221 mm	83.9 in / 2131 mm	30-85 L/min (8-22 gpm)
BB124	99.4 in / 2526 mm	95.9 in / 2436 mm	30-85 L/min (8-22 gpm)

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model	Roller Width	Overall Width	Maximum Angle - Right or Left
PR118 Hydraulic Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR118 Manual Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR121 Hydraulic Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR121 Manual Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR123 Hydraulic Angle	90 in / 2286 mm	99 in / 2515 mm	20 degrees

Brushcutters

Brushcutters are used to clear land and overgrowth.

Model	Overall Width	Cutting Width	Maximum Cutting Diameter
BR117	68 in / 1727 mm	66 in / 1676 mm	3 in / 76 mm
BR118	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm
BR120	79.7 in / 2025 mm	78 in / 1981 mm	3 in / 76 mm
BR318	74 in / 1880 mm	72 in / 1829 mm	3 in / 76 mm

Industrial Grapple Forks

Cat® Industrial Grapple Forks are designed to handle a wide array of materials in tough operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	31.9 in / 810 mm	38 in / 965 mm
1829 mm (72 in)	72 in / 1829 mm	32 in / 814 mm	38 in / 965 mm

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A23, Skid Steer Coupler	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	Skid Steer Loader Coupler
A41, Skid Steer Coupler	3037.3 lb/ft / 4118 N·m	Gerotor Motor - Single Planetary Reduction	Skid Steer Loader Coupler
A68, Skid Steer Coupler	5034.6 lb/ft / 6826 N·m	Gerotor Motor - Double Planetary Drive	Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model	Working Width	Working Depth	Weight
LT114	53.3 in / 1354 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg
LT118	72.8 in / 1848 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model	Working Width	Bucket Capacity - Struck	Weight
LR116	62 in / 1576 mm	0.4 yd³ / 0.31 m³	1311.7 lb / 595 kg
LR119	74.1 in / 1883 mm	0.4 yd³ / 0.34 m³	1439.6 lb / 653 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model	Standard Boom Length
T109 Hydraulic Side Shift, Terminator Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Combo Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Rock-Frost Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Standard Chain	36 in / 914 mm
T109 Hydraulic Side Shift, No Chain	36 in / 914 mm
T109 Hydraulic Side Shift, Standard Chain	36 in / 914 mm
T109 Manual Side Shift, Combo Chain	36 in / 914 mm
T109 Manual Side Shift, Terminator Chain	36 in / 914 mm
T109 Manual Side Shift, Rock-Frost Chain	36 in / 914 mm
T109 Manual Side Shift, Standard Chain	36 in / 914 mm
T109 Manual Side Shift, No Chain	36 in / 914 mm
T109 Manual Side Shift, Standard Chain	36 in / 914 mm
T112 Hydraulic Side Shift, Standard Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Rock-Frost Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Combo Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, No Chain	48 in / 1219 mm
T112 Hydraulic Side Shift, Standard Chain	48 in / 1219 mm
T112 Manual Side Shift, No Chain	48 in / 1219 mm
T112 Manual Side Shift, Combo Chain	48 in / 1219 mm
T112 Manual Side Shift, Standard Chain	48 in / 1219 mm
T112 Manual Side Shift, Rock-Frost Chain	48 in / 1219 mm
T315 Hydraulic Side Shift, Standard Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, Standard Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, No Chain	60 in / 1524 mm
T315 Hydraulic Side Shift, Combo Chain	60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Drum Width	Weight	Required Hydraulics
CV117	66 in / 1676 mm	2063.5 lb / 936 kg	Standard Flow

General Purpose Buckets

Used to dig, load, carry, level, dump and grade in a variety of applications.

Model	Width	Capacity	Weight
1576 mm (62 in) , Bolt-On Teeth	62 in / 1576 mm	0.47 yd³ / 0.36 m³	407.9 lb / 185 kg
1576 mm (62 in) , Bolt-On Cutting Edge	62 in / 1576 mm	0.47 yd³ / 0.36 m³	440.9 lb / 200 kg
1730 mm (68 in) , Bolt-On Cutting Edge	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	551.2 lb / 250 kg
1730 mm (68 in) , Bolt-On Teeth	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	509.3 lb / 231 kg
1883 mm (74 in) , Bolt-On Cutting Edge	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	597.5 lb / 271 kg
1883 mm (74 in) , Bolt-On Teeth	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	549 lb / 249 kg
2036 mm (80 in) , Bolt-On Cutting Edge	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	630.5 lb / 286 kg
2036 mm (80 in) , Bolt-On Teeth	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	582 lb / 264 kg
1576 mm (62 in) , Base Edge	62 in / 1576 mm	0.47 yd³ / 0.36 m³	374.8 lb / 170 kg
1730 mm (68 in) , Base Edge	68.1 in / 1730 mm	0.52 yd³ / 0.4 m³	476.2 lb / 216 kg
1883 mm (74 in) , Base Edge	74.1 in / 1883 mm	0.58 yd³ / 0.44 m³	515.9 lb / 234 kg
2036 mm (80 in) , Base Edge	80.2 in / 2036 mm	0.63 yd³ / 0.48 m³	544.5 lb / 247 kg

Utility Buckets

Designed with a taller back height and longer floor length for lower density materials.

Model	Width	Capacity	Weight
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	0.56 yd³ / 0.43 m³	529 lb / 240 kg
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	569 lb / 258 kg
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	609 lb / 276 kg
1576 mm (62 in), Base Edge	62 in / 1576 mm	0.56 yd³ / 0.43 m³	463 lb / 210 kg
1730 mm (68 in), Base Edge	68.1 in / 1730 mm	0.63 yd³ / 0.48 m³	496 lb / 225 kg
1883 mm (74 in), Base Edge	74.1 in / 1883 mm	0.68 yd³ / 0.52 m³	526.9 lb / 239 kg

Light Material Buckets

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Model	Width	Capacity	Weight
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	666 lb / 302 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	706 lb / 320 kg
2185 mm (86 in), Bolt-On Cutting Edge	86 in / 2185 mm	1.1 yd³ / 0.84 m³	747 lb / 339 kg
2490 mm (98 in), Bolt-On Cutting Edge	98 in / 2490 mm	1.22 yd³ / 0.93 m³	822 lb / 373 kg
1883 mm (74 in), Base Edge	74.1 in / 1883 mm	0.9 yd³ / 0.69 m³	586.4 lb / 266 kg
2036 mm (80 in), Base Edge	80.2 in / 2036 mm	0.98 yd³ / 0.75 m³	619.5 lb / 281 kg

Multi-Purpose Buckets

Powerful clamping forces for grasping large, unusually shaped objects such as trees and recycling debris.

Model	Width	Capacity	Weight
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	0.39 yd³ / 0.3 m³	851 lb / 386 kg
1576 mm (62 in), Bolt-On Teeth	62 in / 1576 mm	0.39 yd³ / 0.3 m³	817.9 lb / 371 kg
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	0.44 yd³ / 0.34 m³	906 lb / 411 kg
1730 mm (68 in), Bolt-On Teeth	68.1 in / 1730 mm	0.44 yd³ / 0.34 m³	868.6 lb / 394 kg
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	0.48 yd³ / 0.37 m³	961 lb / 436 kg
1883 mm (74 in), Bolt-On Teeth	74.1 in / 1883 mm	0.48 yd³ / 0.37 m³	917.1 lb / 416 kg
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	0.52 yd³ / 0.4 m³	1016 lb / 461 kg
2036 mm (80 in), Bolt-On Teeth	80.2 in / 2036 mm	0.52 yd³ / 0.4 m³	970 lb / 440 kg
2188 mm (86 in), Bolt-On Cutting Edge	86.1 in / 2188 mm	0.56 yd³ / 0.43 m³	1071 lb / 486 kg
2188 mm (86 in), Bolt-On Teeth	86.1 in / 2188 mm	0.56 yd³ / 0.43 m³	1018.5 lb / 462 kg

Mulchers

High-performance cutting and mulching of vegetation and overgrowth.

Model	Overall Width	Working Width	Length
HM115	69 in / 1758 mm	58 in / 1480 mm	48 in / 1219 mm
HM215	69 in / 1758 mm	58 in / 1480 mm	48 in / 1219 mm

Grader Blades

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base.

Model	Overall Width	Blade Width	Width - Fully Angled
GB120, Smart	78.4 in / 1992 mm	78 in / 1981 mm	68.8 in / 1747 mm
GB120 with Wings, Smart	84.6 in / 2148 mm	78 in / 1981 mm	90.2 in / 2292 mm
GB124, Smart	96.4 in / 2449 mm	96 in / 2438 mm	84.4 in / 2143 mm
GB124 with Wings, Smart	102.6 in / 2605 mm	96 in / 2438 mm	105.8 in / 2688 mm

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1070 mm (42 in), Skid Steer Coupler, Class II	36.8 in / 934 mm	45.8 in / 1164 mm	211.6 lb / 96 kg
1220 mm (48 in), Skid Steer Coupler, Class II	36.8 in / 934 mm	45.8 in / 1164 mm	211.6 lb / 96 kg

Industrial Grapple Rakes

Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

Model	Width	Height	Weight
1829 mm (72 in) Straight Tine	72 in / 1829 mm	33 in / 837 mm	1101.9 lb / 499.8 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA118C Manual, Polypropylene/Wire	103.8 in / 2637 mm	83.4 in / 2119 mm	32.1 in / 815 mm

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Weight	Height - Grapples Closed
1576 mm (62 in), Bolt-On Cutting Edge	62 in / 1576 mm	1062.6 lb / 482 kg	20.7 in / 525 mm
1730 mm (68 in), Bolt-On Cutting Edge	68.1 in / 1730 mm	1111.1 lb / 504 kg	20.7 in / 525 mm
1883 mm (74 in), Bolt-On Cutting Edge	74.1 in / 1883 mm	1159.6 lb / 526 kg	20.7 in / 525 mm
2036 mm (80 in), Bolt-On Cutting Edge	80.2 in / 2036 mm	1201.5 lb / 545 kg	20.7 in / 525 mm
1576 mm (62 in), Base Edge	62 in / 1576 mm	996.5 lb / 452 kg	20.7 in / 525 mm
1730 mm (68 in), Base Edge	68.1 in / 1730 mm	1038.4 lb / 471 kg	20.7 in / 525 mm
1883 mm (74 in), Base Edge	74.1 in / 1883 mm	1080.3 lb / 490 kg	20.7 in / 525 mm
2036 mm (80 in), Base Edge	80.2 in / 2036 mm	1115.5 lb / 506 kg	20.7 in / 525 mm
1586 mm (62 in), Bolt-On Cutting Edge	62 in / 1586 mm	1177.3 lb / 534 kg	32.8 in / 833 mm
1740 mm (68 in), Bolt-On Cutting Edge	68 in / 1740 mm	1219.2 lb / 553 kg	32.8 in / 833 mm
1893 mm (74 in), Bolt-On Cutting Edge	74 in / 1893 mm	1263.2 lb / 573 kg	32.8 in / 833 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model	Overall Width	Maximum Load Rating	Maximum Horizontal Reach
Material Handling Arm, Skid Steer Coupler	51.8 in / 1316 mm	1999.6 lb / 907 kg	84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model	Required Hydraulics	Cutting Wheel Diameter - With Teeth	Cutting Depth - Below Ground
SG36	High Flow XPS	21.5 in / 547 mm	20.5 in / 521 mm

Utility Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1730 mm (68 in)	68.1 in / 1730 mm	29.1 in / 739 mm	35.5 in / 902 mm
1883 mm (74 in)	74.1 in / 1883 mm	29.1 in / 739 mm	35.5 in / 902 mm

Utility Grapple Forks

Cat® Utility Grapple Forks are designed to handle a wide variety of materials in a variety of operating conditions.

Model	Width	Height - Grapples Closed	Jaw Opening
1676 mm (66 in)	66 in / 1676 mm	30.3 in / 770 mm	34.5 in / 876 mm
1829 mm (72 in)	72 in / 1829 mm	30.3 in / 770 mm	34.5 in / 876 mm

Utility Forks

Cat® Utility Forks are designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Height	Weight
1676 mm (66 in)	66 in / 1676 mm	22.9 in / 581 mm	436.5 lb / 198 kg
1829 mm (72 in)	72 in / 1829 mm	22.9 in / 581 mm	485 lb / 220 kg

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
1829 mm (72 in)	72 in / 1829 mm	66.3 in / 1685 mm	30 degrees
2134 mm (84 in)	84 in / 2134 mm	76.7 in / 1949 mm	30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model	Overall Length	Overall Width	Weight
Manual Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	754 lb / 342 kg
Hydraulic Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	798 lb / 362 kg

Mobile Scrap & Demolition Shears

Cat® Scrap and Demolition Shears are industry leaders in steel processing. Power and performance in a reliable package, backed by the best dealer network in the world.

Model	Tip Force	Rotation	Jaw Opening
S308	43.3 Sh Ton / 385 kN	360 Degrees	9.4 in / 240 mm

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model	Maximum Cutting Depth	Wheel Width	Weight
SW345, 80 mm (3 in)	17.7 in / 450 mm	3.1 in / 80 mm	2482.4 lb / 1126 kg
SW345, 130 mm (5 in)	17.7 in / 450 mm	5.1 in / 130 mm	2239.9 lb / 1016 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP115C	78.3 in / 1990 mm	60 in / 1524 mm	26 in / 660 mm
BP118C	90.4 in / 2295 mm	72 in / 1829 mm	26 in / 660 mm

250

Standard Equipment

Optional Equipment

Bale Spears

Material Handling Buckets

Mixing Buckets

Pallet Fork Carriages

Box Blades

Power Box Rakes

Brushcutters

Industrial Grapple Forks

Augers

Landscape Tillers

Landscape Rakes

Trenchers

Vibratory Drum Compactors

General Purpose Buckets

Utility Buckets

Light Material Buckets

Multi-Purpose Buckets

Mulchers

Grader Blades

Pallet Forks

Industrial Grapple Rakes

Angle Brooms

Industrial Grapple Buckets

Material Handling Arms

Stump Grinders

Utility Grapple Buckets

Utility Grapple Forks

Utility Forks

Angle Blades - Compact Products

Nursery Forks

Mobile Scrap & Demolition Shears

Wheel Saws

Pickup Brooms

We're here to help.
