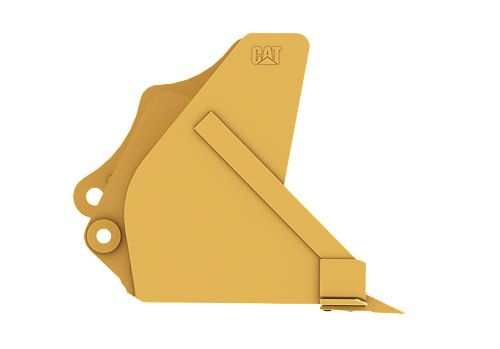

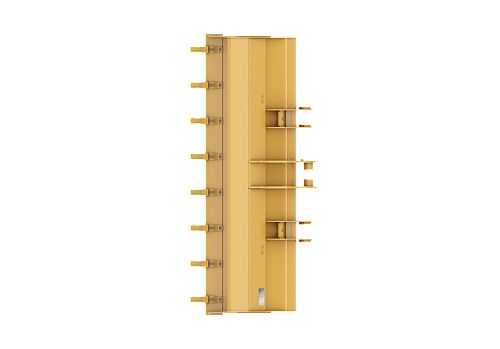

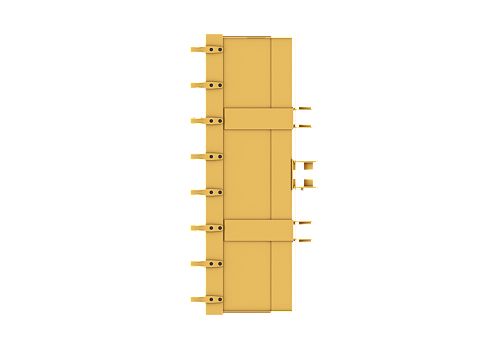

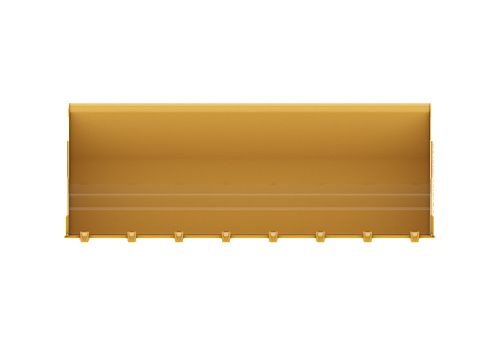

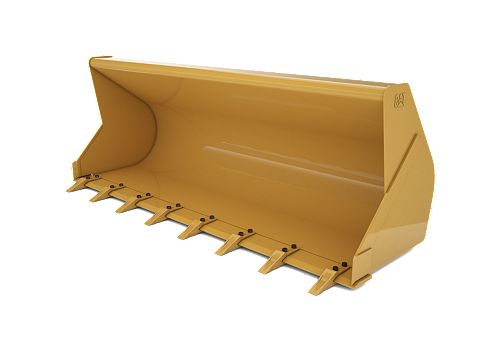

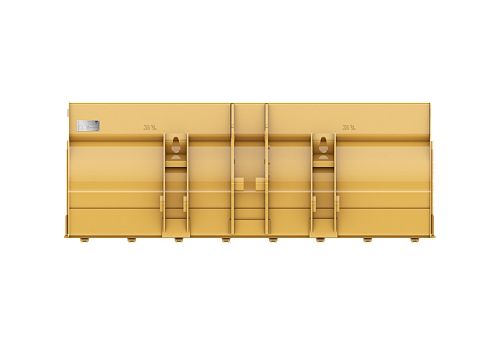

1.15 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Teeth
- Width
- 94.7 in / 2406 mm
- Height
- 35.9 in / 911 mm
- Weight
- 1112.2 lb / 504.5 kg
Load, carry, dump and perform general clean-up work.
| Product Specifications | |
|---|---|
| Width | 94.7 in / 2406 mm |
| Height | 35.9 in / 911 mm |
| Weight | 1112.2 lb / 504.5 kg |
| Length | 42.8 in / 1086 mm |
| Capacity | 1.5 yd³ / 1.15 m³ |
| Base Edge Thickness | 0.8 in / 20 mm |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
