420 XE

Dig Depth - Standard: 14 ft / 4278 mm
Operating Weight - Maximum: 24251 lb / 11000 kg
Cab - ROPS/FOPS: 320 lb / 145 kg

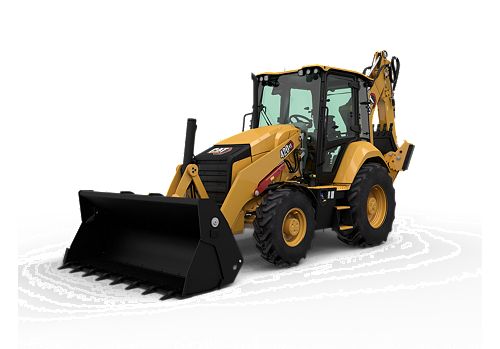

The Cat^® 420 XE Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.

Loan Calculator Credit Application

Build & Quote

420 XE Product Brochure Backhoe Loader Attachments Brochure Options And Accessories Kit Guide for Backhoe Loaders

Specifications
Equipment
Related Products

Engine
Net Power - SAE J1349	92 HP (68 kW) / 103 HP (76 kW)
Displacement	220 in³ / 3.6 l
Engine Model	C3.6 74.5 kW (100 hp) Electronic Turbo Intercooled
Net Power Rating at 2,200 rpm - ISO 9249	91 hp / 68 kW
Power Rating Conditions - No De-Rating Required Up To	10000 ft / 3048 m
Net Torque Rise - 1,400 rpm - SAE J1349	47%
Ratings at 2,200 rpm - Gross Power SAE J1995	102 hp / 76 kW
Ratings at 2,200 rpm - Gross Power ISO 14396	100 hp / 74 kW
Net Power Rating at 2,200 rpm - SAE J1349	92 hp / 68 kW
Net Torque Rise - 1,400 rpm - SAE J1349	322 ft-lb / 436 N·m
Emissions	Engine meets Tier 4 Final/Stage V emission standards.
Net Peak Power - 1,800 rpm - ISO 9249	105 hp / 78 kW
Dimensions - Bore	3.86 in / 98 mm
Dimensions - Stroke	4.72 in / 120 mm
Net Peak Power Rating @ 1,800 rpm - SAE J1349	105 hp / 79 kW

Weights
Operating Weight - Maximum	24251 lb / 11000 kg
Cab - ROPS/FOPS	320 lb / 145 kg
Ride Control	33 lb / 15 kg
Air Conditioning	99 lb / 45 kg
Note	Machine configuration: standard stick hoe, OROPS canopy, AWD power shift transmission, 0.96 m³ (1.25 yd³) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 240 kg (530 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks	2017 lb / 915 kg
Operating Weight - Maximum - ROPS Capacity	24251 lb / 11000 kg
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks	1642 lb / 745 kg
Counterweights, base - Stackable, one	529 lb / 240 kg
Power-Shift Transmission	STD
Extendible Stick (excludes ft. counterweight)	595 lb / 270 kg
Counterweights, base - Maximum	1014 lb / 460 kg
Counterweights, base	256 lb / 115 kg
Loader QC	540 lb / 245 kg
All-Wheel Drive	STD
Operating Weight (estimated)	17271 lb / 7834 kg

Backhoe
Dig Depth - Standard	14 ft / 4278 mm

Transmission
Power-Shift Transmission with LTC - Optional - Forward - 2nd	5.8 mile/h / 9.4 km/h
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC*	25 mile/h / 40 km/h
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC	18 mile/h / 29 km/h
Power Shift Transmission - Standard - Forward - 3rd	12 mile/h / 20 km/h
Power Shift Transmission - Standard - Reverse - 2nd	7.7 mile/h / 12.4 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 3rd	17 mile/h / 27 km/h
Power-Shift Transmission - Optional - Forward - 2nd	5.8 mile/h / 9.4 km/h
Power-Shift Transmission - Optional - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission with LTC - Optional - Forward - 4th	12 mile/h / 20 km/h
Power Shift Transmission - Standard - Forward - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission with LTC - Optional - Forward - 5th	17 mile/h / 27 km/h
Power-Shift Transmission - Optional - Reverse - 2nd	7.7 mile/h / 12 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission with LTC - Optional - Forward - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission - Optional - Reverse - 3rd	17 mile/h / 27 km/h
Power Shift Transmission - Standard - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission - Optional - Forward - 3rd	8 mile/h / 12 km/h
Power Shift Transmission - Standard - Reverse - 3rd	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Forward - 6th	25 mile/h / 41 km/h
Power Shift Transmission - Standard - Forward - 4th	25 mile/h / 41 km/h
Power Shift Transmission - Standard - Forward - 2nd	5.8 mile/h / 9.4 km/h
Power-Shift Transmission with LTC - Optional - Forward - 3rd	8 mile/h / 12 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 2nd	7.7 mile/h / 12 km/h
Power-Shift Transmission - Optional - Forward - 6th	25 mile/h / 41 km/h
Power-Shift Transmission - Optional - Forward - 4th	12 mile/h / 20 km/h
Power-Shift Transmission - Optional - Forward - 5th	17 mile/h / 27 km/h
Power-Shift Transmission - Optional - Forward -1st	3.7 mile/h / 5.9 km/h
Note (2)	*Limited by engine speed to 40 km/h (25 mph).
Note (1)	Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 500/70-24 rear tires.

Axle Ratings
Rear Axle - Dynamic	22046 lb / 10000 kg
Front Axle, AWD - Dynamic	19841 lb / 9000 kg
Front Axle, AWD - Static	51808 lb / 23500 kg
Rear Axle - Static	58422 lb / 26500 kg

Hydraulic System
Pump Type	Variable-flow, Axial Piston
System Pressure - Loader	3626 psi / 25000 kPa
Pump Capacity at 2,200 rpm	49.4 gpm / 187 L/min
System Pressure - Backhoe	3626 psi / 25000 kPa
Type	Closed Center

Steering
Bore	2.6 in / 65 mm
Turning Circle - (inner wheel not braked) - Outside Front Wheels	26.92 ft / 8.205 m
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket	35.25 ft / 10.745 m
Power Steering	Hydrostatic
Rod Diameter	1.6 in / 40 mm
Type	Front Wheel Steering
Stroke	4.2 in / 106 mm
Axle Oscillation	11°
Cylinder	One Double-Acting

Service Refill Capacities
Fuel Tank	42.3 gal (US) / 160 l
Engine Oil - With Filter	2.4 gal (US) / 9 l
Hydraulic Tank	11.1 gal (US) / 42 l
Hydraulic System	25.1 gal (US) / 95 l
Cooling System with Air Conditioning	4.8 gal (US) / 18 l
Rear Axle	4.2 gal (US) / 16 l
Diesel Exhaust Fluid (DEF)	5 gal (US) / 19 l
Rear Axle - Planetaries	0.4 gal (US) / 1.7 l
Transmission - Power Shift - AWD	5 gal (US) / 19 l
Transmission - Power Shuttle - AWD	4.8 gal (US) / 18 l
Front Axle (AWD) - Planetaries	0.2 gal (US) / 0.7 l
Front Axle (AWD)	2.9 gal (US) / 11 l

Standard Equipment

STANDARD EQUIPMENT
- Adjustable auxiliary controls, backhoe loader
- Air cleaner
- Alarm, back-up
- Audible system fault alarm
- Automatic Engine Speed Control (AESC)
- Battery, maintenance-free, 850 CCA
- Battery disconnect switch
- Boom transport lock
- Brace, lift cylinder
- Brake, parking, Spring Applied Hydraulically Released (SAHR)
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Cat cushion swing system
- Coat restraint
- Coolant/antifreeze, extended life
- Dome light (cab only)
- Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
- Differential lock, loader joystick
- Drink holders, two
- Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
- Engine enclosure, sound suppression, removable side panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Four wheel drive
- Four wheel drive shaft guard
- Fuel tank, fully enclosed
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
- Ground level fuel fill and DEF fill
- Halogen lights, working (2 front, 2 rear)
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic Lock Out, loader, backhoe, auxiliary hydraulics
- Hydraulic hose, XT™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valves, loader 2 function
- Hydraulic valves, backhoe 4 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
- Instrument panel lights
- Key start/stop system

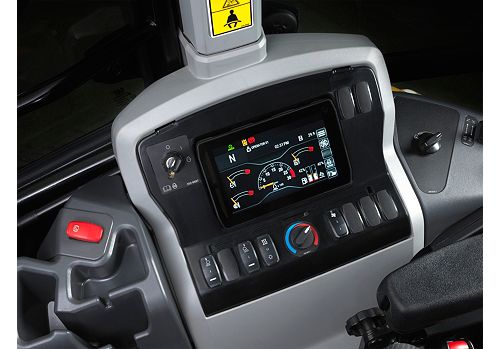

- LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Loader, EH Parallel Lift
- Loader, Programmable Kick Out
- Loader, Programmable Return To Dig
- Loader, single tilt
- Mirror, interior, rearview
- One-touch low idle
- Open circuit breather
- Pattern changer, in cab
- Power receptacle, 12 volt, 2 internal, 1 external
- Power receptacle, 5 volt USB, 1 internal
- Power steering, hydrostatic
- Product Link™, satellite, network manager
- Product Link, cellular, network manager
- Seat belt, retractable, 51 mm (2 in)

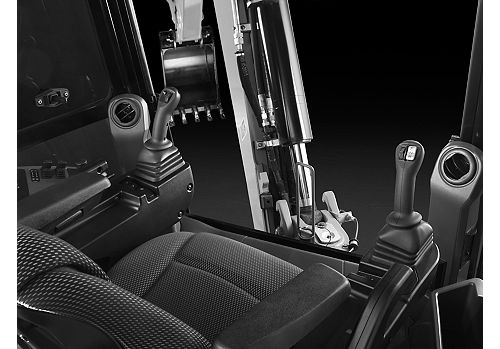

- Seat mounted joystick controls: backhoe and loader, EH operated, excavator style with pattern changer
- Socket, two roof
- Stabilizers, EH Control, Auto-UP
- Stabilizer shoes, street
- Steering knob

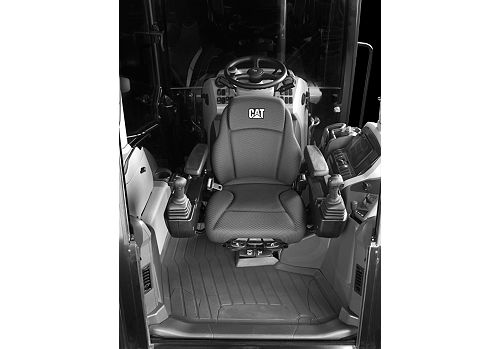

- Seat, air suspension, vinyl cover, with armrest
- Starting system, glow plugs
- Steering column, tilting, telescopic
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Swing transport lock
- Tires
- Toolbox, external, lockable
- Torque converter
- Throttle, hand and foot, electronic
- Transmission, 4 speed, powershift
- Transmission neutralizer switch
- Transport tie-downs
- Vandalism locks, four
- Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT
- Auxiliary hydraulics, loader, adjustable flow
- Auxiliary hydraulics, rear, adjustable flow
- Battery, additional, 850 CCA
- Cab, deluxe
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Fenders, front with integral steps
- Guard, boom protection plate
- Guard, stabilizer, rock
- Hydraulic valves, loader with auxiliary roller thumb control (3rd valve for MP or Quick Coupler)
- Hydraulic valves, backhoe (5th and 6th function)
- Hydraulic lines, combined function auxiliary
- LED lights, working (2 front, 2 rear)
- Quick Coupler, hydraulic, dual lock
- Quick Coupler, manual, dual lock
- Quick Coupler, manual, pin lock
- Radio and CD player, Bluetooth®
- Ride Control
- Rotating beacon, magnetic mount
- Seat, air suspension, fabric with armrest
- Seat, air suspension, fabric with armrest, heated
- Seat belt, retractable, 75 mm (3 in)
- Security system, Bluetooth
- Security system, operator display
- Side mirrors, cab, external
- Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
- Stabilizer pads, reversible
- Stick, extendible
- Touch screen LCD Display: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Transmission, AutoShift with lock-up torque converter, 6 speed
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

Grading Buckets

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in), Pin On, Bolt-On Cutting Edge	47.2 in / 1200 mm	14.6 ft³ / 413 l	632.7 lb / 287 kg
1500 mm (59 in), Pin On, Bolt-On Cutting Edge	59.1 in / 1500 mm	18.6 ft³ / 527 l	743 lb / 337 kg

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1550 mm (61 in), IT Coupler, Class III	35.3 in / 896 mm	61 in / 1550 mm	699.1 lb / 317.1 kg

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™

Ditch Cleaning Buckets

Provides optimum trenching, slope-cutting, grading and finishing work.

Model	Width	Capacity	Weight
1219 mm (48 in), Pin On	48 in / 1219 mm	13 ft³ / 368 l	451.9 lb / 205 kg
1372 mm (54 in), Pin On	54 in / 1372 mm	14.8 ft³ / 419 l	491.6 lb / 223 kg
1524 mm (60 in), Pin On	60 in / 1524 mm	16.7 ft³ / 473 l	529.1 lb / 240 kg

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A68, Pin On	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	415-444 Backhoe Loader Pin On
A68, 1/4 Yard Pin Lock	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	Backhoe Loader 1/4 yd Pin Lock

Cold Planers

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Model	Working Width	Maximum Cutting Depth	Required Hydraulics
PC404	17.7 in / 450 mm	4.9 in / 125 mm	Standard Flow

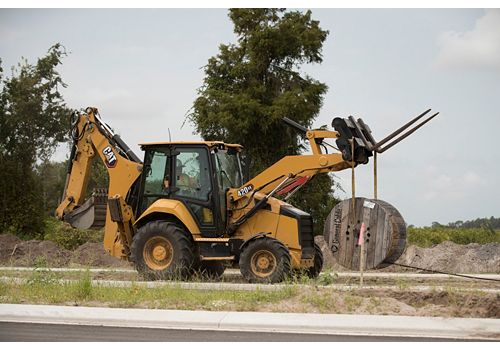

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1220 mm (48 in), IT Coupler, Class III	39.8 in / 1010 mm	74.8 in / 1900 mm	1192.7 lb / 541 kg

Soil Excavation Buckets

Ideal for use in a variety of conditions including heavy impact.

Model	Width	Capacity	Weight
457 mm (18 in) Pin On	18 in / 457 mm	6.4 ft³ / 181 l	335.1 lb / 152 kg
610 mm (24 in) Pin On	24 in / 610 mm	8.5 yd³ / 241 m³	394.6 lb / 179 kg
762 mm (30 in) Pin On	30 in / 762 mm	11.3 ft³ / 320 l	434.3 lb / 197 kg
914 mm (36 in) Pin On	36 in / 914 mm	13.4 ft³ / 380 l	491.6 lb / 223 kg

General Purpose Buckets

Load, carry, dump and perform general clean-up work.

Model	Width	Height	Weight
0.96 m3 (1.3 yd3), Single Tilt Pin On, Base Edge	89.1 in / 2262 mm	33.2 in / 843 mm	965 lb / 437.7 kg
0.96 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	33.9 in / 862 mm	1021 lb / 463.1 kg
1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth	89.1 in / 2262 mm	34.3 in / 871 mm	966.1 lb / 438.2 kg
1.0 m3 (1.3 yd3), Single Tilt Pin On, Base Edge	94.7 in / 2406 mm	33 in / 839 mm	988.1 lb / 448.2 kg
1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	33.8 in / 858 mm	1179 lb / 534.79 kg
1.0 m3 (1.31 yd3), IT Coupler, Base Edge	94.7 in / 2406 mm	39.7 in / 1009 mm	979.1 lb / 444.1 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge	89.1 in / 2262 mm	34.8 in / 884 mm	1011.9 lb / 459 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	35.6 in / 903 mm	1162 lb / 527.09 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth	89.1 in / 2262 mm	35.9 in / 911 mm	1063.1 lb / 482.2 kg
1.14 m3 (1.5 yd3), IT Coupler, Base Edge	94.7 in / 2406 mm	40.5 in / 1029 mm	2270.8 lb / 1030 kg
1.15 m3 (1.5 yd3), Single Tilt Pin On, Base Edge	94.7 in / 2406 mm	34.8 in / 884 mm	1056 lb / 479 kg
1.15 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	39.6 in / 1007 mm	1241 lb / 562.9 kg
1.15 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Teeth	94.7 in / 2406 mm	35.9 in / 911 mm	1112.2 lb / 504.5 kg

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model	Width	Height	Weight
1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge	94.7 in / 2406 mm	38.8 in / 985 mm	1593 lb / 722.59 kg
1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge, Forks	89.1 in / 2262 mm	56.8 in / 1443 mm	1819 lb / 825.09 kg
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks	89.1 in / 2262 mm	57.6 in / 1462 mm	1973.1 lb / 895 kg
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	39.5 in / 1004 mm	1742.1 lb / 790.2 kg
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth	89.1 in / 2262 mm	38.8 in / 985 mm	1642 lb / 744.79 kg
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Teeth, Forks	89.1 in / 2262 mm	57.9 in / 1470 mm	1873.9 lb / 850 kg
1.0 m3 (1.3 yd3), IT Coupler, Base Edge	89.1 in / 2262 mm	38.9 in / 988 mm	1548.9 lb / 702.59 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge	95.5 in / 2425 mm	38.8 in / 985 mm	1655 lb / 750.7 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Base Edge, Forks	95.5 in / 2425 mm	56.8 in / 1443 mm	2002.9 lb / 908.5 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks	95.5 in / 2425 mm	57.6 in / 1462 mm	2099 lb / 952.09 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Cutting Edge	95.5 in / 2425 mm	39.5 in / 1004 mm	1856.1 lb / 841.9 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth, Forks	95.5 in / 2425 mm	57.9 in / 1470 mm	1944 lb / 881.79 kg
1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth	95.5 in / 2425 mm	39.8 in / 1011 mm	1722 lb / 781.09 kg
1.1 m3 (1.4 yd3), IT Coupler, Base Edge	95.5 in / 2425 mm	38.9 in / 988 mm	1612 lb / 731.2 kg

Heavy Duty Buckets

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Model	Width	Capacity	Weight
300 mm (12 in), 96 L (3.4 ft3), Pin Lock, Weld-On Adapters	11.8 in / 300 mm	3.4 ft³ / 96 l	249.1 lb / 113 kg
305 mm (12 in), 79 L (2.8 ft3), Pin On, Weld-On Adapters	12 in / 305 mm	2.8 ft³ / 79 l	238.1 lb / 108 kg
406 mm (16 in), 120 L (4.2 ft3), Pin Lock, Weld-On Adapters	16 in / 406 mm	4.2 ft³ / 120 l	297.6 lb / 135 kg
406 mm (16 in), 105 L (3.7 ft3), Pin On, Weld-On Adapters	16 in / 406 mm	3.7 yd³ / 105 l	280 lb / 127 kg
457 mm (18 in), 139 L (4.9 ft3), Pin Lock, Weld-On Adapters	18 in / 457 mm	4.9 ft³ / 139 l	304.2 lb / 138 kg
457 mm (18 in), 119 L (4.2 ft3), Pin On, Weld-On Adapters	18 in / 457 mm	4.2 ft³ / 119 l	284.4 lb / 129 kg
610 mm (24 in), 207 L (7.3 ft3), Pin Lock, Weld-On Adapters	24 in / 610 mm	7.3 ft³ / 207 l	370.4 lb / 168 kg
610 mm (24 in), 176 L (6.2 ft3), Pin On, Weld-On Adapters	24 in / 610 mm	6.2 ft³ / 176 l	332.9 lb / 151 kg
762 mm (30 in), 280 L (9.9 ft3), Pin Lock, Weld-On Adapters	30 in / 762 mm	9.9 ft³ / 280 l	443.1 lb / 201 kg
762 mm (30 in), 232 L (8.2 ft3), Pin On, Weld-On Adapters	30 in / 762 mm	8.2 ft³ / 232 l	368.2 lb / 167 kg
914 mm (36 in), 340 L (12 ft3), Pin Lock, Weld-On Adapters	36 in / 914 mm	12 ft³ / 340 l	509.3 lb / 231 kg
914 mm (36 in), 292 L (10.3 ft3), Pin On, Weld-On Adapters	36 in / 914 mm	10.3 ft³ / 292 l	416.7 lb / 189 kg

High Capacity Buckets

Ideal for work in lower density soils and light materials.

Model	Width	Capacity	Weight
406 mm (16 in), 160 L (5.7 ft3), Pin Lock, Weld-On Adapters	16 in / 406 mm	5.7 ft³ / 160 l	337.3 lb / 153 kg
457 mm (18 in), 180 L (6.4 ft3), Pin Lock, Weld-On Adapters	18 in / 457 mm	6.4 ft³ / 180 l	357.1 lb / 162 kg
457 mm (18 in), 180 L (6.4 ft3), Pin On, Weld-On Adapters	18 in / 457 mm	6.4 ft³ / 180 l	321.9 lb / 146 kg
610 mm (24 in), 260 L (9.2 ft3), Pin Lock, Weld-On Adapters	24 in / 610 mm	9.2 ft³ / 260 l	427.7 lb / 194 kg
762 mm (30 in), 360 L (12.7 ft3), Pin Lock, Weld-On Adapters	30 in / 762 mm	12.7 ft³ / 360 l	489.4 lb / 222 kg
914 mm (36 in), 460 L (16.2 ft3), Pin Lock, Weld-On Adapters	36 in / 914 mm	16.2 ft³ / 460 l	560 lb / 254 kg
914 mm (36 in), 380 L (13.4 ft3), Pin On, Weld-On Adapters	36 in / 914 mm	13.4 ft³ / 380 l	471.8 lb / 214 kg
914 mm (36 in), 380 L (13.4 ft3), Pin On, Bolt-On Teeth	36 in / 914 mm	13.4 ft³ / 380 l	432.5 lb / 196.2 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Manual, Polypropylene/Wire	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm

Standard Duty Buckets

Designed for general light duty excavation in soft soil or clay.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	213.8 lb / 97 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	253.5 lb / 115 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	291 lb / 132 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	324.1 lb / 147 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	363.8 lb / 165 kg

Truss Booms

Lifts and places roof trusses, frames, beams and equipment.

Model	Overall Length	Capacity	Width
4m (13 ft) Truss Boom, IT Coupler	4 m / 13.1 ft	1102.3 lb / 500 kg	33.5 in / 850 mm

Lifting Hooks

Lift and place objects quickly around the job site.

Model	Overall Width	Weight	Overall Height
Lifting Hook 5000 kg (11023 lb)	27.2 in / 690 mm	216.1 lb / 98 kg	38.7 in / 982 mm

Heavy Duty Rock Buckets

Designed to work in the harsh rocky conditions found in various regions of the world.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.5 ft³ / 71 l	249.1 lb / 113 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.6 ft³ / 130 l	304.2 lb / 138 kg
610 mm (24 in), Pin On	24 in / 610 mm	7 ft³ / 198 l	381.4 lb / 173 kg
762 mm (30 in), Pin On	30 in / 762 mm	9.5 ft³ / 269 l	396.8 lb / 180 kg
914 mm (36 in), Pin On	36 in / 914 mm	11.5 ft³ / 325 l	451.9 lb / 205 kg

Coral Buckets

Designed to work in rocky coral conditions.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.3 ft³ / 65 l	271.2 lb / 123 kg
610 mm (24 in), Pin On	24 in / 610 mm	5 ft³ / 142 l	383.6 lb / 174 kg
762 mm (30 in), Pin On	30 in / 762 mm	6.7 ft³ / 190 l	440.9 lb / 200 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25, 12V or 24V	106.3 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm
