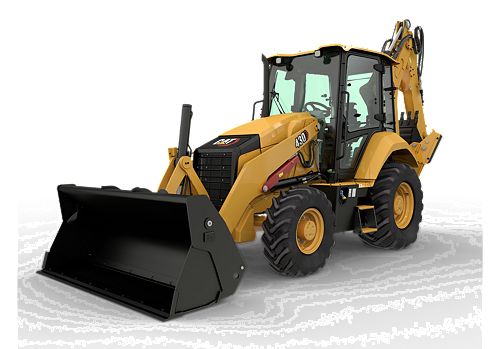

430

Net Power - SAE J1349:2011: 107 hp / 80 kW
Dig Depth - Standard: 15.1 ft / 4612 mm
Operating Weight - Maximum: 24251 lb / 11000 kg

The Cat^® 430 Backhoe Loader delivers exceptional performance, increased fuel efficiency, superior hydraulic system, versatility and an updated operator station.

Loan Calculator Credit Application

Build & Quote

430 Product Brochure Backhoe Loader Attachments Brochure Options And Accessories Kit Guide for Backhoe Loaders

Specifications
Equipment
Related Products

Engine
Net Power - SAE J1349:2011	107 hp / 80 kW
Displacement	220 in³ / 3.6 l
Net Torque Rise - 1,400 rpm - SAE J1349	358 ft-lb / 486 N·m
Power Rating Conditions - No De-Rating Required Up To	10000 ft / 3048 m
Net Power Rating at 2,200 rpm - ISO 9249	107 hp / 80 kW
Net Power Rating at 2,200 rpm - SAE J1349	107 hp / 80 kW
Emissions	Engine meets Tier 4 Final/Stage V emission standards.
Net Torque Rise - 1,400 rpm - SAE J1349	40%
Ratings at 2,200 rpm - Gross Power ISO 14396	115 hp / 86 kW
Ratings at 2,200 rpm - Gross Power SAE J1995	118 hp / 88 kW
Engine Model	C3.6 86 kW (115 hp) Electronic Turbo Intercooled
Dimensions - Stroke	4.72 in / 120 mm
Net Peak Power Rating @ 2,200 rpm - SAE J1349	107 hp / 80 kW
Dimensions - Bore	3.86 in / 98 mm
Net Peak Power Rating @ 2,200 rpm - ISO 9249	107 hp / 80 kW

Weights
Operating Weight - Maximum	24251 lb / 11000 kg
Cab - ROPS/FOPS	320 lb / 145 kg
Ride Control	33 lb / 15 kg
Air Conditioning	99 lb / 45 kg
Note (2)	**Minimum weight configuration is the same as configuration above, however, excludes counterweight, hoe bucket, and operator.
Operating Weight - Maximum - ROPS Capacity	24251 lb / 11000 kg
MP Bucket (0.96 m3/1.25 yd3) - Without Fold-Over Forks	1642 lb / 745 kg
Operating Weight - Estimated*	18051 lb / 8188 kg
MP Bucket (0.96 m3/1.25 yd3) - With Fold-Over Forks	2017 lb / 915 kg
Note (1)	*Machine configuration: standard stick hoe, OROPS canopy, AWD powershift shift transmission, 0.96 m3 (1.25 yd3) GP (General Purpose) loader bucket, 610 mm (24 in) standard duty hoe bucket, front 340/80-18 and rear 500/70-24 tires, 460 kg (1,014 lb) counterweight, 80 kg (176 lb) operator, full fuel tank.
All-Wheel Drive	STD
Operating Weight (minimum)**	16590 lb / 7525 kg
Loader QC	540 lb / 245 kg
Auto-Shift Transmission	STD
Counterweights, base - Maximum	1014 lb / 460 kg
Extendible Stick (excludes ft. counterweight)	655 lb / 297 kg
Counterweights, base - Stackable, one	529 lb / 240 kg
Counterweights, base	256 lb / 115 kg

Backhoe
Dig Depth - Standard	15.1 ft / 4612 mm

Transmission
Power-Shift Transmission with LTC - Optional - Forward - 5th LTC	18 mile/h / 29 km/h
Power Shift Transmission - Standard - Reverse - 3rd	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission with LTC - Optional - Forward - 6th	26 mile/h / 41 km/h
Power-Shift Transmission with LTC - Optional - Forward - 6th LTC*	25 mile/h / 40 km/h
Power Shift Transmission - Standard - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power Shift Transmission - Standard - Forward - 4th	26 mile/h / 41 km/h
Power Shift Transmission - Standard - Reverse - 2nd	7.7 mile/h / 12.4 km/h
Power-Shift Transmission - Optional - Reverse - 3rd	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Forward - 2nd	5.9 mile/h / 9.5 km/h
Power Shift Transmission - Standard - Forward - 1st	3.7 mile/h / 5.9 km/h
Power Shift Transmission - Standard - Forward - 3rd	12 mile/h / 20 km/h
Power-Shift Transmission with LTC - Optional - Forward - 1st	3.7 mile/h / 5.9 km/h
Power Shift Transmission - Standard - Forward - 2nd	5.9 mile/h / 9.5 km/h
Power-Shift Transmission - Optional - Reverse - 2nd	7.7 mile/h / 12 km/h
Power-Shift Transmission - Optional - Forward - 4th	12 mile/h / 20 km/h
Power-Shift Transmission - Optional - Forward - 5th	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Forward - 3rd	8 mile/h / 12 km/h
Power-Shift Transmission with LTC - Optional - Forward - 5th	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 2nd	7.7 mile/h / 12 km/h
Power-Shift Transmission - Optional - Reverse - 1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission - Optional - Forward - 2nd	5.9 mile/h / 9.5 km/h
Power-Shift Transmission - Optional - Forward -1st	3.7 mile/h / 5.9 km/h
Power-Shift Transmission with LTC - Optional - Reverse - 3rd	17 mile/h / 27 km/h
Power-Shift Transmission with LTC - Optional - Forward - 4th	12 mile/h / 20 km/h
Power-Shift Transmission - Optional - Forward - 6th	26 mile/h / 41 km/h
Power-Shift Transmission - Optional - Forward - 3rd	8 mile/h / 12 km/h
Note (1)	*Travel speeds of backhoe loader at full throttle, when equipped with 500/70-24 rear tires.
Note (2)	**Limited by engine speed to 40 km/h (25 mph).

Axle Ratings
Front Axle, AWD - Static	51808 lb / 23500 kg
Rear Axle - Dynamic	22046 lb / 10000 kg
Front Axle, AWD - Dynamic	19841 lb / 9000 kg
Rear Axle - Static	58422 lb / 26500 kg

Hydraulic System
Pump Type	Variable-flow, Axial Piston
System Pressure - Backhoe	3626 psi / 25000 kPa
Pump Capacity at 2,200 rpm	49.4 gal/min / 187 l/min
Type	Closed Center
System Pressure - Loader	3626 psi / 25000 kPa

Steering
Bore	2.6 in / 65 mm
Stroke	4.2 in / 106 mm
Turning Circle - (inner wheel not braked) - Outside Widest Loader Bucket	35.25 ft / 10.745 m
Axle Oscillation	11°
Power Steering	Hydrostatic
Turning Circle - (inner wheel not braked) - Outside Front Wheels	26.92 ft / 8.205 m
Rod Diameter	1.6 in / 40 mm
Type	Front Wheel Steering
Cylinder	One Double-Acting

Service Refill Capacities
Diesel Exhaust Fluid (DEF)	5 gal (US) / 19 l
Transmission - Power Shift - AWD	5 gal (US) / 19 l
Front Axle (AWD)	2.9 gal (US) / 11 l
Front Axle (AWD) - Planetaries	0.2 gal (US) / 0.7 l
Transmission - Power Shuttle - AWD	4.8 gal (US) / 18 l
Engine Oil - With Filter	2.4 gal (US) / 9 l
Rear Axle - Planetaries	0.4 gal (US) / 1.7 l
Cooling System with Air Conditioning	4.8 gal (US) / 18 l
Rear Axle	4.2 gal (US) / 16 l
Fuel Tank	42.3 gal (US) / 160 l
Hydraulic System	25.1 gal (US) / 95 l
Hydraulic Tank	11.1 gal (US) / 42 l

Sustainability
Recyclability	92%

Standard Equipment

STANDARD EQUIPMENT
- Adjustable auxiliary controls, backhoe loader
- Air cleaner
- Alarm, back-up
- Audible system fault alarm
- Automatic Engine Speed Control (AESC)
- Battery, maintenance-free, 850 CCA
- Battery disconnect switch
- Boom transport lock
- Brace, lift cylinder
- Brake, parking, Spring Applied Hydraulically Released (SAHR)
- Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
- Bucket level indicator
- Canopy, ROPS/FOPS
- Cat cushion swing system
- Coat restraint
- Coolant/antifreeze, extended life
- Dome light (cab only)
- Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
- Differential lock, loader joystick
- Drink holders, two
- Engine, Cat C3.6 ACERT (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)
- Engine enclosure, sound suppression, removable side panels
- Face seals, O-ring
- Fan, suction and guard
- Fast reversing shuttle, all gears
- Fenders, rear
- Filters, spin-on: fuel, engine oil, transmission oil, water separator
- Filters, bowl and cartridge: hydraulic fluid
- Flashing hazards/signal lights
- Floor mat
- Fuel tank, fully enclosed
- Four wheel drive
- Four wheel drive shaft guard
- Fully hinged front grill for cooling package cleaning access
- Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
- Ground level fuel fill and DEF fill
- Halogen lights, working (2 front, 2 rear)
- High ambient cooling package
- Hood lock, inside cab
- Hydraulic hose, XT™
- Hydraulic oil cooler
- Hydraulic oil level sight gauge
- Hydraulic valves, loader 2 function
- Hydraulic valves, backhoe 4 function
- Hydraulics, load sensing with variable displacement piston pump
- Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
- Instrument panel lights
- Joystick controls: pilot operated, excavator-style with pattern changer
- Key start/stop system
- LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info
- Loader, self-leveling, return-to-dig and transmission disconnect switch
- Loader, single tilt
- Mirror, interior, rearview
- One-touch low idle
- Open circuit breather
- Pattern changer, in cab
- Power receptacle, 5 volt USB, 1 internal
- Power receptacle, 12 volt, 2 internal, 1 external
- Power steering, hydrostatic
- Product Link™, satellite, network manager
- Product Link, cellular, network manager
- Seat belt, retractable, 51 mm (2 in)
- Socket, two roof
- Stabilizer shoes, street
- Steering knob
- Seat, air suspension, vinyl cover, with armrest
- Stabilizers, EH Control, Auto-UP
- Starting system, glow plugs
- Steering column, tilting, telescopic
- Storage compartment, lockable
- Storage tray
- Stop and tail lights
- Swing transport lock
- Tires
- Toolbox, external, lockable
- Torque converter
- Throttle, hand and foot, electronic
- Transmission, 4 speed, powershift
- Transmission neutralizer switch
- Transport tie-downs
- Vandalism locks, four
- Warning horn, electric

Optional Equipment

OPTIONAL EQUIPMENT
- Auxiliary hydraulics, loader, adjustable flow
- Auxiliary hydraulics, rear, adjustable flow
- Battery, additional, 850 CCA
- Cab, deluxe
- Cold weather fuel (–30° C/–22° F)
- Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
- Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
- Fenders, front with integral steps
- Guard, boom protection plate
- Guard, stabilizer, rock
- Hydraulic valves, loader with auxiliary thumb control (3rd valve for MP or Quick Coupler)
- Hydraulic valves, backhoe (5th and 6th function)
- Hydraulic lines, combined function auxiliary
- LED lights, working (2 front, 2 rear)
- Quick Coupler, hydraulic, dual lock
- Quick Coupler, manual, dual lock
- Quick Coupler, manual, pin lock
- Radio and CD player, Bluetooth®
- Ride Control
- Rotating beacon, magnetic mount
- Seat, air suspension, fabric with armrest
- Seat, air suspension, fabric with armrest, heated
- Seat belt, retractable, 75 mm (3 in)
- Security system, Bluetooth
- Security system, operator display
- Side mirrors, cab, external
- Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface
- Stabilizer pads, reversible
- Stick, extendible
- Transmission, AutoShift with lock-up torque converter, 6 speed
- Vandalism protection, gauge cover
- Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

Grading Buckets

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in), Pin On	47.2 in / 1200 mm	14.6 ft³ / 413 l	632.7 lb / 287 kg
1500 mm (59 in), Pin On	59.1 in / 1500 mm	18.6 ft³ / 527 l	743 lb / 337 kg

Pallet Fork Carriages

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1550 mm (61 in)	35.3 in / 896 mm	61 in / 1550 mm	699.1 lb / 317.1 kg

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Ditch Cleaning Buckets

Provides optimum trenching, slope-cutting, grading and finishing work.

Model	Width	Capacity	Weight
1219 mm (48 in), Pin On	48 in / 1219 mm	13 ft³ / 368 l	451.9 lb / 205 kg
1372 mm (54 in), Pin On	54 in / 1372 mm	14.8 ft³ / 419 l	491.6 lb / 223 kg
1524 mm (60 in), Pin On	60 in / 1524 mm	16.7 ft³ / 473 l	529.1 lb / 240 kg

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A68	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	415-444 Backhoe Loader Pin On
A68 Pin Lock	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	Backhoe Loader 1/4 yd Pin Lock

Cold Planers

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Model	Working Width	Maximum Cutting Depth	Required Hydraulics
PC404	17.7 in / 450 mm	4.9 in / 125 mm	Standard Flow

Pallet Forks

Pallet forks are for moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Model	Height	Width	Weight
1220 mm (48 in)	39.8 in / 1010 mm	74.8 in / 1900 mm	1192.7 lb / 541 kg

Soil Excavation Buckets

Ideal for use in a variety of conditions including heavy impact.

Model	Width	Capacity	Weight
457 mm (18 in) Pin On	18 in / 457 mm	6.4 ft³ / 181 l	335.1 lb / 152 kg
610 mm (24 in) Pin On	24 in / 610 mm	8.5 ft³ / 241 l	394.6 lb / 179 kg
762 mm (30 in) Pin On	30 in / 762 mm	11.3 ft³ / 320 l	434.3 lb / 197 kg
914 mm (36 in) Pin On	36 in / 914 mm	13.4 ft³ / 380 l	491.6 lb / 223 kg

General Purpose Buckets

Load, carry, dump and perform general clean-up work.

Model	Width	Height	Weight
0.76 m3 (1.0 yd3), Pin On	89.1 in / 2262 mm	29.8 in / 758 mm	776 lb / 352 kg
0.76 m3 (1.0 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	30.6 in / 777 mm	975.5 lb / 442.5 kg
1.0 m3 (1.3 yd3), Pin On	89.1 in / 2262 mm	33.2 in / 843 mm	965 lb / 437.7 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	33.9 in / 862 mm	1021 lb / 463.1 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	34.3 in / 871 mm	966.1 lb / 438.2 kg
1.0 m3 (1.3 yd3), Pin On	94.7 in / 2406 mm	33 in / 839 mm	988.1 lb / 448.2 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	33.8 in / 858 mm	1179 lb / 534.79 kg
1.0 m3 (1.31 yd3), IT Coupler	94.7 in / 2406 mm	39.7 in / 1009 mm	979.1 lb / 444.1 kg
1.0 m3 (1.3 yd3), Pin On	94.7 in / 2406 mm	33 in / 839 mm	972.2 lb / 441 kg
1.1 m3 (1.4 yd3), Pin On	89.1 in / 2262 mm	34.8 in / 884 mm	1011.9 lb / 459 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	35.5 in / 903 mm	1162 lb / 527.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	35.9 in / 911 mm	1063.1 lb / 482.2 kg
1.14 m3 (1.5 yd3), IT Coupler	94.7 in / 2406 mm	40.5 in / 1029 mm	2270.8 lb / 1030 kg
1.15 m3 (1.5 yd3), Pin On	94.7 in / 2406 mm	34.8 in / 884 mm	1056 lb / 479 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	39.6 in / 1007 mm	1241 lb / 562.9 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Teeth	94.7 in / 2406 mm	35.9 in / 911 mm	1112.2 lb / 504.5 kg
1.34 m3 (1.75 yd3), Pin On	95.8 in / 2434 mm	39.4 in / 1002 mm	1472.9 lb / 668.09 kg
1.34 m3 (1.75 yd3), Pin On	96 in / 2438 mm	42.6 in / 1081 mm	2226.7 lb / 1010 kg
1.53 m3 (2.0 yd3), Pin On	96 in / 2438 mm	43.4 in / 1103 mm	2403 lb / 1090 kg

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model	Height	Weight
1.03 m3 (1.35 yd3), Pin On	38.8 in / 985 mm	1593 lb / 722.59 kg
1.03 m3 (1.35 yd3), Pin On	56.8 in / 1443 mm	1819 lb / 825.09 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge	57.6 in / 1462 mm	1973.1 lb / 895 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge	39.5 in / 1004 mm	1742.1 lb / 790.2 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth	38.8 in / 985 mm	1642 lb / 744.79 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth	57.9 in / 1470 mm	1873.9 lb / 850 kg
1.0 m3 (1.3 yd3), IT Coupler	38.9 in / 988 mm	1548.9 lb / 702.59 kg
1.1 m3 (1.4 yd3), Pin On	38.8 in / 985 mm	1655 lb / 750.7 kg
1.1 m3 (1.4 yd3), Pin On	56.8 in / 1443 mm	2002.9 lb / 908.5 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	57.6 in / 1462 mm	2099 lb / 952.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	39.5 in / 1004 mm	1856.1 lb / 841.9 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	57.9 in / 1470 mm	1944 lb / 881.79 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	39.8 in / 1011 mm	1722 lb / 781.09 kg
1.1 m3 (1.4 yd3), IT Coupler	38.9 in / 988 mm	1612 lb / 731.2 kg
1.14 m3 (1.5 yd3), Pin On	41.7 in / 1059 mm	2104.9 lb / 954.79 kg
1.14 m3 (1.5 yd3), Pin On	41.7 in / 1059 mm	2455.9 lb / 1114 kg

Heavy Duty Buckets

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Model	Width	Capacity	Weight
300 mm (12 in), Pin Lock	11.8 in / 300 mm	3.4 ft³ / 96 l	249.1 lb / 113 kg
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	238.1 lb / 108 kg
406 mm (16 in), Pin Lock	16 in / 406 mm	4.2 ft³ / 120 l	297.6 lb / 135 kg
406 mm (16 in), Pin On	16 in / 406 mm	3.7 ft³ / 105 l	280 lb / 127 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	4.9 ft³ / 139 l	304.2 lb / 138 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	284.4 lb / 129 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	7.3 ft³ / 207 l	370.4 lb / 168 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	332.9 lb / 151 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	9.9 ft³ / 280 l	443.1 lb / 201 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	368.2 lb / 167 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	12 ft³ / 340 l	509.3 lb / 231 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	416.7 lb / 189 kg

High Capacity Buckets

Ideal for work in lower density soils and light materials.

Model	Width	Capacity	Weight
406 mm (16 in), Pin Lock	16 in / 406 mm	5.7 ft³ / 160 l	337.3 lb / 153 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	6.4 ft³ / 180 l	357.1 lb / 162 kg
457 mm (18 in), Pin On	18 in / 457 mm	6.4 ft³ / 181 l	321.9 lb / 146 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	9.2 ft³ / 260 l	427.7 lb / 194 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	12.7 ft³ / 360 l	489.4 lb / 222 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	16.2 ft³ / 460 l	560 lb / 254 kg
914 mm (36 in), Pin On	36 in / 914 mm	13.4 ft³ / 380 l	471.8 lb / 214 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Manual	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm

Standard Duty Buckets

Designed for general light duty excavation in soft soil or clay.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	213.8 lb / 97 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	253.5 lb / 115 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	291 lb / 132 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	324.1 lb / 147 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	363.8 lb / 165 kg

Rippers

For land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Combine with a coupler for Rip & Load productivity.

Model	Shank Length	Weight	Overall Length
639 mm (25 in)	25.2 in / 639 mm	240.3 lb / 109 kg	32.8 in / 833 mm

Truss Booms

Lifts and places roof trusses, frames, beams and equipment.

Model	Overall Length	Capacity	Width
4 m (13 ft) Truss Boom	4 m / 13.1 ft	1102.3 lb / 500 kg	33.5 in / 850 mm

Heavy Duty Rock Buckets

Designed to work in the harsh rocky conditions found in various regions of the world.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.5 ft³ / 71 l	249.1 lb / 113 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.6 ft³ / 130 l	304.2 lb / 138 kg
610 mm (24 in), Pin On	24 in / 610 mm	7 ft³ / 198 l	381.4 lb / 173 kg
762 mm (30 in), Pin On	30 in / 762 mm	9.5 ft³ / 269 l	396.8 lb / 180 kg
914 mm (36 in), Pin On	36 in / 914 mm	11.5 ft³ / 325 l	451.9 lb / 205 kg

Coral Buckets

Designed to work in rocky coral conditions.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.3 ft³ / 65 l	271.2 lb / 123 kg
610 mm (24 in), Pin On	24 in / 610 mm	5 ft³ / 142 l	383.6 lb / 174 kg
762 mm (30 in), Pin On	30 in / 762 mm	6.7 ft³ / 190 l	440.9 lb / 200 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25	78.3 in / 2700 mm	60 in / 2500 mm	26 in / 700 mm

430
