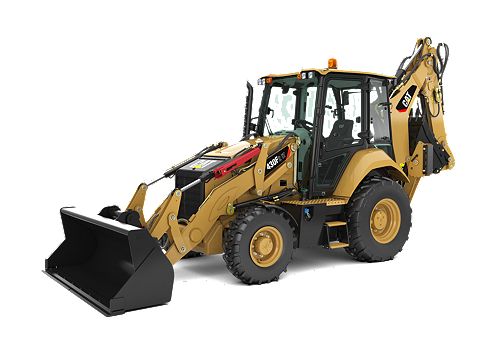

430F2/430F2 IT

Specifications
Equipment
Related Products

Engine
Net Power - SAE J1349	108 HP / 80 kW
Bore	4.13 in / 105 mm
Stroke	5 in / 127 mm
Displacement	268 in³ / 4.4 B
Net Power - 2,200 rpm - SAE J1349	108 HP / 80 kW
Net Peak Power - 1,800 rpm - SAE J1349	110 HP / 82 kW
Gross Power - SAE J1995	117 HP / 87 kW
Net Peak Power - 1,800 rpm - EEC 80/1269	111 HP / 83 kW
Rated Net Power - 2,200 rpm - EEC 80/1269	109 HP / 81 kW
Engine Model	Cat® C4.4 ACERT™
Gross Power - ISO 14396	115 HP / 86 kW
Rated Net Power - 2,200 rpm - ISO 9249	109 HP / 81 kW
Net Peak Power - 1,800 rpm - ISO 9249	111 HP / 83 kW
Net Torque Rise - 1,400 rpm - SAE J1349	39%
Rated Net Power - ISO 9249	109 HP / 81 kW
Rated Net Power - SAE J1349	108 HP / 80 kW
Net Peak Torque - 1,400 rpm	360 ft-lb / 488 N·m
Note	Engine meets Tier 4 Final emission standards.

Weights
Operating Weight - Maximum	24251 lb / 11000 kg
Cab - ROPS/FOPS	359 lb / 163 kg
Ride Control	31 lb / 14 kg
Counterweights - Option 1	255 lb / 115 kg
Air Conditioning	93 lb / 42 kg
Counterweights - Option 2	530 lb / 240 kg
Counterweights - Option 3	1015 lb / 460 kg
Auto-Shift Transmission	525 lb / 238 kg
Extendible Stick	673 lb / 305 kg
MP Bucket (0.96 m3/1.25 yd3) - No Forks or Teeth	1642 lb / 745 kg
Loader, IT with Quick Coupler	699 lb / 317 kg
Operating Weight - Maximum - ROPS Capacity	24251 lb / 11000 kg

Backhoe
Dig Depth - Standard	15.4 ft / 4686 mm
Dig Depth - E-Stick Extended	19.5 ft / 5935 mm

Hydraulic System
Pump Type	Variable Flow, Axial Piston
Pump Capacity at 2,200 rpm	43 gal/min / 163 l/min
Type	Closed Center
System Pressure - Loader	3600 psi / 25000 kPa
System Pressure - Backhoe	3600 psi / 25000 kPa

Transmission
Auto-Shift - Optional - Forward 6th	25 mile/h / 40 km/h
Auto-Shift - Optional - Forward 1st	3.6 mile/h / 5.8 km/h
Power Shuttle Transmission - Reverse 1st	3.4 mile/h / 5.4 km/h
Power Shuttle Transmission - Reverse 4th	25 mile/h / 40 km/h
Auto-Shift - Optional - Reverse 2nd	7.6 mile/h / 12 km/h
Auto-Shift - Optional - Forward 4th	12 mile/h / 19 km/h
Auto-Shift - Optional - Forward 5th	16 mile/h / 26 km/h
Power Shuttle Transmission - Forward 4th	25 mile/h / 40 km/h
Power Shuttle Transmission - Forward 2nd	5.6 mile/h / 9 km/h
Auto-Shift - Optional - Forward 2nd	5.7 mile/h / 9.3 km/h
Power Shuttle Transmission - Forward 3rd	13 mile/h / 21 km/h
Auto-Shift - Optional - Reverse 1st	3.6 mile/h / 5.8 km/h
Power Shuttle Transmission - Reverse 2nd	5.6 mile/h / 9 km/h
Power Shuttle Transmission - Reverse 3rd	13 mile/h / 21 km/h
Auto-Shift - Optional - Forward 3rd	7 mile/h / 12 km/h
Power Shuttle Transmission - Forward 1st	3.4 mile/h / 5.4 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 1st	3.6 mile/h / 5.8 km/h
Auto-Shift - Optional - Reverse 3rd	17 mile/h / 28 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th	25 mile/h / 40 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 2nd	5.7 mile/h / 9.3 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th LUC	15 mile/h / 25 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 1st	3.6 mile/h / 5.8 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 4th	12 mile/h / 19 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 3rd	7 mile/h / 12 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 3rd	17 mile/h / 28 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 6th LUC	25 mile/h / 40 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Reverse - 2nd	7.6 mile/h / 12 km/h
Auto-Shift Transmission - With Lock-Up Torque Converter - Optional: Forward - 5th	14 mile/h / 23 km/h

Service Refill Capacities
Rear Axle - Planetaries	0.4 gal (US) / 1.7 B
Hydraulic System	25.1 gal (US) / 95 B
Fuel Tank	42 gal (US) / 160 B
Cooling System with Air Conditioning	5.9 gal (US) / 22.5 B
Transmission - Power Shuttle - 4WD	4 gal (US) / 15 B
Rear Axle	4.4 gal (US) / 16.5 B
Diesel Exhaust Fluid*	5 gal (US) / 19 B
Transmission - Auto-Shift - 4WD	4.8 gal (US) / 18 B
Front Axle (4WD)	2.9 gal (US) / 11 B
Front Axle (4WD) - Planetaries	0.2 gal (US) / 0.7 B
Engine Oil - With Filter	2.3 gal (US) / 8.8 B
Hydraulic Tank	10.6 gal (US) / 40 B
Note (1)	* Must meet the requirements outlined in ISO 22241.
Note (2)	Requires ultra-low sulfur fuel less than or equal to 15 ppm fuel sulfur.

Axle Ratings
Front Axle (2WD) - Dynamic	20233 lb / 9186 kg
Rear Axle - Dynamic	20233 lb / 9186 kg
Front Axle (4WD) - Dynamic	20233 lb / 9186 kg
Rear Axle - Static	50582 lb / 22964 kg
Front Axle (2WD) - Static	50582 lb / 22964 kg
Front Axle (4WD) - Static	50582 lb / 22964 kg
Axle Oscillation	10 Degrees

Steering
Bore	2.6 in / 65 mm
Power Steering	Hydrostatic
Rod Diameter	1.4 in / 36 mm
Turning Circle - 4WD (inner wheel not braked) - Outside, Widest Loading Bucket	36 ft / 10.97 m
Stroke	4.7 in / 120 mm
Axle Oscillation	11°
Turning Circle - 4WD (inner wheel not braked) - Outside, Front Wheels	26.8 ft / 8.18 m
Type	Front Wheel

Standards
Cab - ROPS	SAE J1040 MAY94; ISO 3741 1994
Cab - FOPS	SAE J/ISO 3449 APR98 LEVEL II and ISO 3449: 1992 LEVEL II
Cab - Sound	ANSI/SAE J1166 OCT98 is 79 dB(A)
Brakes	SAE J/ISO 3450; ISO 3450 1996
Exterior Sound	SAE J188 JUN86 is 76 dB(A)

Engine Features
Feature (7)	Cylinder head is high strength, cast iron alloy construction with extra duty wall and deck thickness.
Feature (6)	Cylinder block is high strength, cast iron alloy of deep skirt, monobloc design for increased strength and long life.
Feature (15)	Engine is equipped with electric fuel priming pump.
Feature (8)	Cylinder head's intake and exhaust ports are precision cast to promote optimum gas flow.
Feature (13)	High contact ratio/gear train, peripheral fixed isolation top cover and open deck block design reduce bare engine noise.
Feature (3)	Forged chrome/molybdenum-steel crankshaft with crankshaft with either induction hardened or nitrocarburized journals.
Feature (14)	Higher low end torque for better engine/machine performance.
Feature (12)	Standard glow plug starting aid system for efficient cold weather starting.
Feature (4)	Front and rear crankshaft oil seals are “lip” type Viton and PTFE designs featuring an integral dust lip.
Feature (5)	Heat resistant, silicone-chrome steel intake and STELLITE-faced exhaust valves provide long life.
Feature (2)	Three-ring pistons made of lightweight, silicon/aluminum alloy for strength and maximum thermal conductivity.
Feature (10)	Dry-type axial seal air cleaner with integral precleaner, automatic dust ejection system, and filter condition indicator.
Feature (9)	Direct injection fuel system provides accurate fuel delivery; remote mounted electric lift pump improves serviceability.
Feature (11)	Direct electric, 12-volt starting and charging system with 880 CCA Group 31 maintenance free battery.
Feature (1)	Regeneration is passive and does not require any input from the operator or disrupt work.

Tires
Choice 3	Front: 340/80R18; Rear: 19.5L-24 (12 ply) R4 ATU
Choice 4	Front: 340/80R18; Rear: 500/70R24 RT
Choice 2	Front: 12.5/80-18 NHS (12 ply) 1-3; Rear: 21L-24 (16 ply) R4 ATU
Choice 1	Front: 12.5/80-18 (12 ply) 1-3; Rear: 19.5L-24 (12 ply) ATU

Brakes
Feature (1)	Brakes meet the following standards: SAE J1473 and ISO 3450 requirements.
Feature (2)	Self-adjusting, completely enclosed and sealed.
Feature (4)	Parking/secondary brakes are independent of the service brake system.
Feature (5)	Parking brake is mechanically applied through an adjustable hand lever located on the right console.
Feature (3)	Foot operated brake pedals can be interlocked for roading.

Standard Equipment

Adjustable auxiliary controls, backhoe loader
Air cleaner
Alarm, back-up
Alternator, 150 amp
Audible system fault alarm
Automatic Engine Speed Control (AESC)
Battery, maintenance-free, 880 CCA
Battery disconnect switch
Battery remote jumpstart
Boom transport lock
Brace, lift cylinder
Brake, secondary parking
Brakes, hydraulically boosted, oil disc, dual pedals, interlocking
Bucket level indicator
Canopy, ROPS/FOPS
Cat cushion swing system
Coat restraint
Coolant/antifreeze, extended life
Counterweight, bumper
Dome light (cab only)
Diagnostic port for engine, machine and gauge cluster Electronic Control Modules
Differential lock, loader joystick
Engine, Cat C4.4 ACERT (Direct Injection Turbocharged), meets Tier 4 Final emission standards, selective catalyst reduction, diesel oxidation catalyst (DOC)
Engine enclosure, sound suppression removal panels
Face seals, O-ring
Fan, suction and guard
Fast reversing shuttle, all gears
Fenders, rear
Filters, spin-on: fuel, engine oil, transmission oil, water separator
Filters, bowl and cartridge: hydraulic fluid
Flashing hazards/signal lights
Floor mat
Four Wheel Drive
Fuel tank, fully enclosed
Fully hinged front grill for cooling package cleaning access
Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level
Ground level fuel fill and DEF fill
High ambient cooling package
Hood lock, inside cab
Hydraulic hose, XT™
Hydraulic oil cooler
Hydraulic oil level sight gauge
Hydraulic valve, hydrostatic steering
Hydraulic valves, loader 2 function
Hydraulic valves, backhoe 5 function
Hydraulics, load sensing with variable displacement piston pump
Indicator lights: Eco mode active, water in fuel, remote dial throttle active, engine warning, warning lamp, emissions module malfunction, AESC active, low battery/charging system warning, high hydraulic oil temperature; LCD warnings: engine oil pressure, machine locked (if equipped), service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass
Instrument panel lights
Joystick controls: pilot operated, excavator-style with pattern changer
Key start/stop system
LCD screen: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, oil life reset, DPF force regeneration, maintenance intervals, ECM/system info
Lights, working (4 front, 4 rear)
Loader, self-leveling, return-to-dig and transmission disconnect switch
Loader, single tilt
Mirror, rearview
One-touch low idle
Open circuit breather
Pattern changer, in cab
Power receptacle, 12 volt, 2 internal, 1 external
Power steering, hydrostatic
Radio ready cab
Seat belt, retractable, 51 mm (2 in)
Socket, two roof
Stabilizer shoes, street
Steering knob
Seat, air suspension, fabric or vinyl cover, with armrest
Starting system, glow plugs
Steering, hydrostatic
Storage compartment, lockable
Storage tray
Stop and tail lights
Swing transport lock
Tilt steering wheel
Tires
Toolbox, external, lockable
Torque converter
Throttle, hand and foot, electronic
Transmission, four speed, syncromesh
Transmission neutralizer switch
Transport tie-downs
Vandalism locks, four
Warning horn, electric

Optional Equipment

Battery, additional, 880 CCA
Cab, deluxe
Cold weather fuel (–30° C/–22° F)
Cold weather package, including additional battery, engine block heater, radiator antifreeze, cold weather fuel (–30° C/–22° F) and mounting for an ether bottle
Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)
Fenders, front with integral steps
Guard, boom protection plate
Guard, stabilizer, rock
Hydraulic valves, loader (3rd valve for GP, MP or Quick Coupler)
Hydraulic valves, backhoe 6 function
Hydraulic lines, combined function auxiliary
Loader, IT with Quick Coupler and pilot loader control
Product Link, satellite, PL631E
Product Link, cellular, PL641I
Quick Coupler, hydraulic, dual lock
Quick Coupler, manual, dual lock
Quick Coupler, pin lock
Radio and CD player
Radio and CD player, Bluetooth
Ride Control
Rotating beacon, magnetic mount
Seat belt, 75 mm (3 in)
Seat, heated
Security system keypad
Stabilizer pads, reversible
Stick, extendible
Storage box
Transmission, AutoShift
Transmission, AutoShift with lock-up torque converter
Vandalism protection, gauge cover
Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.

Grading Buckets

For cleaning ditches, sloping, grading and other finishing work.

Model	Width	Capacity	Weight
1200 mm (47 in), Pin On	47.2 in / 1200 mm	14.6 ft³ / 413 l	632.7 lb / 287 kg
1500 mm (59 in), Pin On	59.1 in / 1500 mm	18.6 ft³ / 527 l	743 lb / 337 kg

Ditch Cleaning Buckets

Provides optimum trenching, slope-cutting, grading and finishing work.

Model	Width	Capacity	Weight
1219 mm (48 in), Pin On	48 in / 1219 mm	13 ft³ / 368 l	451.9 lb / 205 kg
1372 mm (54 in), Pin On	54 in / 1372 mm	14.8 ft³ / 419 l	491.6 lb / 223 kg
1524 mm (60 in), Pin On	60 in / 1524 mm	16.7 ft³ / 473 l	529.1 lb / 240 kg

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A68	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	415-444 Backhoe Loader Pin On
A68 Pin Lock	5037.5 lb/ft / 6830 N·m	Gerotor Motor - Double Planetary Reduction	Backhoe Loader 1/4 yd Pin Lock

Cold Planers

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Model	Working Width	Maximum Cutting Depth	Required Hydraulics
PC404	17.7 in / 450 mm	4.9 in / 125 mm	Standard Flow

Soil Excavation Buckets

Ideal for use in a variety of conditions including heavy impact.

Model	Width	Capacity	Weight
457 mm (18 in) Pin On	18 in / 457 mm	6.4 ft³ / 181 l	335.1 lb / 152 kg
610 mm (24 in) Pin On	24 in / 610 mm	8.5 ft³ / 241 l	394.6 lb / 179 kg
762 mm (30 in) Pin On	30 in / 762 mm	11.3 ft³ / 320 l	434.3 lb / 197 kg
914 mm (36 in) Pin On	36 in / 914 mm	13.4 ft³ / 380 l	491.6 lb / 223 kg

General Purpose Buckets

Load, carry, dump and perform general clean-up work.

Model	Width	Height	Weight
0.76 m3 (1.0 yd3), Pin On	89.1 in / 2262 mm	29.8 in / 758 mm	776 lb / 352 kg
0.76 m3 (1.0 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	30.6 in / 777 mm	975.5 lb / 442.5 kg
1.0 m3 (1.3 yd3), Pin On	89.1 in / 2262 mm	33.2 in / 843 mm	965 lb / 437.7 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	33.9 in / 862 mm	1021 lb / 463.1 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	34.3 in / 871 mm	966.1 lb / 438.2 kg
1.0 m3 (1.3 yd3), Pin On	94.7 in / 2406 mm	33 in / 839 mm	988.1 lb / 448.2 kg
1.0 m3 (1.3 yd3), Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	33.8 in / 858 mm	1179 lb / 534.79 kg
1.1 m3 (1.4 yd3), Pin On	89.1 in / 2262 mm	34.8 in / 884 mm	1011.9 lb / 459 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	35.5 in / 903 mm	1162 lb / 527.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	35.9 in / 911 mm	1063.1 lb / 482.2 kg
1.15 m3 (1.5 yd3), Pin On	94.7 in / 2406 mm	34.8 in / 884 mm	1056 lb / 479 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Cutting Edge	94.7 in / 2406 mm	39.6 in / 1007 mm	1241 lb / 562.9 kg
1.15 m3 (1.5 yd3), Pin On, Bolt-On Teeth	94.7 in / 2406 mm	35.9 in / 911 mm	1112.2 lb / 504.5 kg
1.34 m3 (1.75 yd3), Pin On	95.8 in / 2434 mm	39.4 in / 1002 mm	1472.9 lb / 668.09 kg
1.0 m3 (1.3 yd3), Pin On	94.7 in / 2406 mm	33 in / 839 mm	972.2 lb / 441 kg
1.34 m3 (1.75 yd3), Pin On	96 in / 2438 mm	42.6 in / 1081 mm	2226.7 lb / 1010 kg
1.53 m3 (2.0 yd3), Pin On	96 in / 2438 mm	43.4 in / 1103 mm	2403 lb / 1090 kg

Multi-Purpose Buckets

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Model	Width	Height	Weight
1.03 m3 (1.35 yd3), Pin On	94.7 in / 2406 mm	38.8 in / 985 mm	1593 lb / 722.59 kg
1.03 m3 (1.35 yd3), Pin On	89.1 in / 2262 mm	56.8 in / 1443 mm	1819 lb / 825.09 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	57.6 in / 1462 mm	1973.1 lb / 895 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Cutting Edge	89.1 in / 2262 mm	39.5 in / 1004 mm	1742.1 lb / 790.2 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	38.8 in / 985 mm	1642 lb / 744.79 kg
1.03 m3 (1.35 yd3), Pin On, Bolt-On Teeth	89.1 in / 2262 mm	57.9 in / 1470 mm	1873.9 lb / 850 kg
1.1 m3 (1.4 yd3), Pin On	95.5 in / 2425 mm	38.8 in / 985 mm	1655 lb / 750.7 kg
1.1 m3 (1.4 yd3), Pin On	95.5 in / 2425 mm	56.8 in / 1443 mm	2002.9 lb / 908.5 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	95.5 in / 2425 mm	57.6 in / 1462 mm	2099 lb / 952.09 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Cutting Edge	95.5 in / 2425 mm	39.5 in / 1004 mm	1856.1 lb / 841.9 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	95.5 in / 2425 mm	57.9 in / 1470 mm	1944 lb / 881.79 kg
1.1 m3 (1.4 yd3), Pin On, Bolt-On Teeth	95.5 in / 2425 mm	39.8 in / 1011 mm	1722 lb / 781.09 kg
1.14 m3 (1.5 yd3), Pin On	95.5 in / 2425 mm	41.7 in / 1059 mm	2104.9 lb / 954.79 kg
1.14 m3 (1.5 yd3), Pin On	95.5 in / 2425 mm	41.7 in / 1059 mm	2455.9 lb / 1114 kg

Heavy Duty Buckets

Ideal for semi-rocky soil or where hard bank material must be broken out and removed.

Model	Width	Capacity	Weight
300 mm (12 in), Pin Lock	11.8 in / 300 mm	3.4 ft³ / 96 l	249.1 lb / 113 kg
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	238.1 lb / 108 kg
406 mm (16 in), Pin Lock	16 in / 406 mm	4.2 ft³ / 120 l	297.6 lb / 135 kg
406 mm (16 in), Pin On	16 in / 406 mm	3.7 ft³ / 105 l	280 lb / 127 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	4.9 ft³ / 139 l	304.2 lb / 138 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	284.4 lb / 129 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	7.3 ft³ / 207 l	370.4 lb / 168 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	332.9 lb / 151 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	9.9 ft³ / 280 l	443.1 lb / 201 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	368.2 lb / 167 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	12 ft³ / 340 l	509.3 lb / 231 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	416.7 lb / 189 kg

High Capacity Buckets

Ideal for work in lower density soils and light materials.

Model	Width	Capacity	Weight
406 mm (16 in), Pin Lock	16 in / 406 mm	5.7 ft³ / 160 l	337.3 lb / 153 kg
457 mm (18 in), Pin Lock	18 in / 457 mm	6.4 ft³ / 180 l	357.1 lb / 162 kg
457 mm (18 in), Pin On	18 in / 457 mm	6.4 ft³ / 181 l	321.9 lb / 146 kg
610 mm (24 in), Pin Lock	24 in / 610 mm	9.2 ft³ / 260 l	427.7 lb / 194 kg
762 mm (30 in), Pin Lock	30 in / 762 mm	12.7 ft³ / 360 l	489.4 lb / 222 kg
914 mm (36 in), Pin Lock	36 in / 914 mm	16.2 ft³ / 460 l	560 lb / 254 kg
914 mm (36 in), Pin On	36 in / 914 mm	13.4 ft³ / 380 l	471.8 lb / 214 kg

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA25 Manual	106 in / 2700 mm	98.4 in / 2500 mm	27.6 in / 700 mm

Standard Duty Buckets

Designed for general light duty excavation in soft soil or clay.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.8 ft³ / 79 l	213.8 lb / 97 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.2 ft³ / 119 l	253.5 lb / 115 kg
610 mm (24 in), Pin On	24 in / 610 mm	6.2 ft³ / 176 l	291 lb / 132 kg
762 mm (30 in), Pin On	30 in / 762 mm	8.2 ft³ / 232 l	324.1 lb / 147 kg
914 mm (36 in), Pin On	36 in / 914 mm	10.3 ft³ / 292 l	363.8 lb / 165 kg

Rippers

For land clearing or site preparation in rock, quarry work and similar high-impact digging applications. Combine with a coupler for Rip & Load productivity.

Model	Shank Length	Weight	Overall Length
639 mm (25 in)	25.2 in / 639 mm	240.3 lb / 109 kg	32.8 in / 833 mm

Heavy Duty Rock Buckets

Designed to work in the harsh rocky conditions found in various regions of the world.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.5 ft³ / 71 l	249.1 lb / 113 kg
457 mm (18 in), Pin On	18 in / 457 mm	4.6 ft³ / 130 l	304.2 lb / 138 kg
610 mm (24 in), Pin On	24 in / 610 mm	7 ft³ / 198 l	381.4 lb / 173 kg
762 mm (30 in), Pin On	30 in / 762 mm	9.5 ft³ / 269 l	396.8 lb / 180 kg
914 mm (36 in), Pin On	36 in / 914 mm	11.5 ft³ / 325 l	451.9 lb / 205 kg

Coral Buckets

Designed to work in rocky coral conditions.

Model	Width	Capacity	Weight
305 mm (12 in), Pin On	12 in / 305 mm	2.3 ft³ / 65 l	271.2 lb / 123 kg
610 mm (24 in), Pin On	24 in / 610 mm	5 ft³ / 142 l	383.6 lb / 174 kg
762 mm (30 in), Pin On	30 in / 762 mm	6.7 ft³ / 190 l	440.9 lb / 200 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP25	78.3 in / 2700 mm	60 in / 2500 mm	26 in / 700 mm
