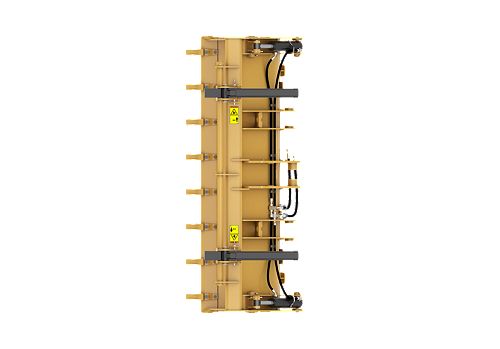

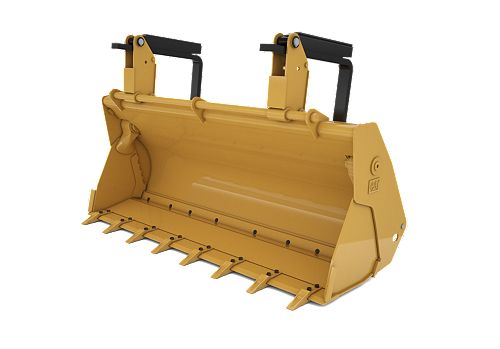

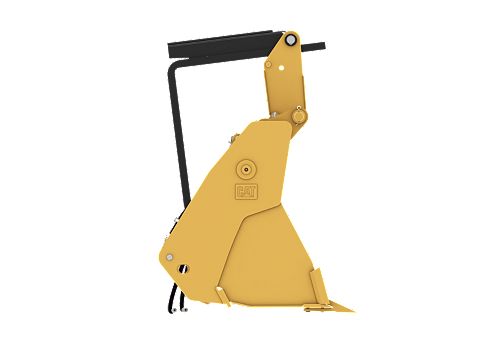

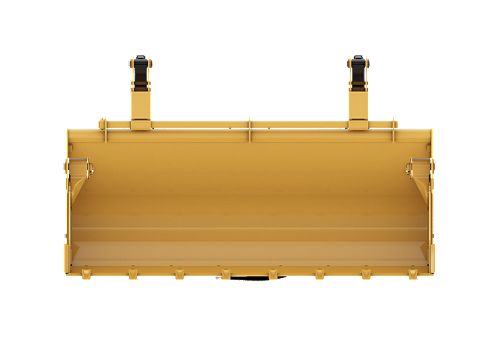

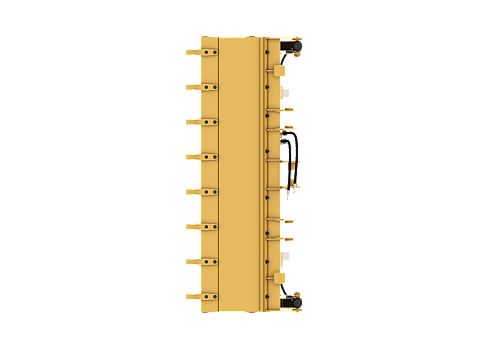

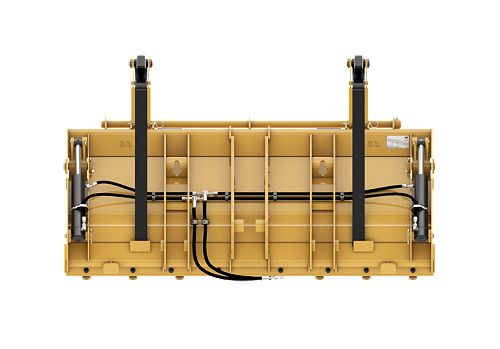

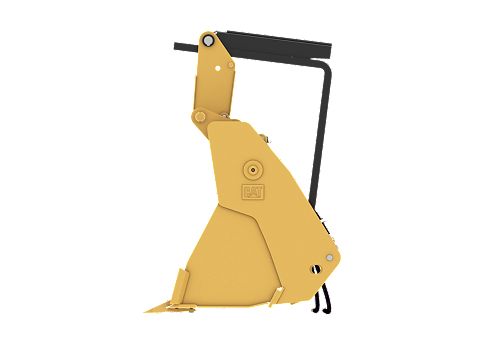

1.1 m3 (1.4 yd3), Single Tilt Pin On, Bolt-On Teeth, Forks
- Width
- 95.5 in / 2425 mm
- Height
- 57.9 in / 1470 mm
- Weight
- 1944 lb / 881.79 kg
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.
| Product Specifications | |
|---|---|
| Width | 95.5 in / 2425 mm |
| Height | 57.9 in / 1470 mm |
| Weight | 1944 lb / 881.79 kg |
| Length | 40.6 in / 1031 mm |
| Capacity | 1.4 yd³ / 1.1 m³ |
| Base Edge Thickness | 0.8 in / 20 mm |
| Jaw Opening | 23.7 in / 602 mm |
| Clam Angle | 76 degrees |
| Interface Type | Pin On |
Center-Pivot Backhoe Loaders
| Model | Dig Depth - Standard | Operating Weight - Maximum |
|---|---|---|
| 420 | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 420 XE | 14 ft / 4278 mm | 24251 lb / 11000 kg |
| 430 | 15.1 ft / 4612 mm | 24251 lb / 11000 kg |
| 430F2/430F2 IT | 15.4 ft / 4686 mm | 24251 lb / 11000 kg |
