0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Teeth
- Width
- 81.9 in / 2080 mm
- Weight
- 1230 lb / 557.9 kg
- Height
- 36.7 in / 933 mm

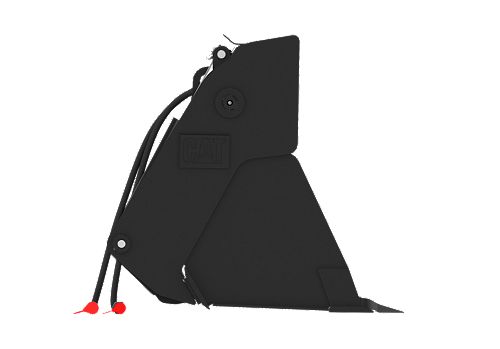

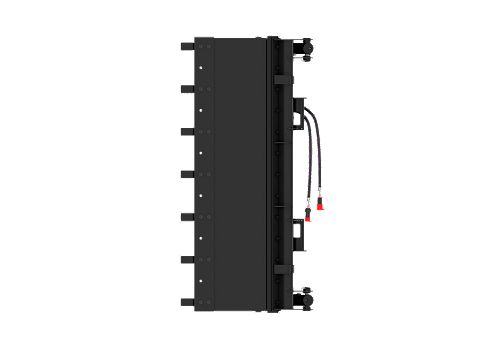

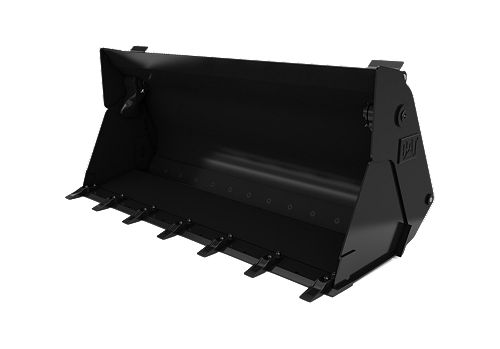

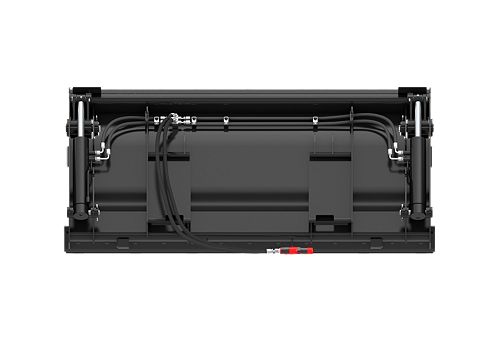

Clam design enables superior performance in a wide variety of applications.
| Product Specifications | |
|---|---|
| Width | 81.9 in / 2080 mm |
| Weight | 1230 lb / 557.9 kg |
| Height | 36.7 in / 933 mm |
| Length | 39.4 in / 1000 mm |
| Capacity | 1.2 yd³ / 0.9 m³ |
| Jaw Opening | 24 in / 610 mm |
| Clam Angle | 76 degrees |
| Base Edge Thickness | 0.8 in / 20 mm |
| Interface Type | Skid Steer Coupler |
Compact Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 908 | 74.7 hp / 55.7 kW | 14617 lb / 6632 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 906M | 73.2 hp / 54.6 kW | 12346 lb / 5600 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 906M Ag Handler | 73.2 hp / 54.6 kW | 12758 lb / 5789 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 907M | 73.2 hp / 54.6 kW | 12677 lb / 5750 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 907M Ag Handler | 73.2 hp / 54.6 kW | 12958 lb / 5880 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 908M | 73.2 hp / 54.6 kW | 14032 lb / 6365 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 908M Ag Handler | 73.2 hp / 54.6 kW | 14402 lb / 6535 kg | 0.9-1.5 m³ (1.2-2.0 yd³) |
