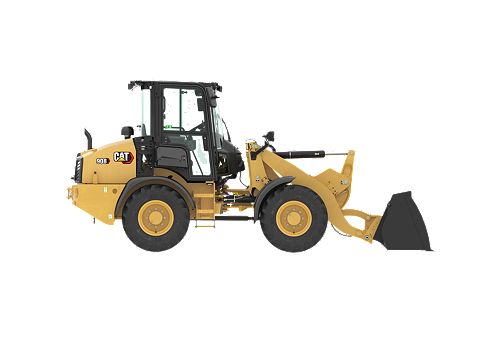

908

Maximum Gross Power
74.7 hp / 55.7 kW
Operating Weight
14617 lb / 6632 kg
Fuel Tank
24 Gal / 90 l

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 908 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Loan Calculator Credit Application
Build & Quote
alt 1
908 Compact Wheel Loader Product Brochure Attachments for Compact Wheel Loaders Brochure 906, 907, 908 Wheel Loaders Product Brochure 906, 907, 908 Options and Accessories Kit Guide
Engine
Maximum Gross Power 74.7 hp / 55.7 kW
Engine Model Cat C2.8*
Maximum Engine Speed 2550 rpm
Maximum Gross Power - Rated Engine Speed 2400 r/min
Maximum Gross Power - SAE J1995 74.7 hp / 55.7 kW
Maximum Gross Power - ISO 14396 74.3 hp / 55.4 kW
Maximum Gross Power - ISO 14396 (metric) 75.3 mhp
Rated Net Power - Rated Engine Speed 2400 r/min
Rated Net Power - SAE J1349 72.7 hp / 54.2 kW
Rated Net Power - ISO 9249 72.1 hp / 53.8 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric) 73.1 mhp
Maximum Gross Torque - SAE J1995 222 lb/ft / 300 N·m
Maximum Gross Torque - ISO 14396 221 lb/ft / 300 N·m
Maximum Net Torque - SAE J1349 218 lb/ft / 296 N·m
Maximum Net Torque - ISO 9249 217 lb/ft / 295 N·m
Displacement 171 in³ / 2.8 l
Bore 3.54 in / 90 mm
Stroke 4.33 in / 110 mm
Note Advertised power is tested per the specified standard in effect at the time of manufacture
Note (1) Net power advertised is the power available at the flywheel.
Note (2) *Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995).
Note (3) #Maximum gross and net torque measured at 1,600 rpm.
Weights
Operating Weight 14617 lb / 6632 kg
Buckets
Bucket Capacities 0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose 0.80-1.35 m³ (1.0-1.7 yd³)
Multi-Purpose 0.75-1.1 m³ (1.0-1.4 yd³)
Bucket Capacities - Light Material 1.25-1.55 m³ (1.6-2.0 yd³)
Note Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1) Bucket capacities stated include BOCE, in line with ISO 7546.
Service Refill Capacities
Fuel Tank 24 Gal / 90 l
Cooling System 3.2 Gal / 12 l
Engine Crankcase 2.3 Gal / 8.8 l
Axles - Front Center Differential 2.3 Gal / 8.8 l
Axles - Rear Center Differential 2.3 Gal / 8.8 l
Hydraulic System - Including Tank 18.6 Gal / 70.5 l
Hydraulic Tank 11.8 Gal / 44.6 l
Transmission 0.6 Gal / 2.4 l
Note No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.
Axles
Front Fixed (standard), Locking Differential (optional)
Rear Fixed (standard), Locking Differential (optional)
Note Oscillation of ±11 degrees via hitch between front and rear frames.
Steering
Steering Articulation Angle - Each Direction 39 °
Maximum Flow - Steering Pump 12.3 gal/min / 46.7 l/min
Maximum Working Pressure - Steering Pump 3336 psi / 23000 kPa
Steering Cycle Times – (full left to full right) – at High Idle 2.8 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left 3.25 turns or 4.00 turns
Transmission
Forward and Reverse - Speed Range Creep# 6 mile/h / 10 km/h
Forward and Reverse - Speed Range 1* 6 mile/h / 10 km/h
Forward and Reverse - Speed Range 2** - High Speed 10.5 mile/h / 17 km/h
Forward and Reverse - Speed Range 2** - Standard 12 mile/h / 20 km/h
Forward and Reverse - Speed Range 3*** 25 mile/h / 40 km/h
Note #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1) *Creep function not available in this gear or above.
Note (2) **Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3) ***Reverse is 30 km/h (19 mph).
Tires
Tire Size - Standard *405/70 R20 SPT9
Tire Size - Optional 405/70 R20 Powerloads
Tire Size - Optional (1) 400/70 R20 XMCL/Bibload
Tire Size - Optional (2) 360/80 R20 TRI 2
Tire Size - Optional (3) 40X14-20 TL, SM/TR
Note *This tire has been used for all dimension, stability and performance data.
Note (1) Other tire choices are available. Contact your Cat dealer for details.
Note (2) Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Cab
ROPS ISO 3471:2008
FOPS ISO 3449:2005 Level II
Note (1) Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Loader Hydraulic System
Main Relief - 1st Auxiliary (3rd slice) 3408 psi / 23500 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* 24 gal/min / 90 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow* 33 gal/min / 125 l/min
Main Relief - 2nd Auxiliary (4th slice) 3408 psi / 23500 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow 12 gal/min / 45 l/min
Hydraulic Cycle Time - Rackback 2.5 s
Hydraulic Cycle Time - Lift 5.8 s
Hydraulic Cycle Time - Dump 1.8 s
Hydraulic Cycle Time - Float Down 3.6 s
Note * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.
Dimensions - With HPL-V Coupler - Approximate#
Height: Ground to Cab** 8.75 ft / 2670 mm
Height: Ground to Beacon** 9.33 ft / 2849 mm
Height: Ground Axle Center** 1.67 ft / 519 mm
Height: Ground Clearance** 1 ft / 320 mm
Length: Overall* 18.17 ft / 5544 mm
Length: Rear Axle to Bumper 4.5 ft / 1391 mm
Length: Hitch to Front Axle 3.5 ft / 1085 mm
Length: Wheel Base 7.08 ft / 2170 mm
Clearance: Bucket at 45° * 8.58 ft / 2623 mm
Clearance: Load over Height** 9.75 ft / 2960 mm
Clearance: Level Bucket** 10.5 ft / 3206 mm
Height: Bucket Pin** 11.17 ft / 3412 mm
Height: Overall** 14.17 ft / 4313 mm
Reach: Bucket at 45° * 2.33 ft / 706 mm
Carry Height: Bucket Pin 1.17 ft / 367 mm
Dig Depth** 0.33 ft / 109 mm
Width: Bucket 6.75 ft / 2080 mm
Width: Tread Center 5.08 ft / 1570 mm
Turning Radius: Over Bucket 14.75 ft / 4493 mm
Width: Over Tires 6.67 ft / 2021 mm
Turning Radius: Outside of Tires 13.17 ft / 4005 mm
Turning Radius: Inside of Tires 6.5 ft / 1981 mm
Rack Angle at Full Lift 53°
Dump Angle at Full Lift 45°
Rack Angle at Carry 51°
Departure Angle - Degrees 30°
Articulation Angle - Degrees 39°
Operating Weight: Bucket ^ 14633 lb / 6637 kg
Tipping Load - Straight - ISO 14397-1 † 10626 lb / 4820 kg
Tipping Load - Full Turn - ISO 14397-1 † 8895 lb / 4035 kg
Operating Weight: Carriage and Tines ^^ 14252 lb / 6467 kg
Tipping Load - Straight † 10626 lb / 3297 kg
80% of Tip: Firm and Level EN474-3 †† 5815 lb / 2638 kg
Note (1) *Vary with bucket
Note (2) **Vary with tire
Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6) ††Full compliance to EN474-3 and SAE J1197.
Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Length: Front Axle to Front of Coupler 3.92 ft / 1200 mm
Dimensions - With SSL Coupler - Approximate
Height - Ground to Cab 8.75 ft / 2670 mm
Height: Ground to Beacon** 9.33 ft / 2849 mm
Height: Ground Axle Center** 1.67 ft / 519 mm
Height - Ground Clearance 1 ft / 320 mm
Length - Overall with Bucket 18.67 ft / 5707 mm
Length: Rear Axle to Bumper 4.5 ft / 1391 mm
Length: Hitch to Front Axle 3.5 ft / 1085 mm
Length - Wheel Base 7.08 ft / 2170 mm
Clearance - Bucket at 45° 8.25 ft / 2511 mm
Clearance: Load over Height** 9.75 ft / 2960 mm
Clearance - Level Bucket 10.5 ft / 3197 mm
Height - Bucket Pin 11.17 ft / 3412 mm
Height: Overall** 14.42 ft / 4403 mm
Reach - Bucket at 45° 2.67 ft / 811 mm
Carry Height: Bucket Pin 1.25 ft / 388 mm
Dig Depth 0.45 ft / 117 mm
Width - Bucket 6.75 ft / 2080 mm
Width - Tread Center 5.08 ft / 1570 mm
Turning Radius - Over Bucket 15.08 ft / 4607 mm
Width - Over Tires 6.67 ft / 2021 mm
Turning Radius: Outside of Tires 13.17 ft / 4005 mm
Turning Radius - Inside Tire 6.67 ft / 2033 mm
Rack Angle at Full Lift 50°
Dump Angle at Full Lift 48°
Rack Angle at Carry 54°
Departure Angle - Degrees 30°
Articulation Angle - Degrees 39°
Operating Weight: Bucket ^ 14752 lb / 6691 kg
Tipping Load – Straight – ISO 14397-1 † 9581 lb / 4347 kg
Tipping Load – Full Turn – ISO 14397-1 † 8141 lb / 3693 kg
Operating Weight: Carriage and Tines ^^ 14391 lb / 6530 kg
Tipping Load - Straight † 9753 lb / 4424 kg
80% of Tip: Firm and Level EN474-3 †† 5438 lb / 2468 kg
Note (1) *Vary with bucket
Note (2) **Vary with tire
Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6) ††Full compliance to EN474-3 and SAE J1197.
Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Tipping Load - Full Turn - ISO 14397-1† 6800 lb / 3085 kg
Length: Front Axle to Front of Coupler 4.75 ft / 1436 mm
Dimensions - High Lift - With HPL-V Coupler - Approximate#
Height: Ground to Cab** 8.75 ft / 2670 mm
Height: Ground to Beacon** 9.33 ft / 2849 mm
Height: Ground Axle Center** 1.67 ft / 519 mm
Height: Ground Clearance** 1 ft / 320 mm
Length: Overall* 19.67 ft / 6000 mm
Length: Rear Axle to Bumper 4.5 ft / 1391 mm
Length: Hitch to Front Axle 3.5 ft / 1085 mm
Length: Wheel Base 7.08 ft / 2170 mm
Clearance: Bucket at 45° * 10.92 ft / 3338 mm
Clearance: Load over Height** 10.75 ft / 3282 mm
Clearance: Level Bucket** 12.08 ft / 3693 mm
Height: Bucket Pin** 12.75 ft / 3898 mm
Height: Overall** 15.67 ft / 4769 mm
Reach: Bucket at 45° * 3.25 ft / 990 mm
Carry Height: Bucket Pin 1.17 ft / 367 mm
Dig Depth** 0.33 ft / 109 mm
Width: Bucket 6.75 ft / 2045 mm
Width: Tread Center 5.08 ft / 1570 mm
Turning Radius: Over Bucket 15.83 ft / 4825 mm
Width: Over Tires 6.67 ft / 2021 mm
Turning Radius: Outside of Tires 13.17 ft / 4005 mm
Turning Radius: Inside of Tires 6.5 ft / 1981 mm
Rack Angle at Full Lift 69°
Dump Angle at Full Lift 40°
Rack Angle at Carry 48°
Departure Angle - Degrees 30°
Articulation Angle - Degrees 39°
Operating Weight: Bucket ^ 14848 lb / 6735 kg
Tipping Load - Straight - ISO 14397-1 † 9187 lb / 4167 kg
Tipping Load - Full Turn - ISO 14397-1 † 7645 lb / 3468 kg
Operating Weight: Carriage and Tines ^^ 14542 lb / 6596 kg
Tipping Load - Straight † 9187 lb / 4167 kg
80% of Tip: Firm and Level EN474-3 †† 4706 lb / 2135 kg
Note (1) *Vary with bucket
Note (2) **Vary with tire
Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6) ††Full compliance to EN474-3 and SAE J1197.
Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Dimensions - High Lift - With SSL Coupler - Approximate
Height: Ground to Cab** 8.75 ft / 2670 mm
Height: Ground to Beacon** 9.33 ft / 2849 mm
Height: Ground Axle Center** 1.67 ft / 519 mm
Height: Ground Clearance** 1 ft / 320 mm
Length: Overall* 20.17 ft / 6157 mm
Length: Rear Axle to Bumper 4.5 ft / 1391 mm
Length: Hitch to Front Axle 3.5 ft / 1085 mm
Length: Wheel Base 7.08 ft / 2170 mm
Clearance: Bucket at 45° * 10.42 ft / 3181 mm
Clearance: Load over Height** 10.75 ft / 3282 mm
Clearance: Level Bucket** 12.08 ft / 3684 mm
Height: Bucket Pin** 12.75 ft / 3898 mm
Height: Overall** 15.92 ft / 4859 mm
Reach: Bucket at 45° * 3.42 ft / 1048 mm
Carry Height: Bucket Pin 1.25 ft / 388 mm
Dig Depth** 0.42 ft / 117 mm
Width: Bucket 6.75 ft / 2045 mm
Width: Tread Center 5.08 ft / 1570 mm
Turning Radius: Over Bucket 16.17 ft / 4919 mm
Width: Over Tires 6.67 ft / 2021 mm
Turning Radius: Outside of Tires 13.17 ft / 4005 mm
Turning Radius: Inside of Tires 6.5 ft / 1981 mm
Rack Angle at Full Lift 66°
Dump Angle at Full Lift 40°
Rack Angle at Carry 42°
Departure Angle - Degrees 30°
Articulation Angle - Degrees 39°
Operating Weight: Bucket ^ 15070 lb / 6836 kg
Tipping Load - Straight - ISO 14397-1 † 8385 lb / 3803 kg
Tipping Load - Full Turn - ISO 14397-1 † 6943 lb / 3149 kg
Operating Weight: Carriage and Tines ^^ 14714 lb / 6674 kg
Tipping Load - Straight † 8385 lb / 3803 kg
80% of Tip: Firm and Level EN474-3 †† 4375 lb / 1984 kg
Note (1) *Vary with bucket
Note (2) **Vary with tire
Note (3) ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 1.15 m3 (1.5 yd3) general purpose bucket.
Note (4) ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class III carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5) †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6) ††Full compliance to EN474-3 and SAE J1197.
Note (7) #HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8) Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9 405/70 R20 tires and 1.15 m3 (1.5 yd3) general purpose bucket with bolt-on cutting edge or a class III fork carriage and tines, (tire supplier variability can impact dimensions by 2%).
Note (9) Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9
Sustainability
Recyclability 93%

Standard Equipment

  • POWER TRAIN
    • Emissions compliant, two options (Dependent on regional regulations.)
      – U.S. EPA Tier 4 Final and EU Stage V
      – U.S. EPA Tier 3 and EU Stage IIIA equivalent
    • Cat C2.8 engine
      – Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
      – Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
      – Hydrostatic transmission, two speed, with inching function, “shift on the go”
      – Power train mode, hystat
    • Air cleaner, two stage filter, with in cab audio/visual indicator on display
    • Axles, heavy duty, frame mounted with outboard planetary reduction
    • Closed circuit breather
    • Coolant, extended life, –36° C (–33° F)
    • Drive shaft, sealed for life, universal joints
    • Engine, auto idle shutdown, hibernation mode
    • Engine oil, ECO drain tap and hose
    • Fuel pump, priming (manual)/water separator/drain
  • HYDRAULICS
    • Hydraulic pilot shut off switch, in cab
    • Electro-hydraulic, fully proportional controls
    • Dead engine lower, lift valve, manual
    • Demand cooling fan, hydraulically drive
    • Coupler/pin on attachment ready
    • Caterpillar HYDO™ Advanced 10 hydraulic oil
    • Hystat displacement pump, infinitely variable
    • Implement valve, pressure compensated
    • Joystick, single lever, single auxiliary roller
    • Multi-function lift and tilt with loader arm float
    • Motor, single drive with dedicated implement and steering pumps
  • ELECTRICAL
    • Alternator, 100 amp sealed
    • Battery, heavy duty, 12V, 90Ah and 1,000 CCA
    • Battery disconnect switch
    • Cab mounted fuse panel
    • Lights, rear stop and turn, LED
    • Lights, roading, front halogen
    • Service (Electronic Technician™)
    • Product Link™
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS certified canopy/cab
      – 12V power outlets, interior/exterior
      – Pedals, raised, foot, brake/inching, accelerator
      – Lever, parking brake
      – Cup holders (2)
      – CB radio clip, phone holder
      – Door release, internal (left and right)
      – Hook, large, coat and hard hat
      – Floormat, heavy duty, easy clean
      – Mirrors, (2) external breakaway, (1) internal
      – Operator station on isolation mounts
      – Steering wheel, spinner knob, horn in center
      – Seat belt, orange, retractable, 51 mm (2 in)
      – Storage, personal (trays [3], seat pocket)
      – Steering column, tilt adjusted
      – Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
      – Quick coupler switch, in cab
    • Display, analog and digital
      – Gauges (2), hydraulic oil, engine coolant
      – Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
    • Joystick, seat mounted, standard multifunction
      – FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
      – Arm rest, padded right, multiple position vertical height
    • Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
    • Cab
      – Doors (2), fixed glass
      – Wipers, front and rear, full front coverage
      – Windshield, front single piece
      – Window, rear heated
      – Radio ready, speakers and wiring
      – Air vents, (4) screen, (7) directional
      – Heating, mechanical control unit
      – Sun visor, solid, front full width
      – Interior light (incandescent)
  • OTHER
    • Fenders, front and rear
    • Ground level easy access daily service points
    • Loader arm safety brace
    • Lockable main and side engine enclosures
    • Lockable, fuel cap, HVAC filters, nose cone
    • Machine lifting/tie down points
    • Paint, Electro-Coat primer, gloss topcoat
    • Recovery hitch with pin
    • Scheduled Oil Sampling (S·O·S?) ports, engine oil and hydraulic oil

Optional Equipment

  • POWER TRAIN
    • Antifreeze, extended life coolant, –50° C (–58° F)
    • Cold start – jacket water heater, bypass valve
    • Creep and throttle lock function
    • Fuel pump, priming, electric (Dependent on regional regulations.)
    • 40 km/h (25 mph) hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
    • Power train mode, utility (includes keypad)
  • ELECTRICAL
    • Lighting packages, multiple; front, rear, engine bay (LED or HAL)
    • Push to start
    • Work tool wiring harness, (3) in cab switches
  • HYDRAULICS
    • Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve
    • Caterpillar Bio HYDO Advanced hydraulic oil
    • Connect under pressure and case drain
    • Ride Control or load check valves*
    • Reversing fan
    • Quick disconnect auxiliary hydraulics
  • OPERATOR STATION
    • Air Conditioning, automatic temperature control (ATC)
    • Doors, sliding windows (left and right)
    • Interior light, door activated
    • Joystick, FNR, twin auxiliary roller, differential lock, horn
    • Joystick, seat mounted, multifunction
    • Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
    • Phone holder, spring loaded
    • Radio, FM or digital audio broadcast
    • Seat belt options, multiple
    • Seat packages; deluxe or premium
    • Secondary display, front or rear view camera
    • Soft touch keypad options, 8 or 16 button
    • Storage, lockable box or lockable cooled box
    • Sun visor, rear perforated
    • USB ports (2), interior
  • OTHER
    • Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)
    • Rotary sensors (snubbing, kickouts, parallel)
    • High lift option

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model Overall Width Overall Height Capacity
890 mm (35 in) 50.6 in / 1285 mm 22.4 in / 570 mm 2004 lb / 909 kg
890 mm (35 in) 55.4 in / 1407 mm 51.8 in / 1315 mm 3007.1 lb / 1364 kg
1140 mm (45 in) 50.6 in / 1285 mm 22.4 in / 570 mm 2004 lb / 909 kg
1140 mm (45 in) 55.4 in / 1407 mm 51.8 in / 1315 mm 3007.1 lb / 1364 kg

Silage Defacers

Prepare silage and haylage for feed with minimal oxygen penetration reducing waste.

Model Overall Width Weight Required Hydraulics
DFS118 72.5 in / 1841 mm 937 lb / 425 kg Standard Flow
DFS121 84.5 in / 2146 mm 1051.6 lb / 477 kg Standard Flow
DFS124 96.5 in / 2451 mm 1108.9 lb / 503 kg Standard Flow

Bale Grabs

Cat® Bales Grabs safely grab, carry and place square or round baled material.

Model Overall Width Overall Height Maximum Opening Width
1803 mm (71 in) 55.2 in / 1401 mm 34.4 in / 873 mm 71 in / 1803 mm
2133 mm (84 in) 55.2 in / 1401 mm 34.4 in / 873 mm 84 in / 2133 mm

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model Capacity Width Required Hydraulics
MB200 0.26 yd³ / 0.2 m³ 54.6 in / 1386 mm Standard Flow
MB250 0.33 yd³ / 0.25 m³ 54.7 in / 1390 mm Standard Flow

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model Roller Width Overall Width Maximum Angle - Right or Left
PR118 Hydraulic Angle 72 in / 1829 mm 81 in / 2057 mm 20 degrees
PR118 Manual Angle 72 in / 1829 mm 81 in / 2057 mm 20 degrees
PR121 Hydraulic Angle 84 in / 2134 mm 93 in / 2362 mm 20 degrees
PR121 Manual Angle 84 in / 2134 mm 93 in / 2362 mm 20 degrees
PR123 Hydraulic Angle 90 in / 2286 mm 99 in / 2515 mm 20 degrees

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model Drive Shaft Torque at Maximum Pressure Drive Method Mounting Bracket Design
A23 1699.3 lb/ft / 2304 N·m Gerotor Motor - Direct Drive Skid Steer Loader Coupler
A41 3037.3 lb/ft / 4118 N·m Gerotor Motor - Single Planetary Reduction Skid Steer Loader Coupler
A68 5034.6 lb/ft / 6826 N·m Gerotor Motor - Double Planetary Drive Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model Working Width Working Depth Weight
LT114 53.3 in / 1354 mm 25-152 mm (1-6 in) 925.9 lb / 420 kg
LT118 72.8 in / 1848 mm 25-152 mm (1-6 in) 925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model Working Width Bucket Capacity - Struck Weight
LR116 62 in / 1576 mm 0.4 yd³ / 0.31 m³ 1311.7 lb / 595 kg
LR119 74.1 in / 1883 mm 0.4 yd³ / 0.34 m³ 1439.6 lb / 653 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model Standard Boom Length
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Hydraulic Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T109 Manual Side Shift 36 in / 914 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Hydraulic Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T112 Manual Side Shift 48 in / 1219 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm
T315 Hydraulic Side Shift 60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model Drum Width Weight Required Hydraulics
CV117 66 in / 1676 mm 2063.5 lb / 936 kg Standard Flow
CV119 73 in / 1854 mm 2138.5 lb / 970 kg Standard Flow

General Purpose Buckets

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Model Width Weight Height
1.1 m3 (1.4 yd3), Skid Steer Coupler 81.1 in / 2060 mm 888 lb / 402.79 kg 36.9 in / 937 mm

Multi-Purpose Buckets

Clam design enables superior performance in a wide variety of applications.

Model Width Weight Height
0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Cutting Edge 81.9 in / 2080 mm 1283.1 lb / 582 kg 37.4 in / 949 mm
0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Teeth 81.9 in / 2080 mm 1230 lb / 557.9 kg 36.7 in / 933 mm
0.8 m3 (1.0 yd3), Skid Steer Coupler 74.4 in / 1890 mm 684.1 lb / 310.3 kg 36.5 in / 927 mm
0.9 m3 (1.2 yd3), ISO Coupler, Bolt-On Cutting Edge 81.9 in / 2080 mm 1265 lb / 573.8 kg 36.7 in / 933 mm

Dozer Blades

Designed for rough and finish grading in dirt, gravel, and light dozing.

Model Blade Width Width - Fully Angled Maximum Blade Angle - Right/Left of Center
2007 mm (79 in) 79 in / 2007 mm 68.9 in / 1750 mm 30 degrees
2337 mm (92 in) 92 in / 2337 mm 80.7 in / 2049 mm 30 degrees

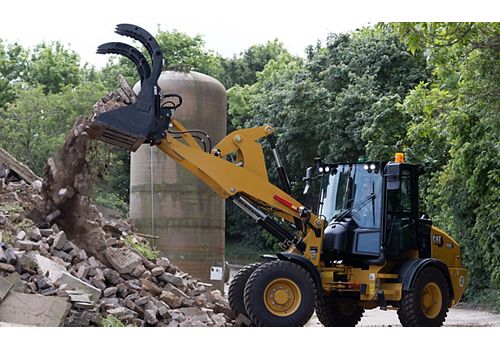

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model Width Weight Height - Grapples Closed
2080 mm (82 in), Skid Steer Coupler, Bolt-On Cutting Edge 81.9 in / 2080 mm 1295 lb / 587.4 kg 41.5 in / 1054 mm

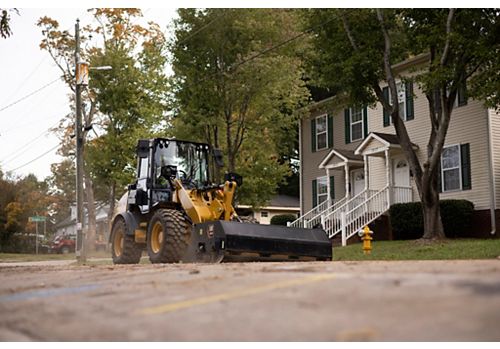

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model Overall Width Sweeping Width Brush Diameter
BA118C Hydraulic 104 in / 2637 mm 83 in / 2119 mm 32 in / 815 mm
BA118C Manual 104 in / 2637 mm 83 in / 2119 mm 32 in / 815 mm
BA22 Hydraulic, 12V 94.5 in / 2400 mm 86.6 in / 2200 mm 27.6 in / 700 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model Overall Width Maximum Load Rating Maximum Horizontal Reach
Material Handling Arm 51.8 in / 1316 mm 1999.6 lb / 907 kg 84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model Required Hydraulics Cutting Wheel Diameter - With Teeth Cutting Depth - Below Ground
SG16 Standard Flow 21.5 in / 547 mm 20.5 in / 521 mm

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model Blade Width Width - Fully Angled Maximum Blade Angle - Right/Left of Center
1829 mm (72 in) 72 in / 1829 mm 66.3 in / 1685 mm 30 degrees
2134 mm (84 in) 84 in / 2134 mm 76.7 in / 1949 mm 30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model Overall Length Overall Width Weight
Manual Nursery Fork 98.1 in / 2491 mm 52.2 in / 1327 mm 754 lb / 342 kg
Hydraulic Nursery Fork 98.1 in / 2491 mm 52.2 in / 1327 mm 798 lb / 362 kg

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model Maximum Cutting Depth Wheel Width Weight
SW345, 80 mm (3 in) 17.7 in / 450 mm 3.1 in / 80 mm 2482.4 lb / 1126 kg
SW345, 130 mm (5 in) 17.7 in / 450 mm 5.1 in / 130 mm 2239.9 lb / 1016 kg
SW360, 100 mm (4 in) 23.6 in / 600 mm 3.9 in / 100 mm 2943.2 lb / 1335 kg
SW360, 130 mm (5 in) 23.6 in / 600 mm 5.1 in / 130 mm 3009.3 lb / 1365 kg
SW360, 160 mm (6 in) 23.6 in / 600 mm 6.3 in / 160 mm 2899.1 lb / 1315 kg
SW360, 200 mm (8 in) 23.6 in / 600 mm 7.9 in / 200 mm 2921.1 lb / 1325 kg
SW360, 80 mm (3 in) 23.6 in / 600 mm 3.1 in / 80 mm 3174.7 lb / 1440 kg
SW380, 250 mm (10 in) 31.5 in / 800 mm 9.8 in / 250 mm 3196.7 lb / 1450 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model Overall Width Sweeping Width Brush Diameter
BP115C 78.3 in / 1990 mm 60 in / 1524 mm 26 in / 660 mm
BP118C 90.4 in / 2295 mm 72 in / 1829 mm 26 in / 660 mm
Contact Us
x

We're here to help.

We'll do our best to get back to you as soon as possible.

This website uses cookies and other tracking technologies to enhance user experience and analyze our site performance and traffic. Further information is available in our Privacy Policy

Close & Accept
