908M Ag Handler

Maximum Gross Power: 73.2 hp / 54.6 kW
Operating Weight: 14402 lb / 6535 kg
Cooling System: 4.5 gal (US) / 17 l

The Cat® 908M Ag Handler is compact, yet powerful, allowing you to do what you want, when you need to, in any agricultural application. The Ag Handler has features that will maximize the performance of the machine, making it a perfect fit to use around the farm.

Loan Calculator Credit Application

Build & Quote

908M Ag Handler Brochure

Specifications
Equipment
Related Products

Engine
Maximum Gross Power	73.2 hp / 54.6 kW
Engine Model	Cat® C3.3B DIT*
Maximum Gross Power - ISO 14396	73.2 hp / 54.6 kW
Maximum Gross Power - ISO 14396 (metric)	74.2 mhp
Rated Net Power - 2,400 rpm - SAE J1349	71.9 hp / 53.6 kW
Rated Net Power - 2,400 rpm - ISO 9249	72.9 hp / 53.6 kW
Emissions	*The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards.

Weights
Operating Weight	14402 lb / 6535 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, skid steer loader coupler (SSL) and general purpose bucket (GP).

Service Refill Capacities
Cooling System	4.5 gal (US) / 17 l
Fuel Tank	20.6 gal (US) / 78 l
Hydraulic System	18.5 gal (US) / 70 l
Engine Oil	3 gal (US) / 11.2 l

Travel Speeds
Speed 1	6.2 mile/h / 10 km/h
Speed 2	12.4 mile/h / 20 km/h
High Speed	21.7 mile/h / 35 km/h

Buckets
Bucket Capacities	0.9-1.5 m³ (1.2-2.0 yd³)
Bucket Capacities - ISO Coupler	0.9-1.5 m³
Bucket Capacities - SSL Style Coupler	1.2-2.0 yd³

Hydraulic System
Main Relief - 3rd Aux Flow	3400 psi / 235 bar
Main Relief - 3rd Aux Flow: Standard	22 gal/min / 85 l/min
Main Relief - 3rd Aux Flow: High Flow	34 gal/min / 130 l/min
Hydraulic Cycle Time - Lower	3.2 seconds
Hydraulic Cycle Time - Rackback	2.1 seconds

Loader Hydraulic System
Hydraulic Cycle Time - Lift	5.2 seconds
Hydraulic Cycle Time - Dump	1.3 seconds

Dimensions - With ISO Coupler - Approximate
Height - Ground to Cab	8.58 ft / 2632 mm
Height - Ground Clearance	1.08 ft / 335 mm
Length - Wheel Base	7.08 ft / 2170 mm
Length - Overall with Bucket	18.25 ft / 5578 mm
Reach - Bucket at 45°	3.42 ft / 1055 mm
Dig Depth	5.7 in / 147 mm
Clearance - Bucket at 45°	9.33 ft / 2846 mm
Clearance - Level Bucket	10.33 ft / 3159 mm
Height - Bucket Pin	11 ft / 3366 mm
Departure Angle	33°
Length - Overall with Forks	19.92 ft / 6093 mm
Reach - Ground	2.83 ft / 878 mm
Reach - Level Arm	4.33 ft / 1321 mm
Fork Dig Depth	6.4 in / 163 mm
Clearance - Level Arm	4.42 ft / 1358 mm
Clearance - Full Lift	10.25 ft / 3143 mm
Fork Reach at Full Lift	1.5 ft / 472 mm
Turning Radius - Over Bucket	14.67 ft / 4478 mm
Turning Radius - Inside Tire	6.67 ft / 2033 mm
Width - Bucket	6.75 ft / 2060 mm
Width - Tread Center	5.08 ft / 1570 mm
Width - Over Tires	6.5 ft / 1990 mm
Articulation Angle	39°
Dump Angle at Full Lift	45°
Note	Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Dimensions - With SSL Coupler - Approximate
Height - Ground to Cab	8.58 ft / 2632 mm
Height - Ground Clearance	1.08 ft / 335 mm
Length - Wheel Base	7.08 ft / 2170 mm
Length - Overall with Bucket	18.75 ft / 5735 mm
Reach - Bucket at 45°	3.92 ft / 1207 mm
Dig Depth	6 in / 155 mm
Clearance - Bucket at 45°	9.17 ft / 2806 mm
Clearance - Level Bucket	10.33 ft / 3151 mm
Height - Bucket Pin	10.5 ft / 3212 mm
Departure Angle	33°
Length - Overall with Forks	20 ft / 6111 mm
Reach - Ground	2.92 ft / 896 mm
Reach - Level Arm	4.75 ft / 1452 mm
Fork Dig Depth	0.8 in / 21 mm
Clearance - Level Arm	4.92 ft / 1500 mm
Clearance - Full Lift	10.75 ft / 3285 mm
Fork Reach at Full Lift	1.92 ft / 603 mm
Turning Radius - Over Bucket	14.75 ft / 4498 mm
Turning Radius - Inside Tire	6.67 ft / 2033 mm
Width - Bucket	6.75 ft / 2060 mm
Width - Tread Center	5.08 ft / 1570 mm
Width - Over Tires	6.5 ft / 1990 mm
Articulation Angle	39°
Dump Angle at Full Lift	45°
Note	Dimensions shown are based on the machine equipped with general purpose bucket and standard 400/70 R20, XMCL tires.)

Operating Specifications - ISO Coupler
Tire Size	400/70 R20
Operating Weight	14299 lb / 6488 kg
Rated Bucket Capacity	1.5 yd³ / 1.15 m³
Breakout Force - Bucket	12337 lbf / 55 kN
Rated Operating Load at Full Turn - Bucket	4396 lb / 1994 kg
Straight Tipping Load - Bucket	10408 lb / 4721 kg
Full Turn Static Tipping Load - Bucket	8789 lb / 3988 kg
Rack Back - Transport Position	51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)	5719 lb / 2595 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, ISO coupler and general purpose bucket (GP).

Operating Specifications - SSL Coupler
Tire Size	400/70 R20
Operating Weight	14402 lb / 6535 kg
Rated Bucket Capacity	1.5 yd³ / 1.15 m³
Breakout Force - Bucket	10215 lbf / 46 kN
Rated Operating Load at Full Turn - Bucket	4385 lb / 1989 kg
Straight Tipping Load - Bucket	10399 lb / 4717 kg
Full Turn Static Tipping Load - Bucket	8766 lb / 3978 kg
Rack Back - Transport Position	51°
Rated Operating Load at Full Turn - Forks (EN 474-3:2006, Firm and Level Ground, 1.25 Stability and 500 mm [20 in] Load Center)	5336 lb / 2421 kg
Note	Machine with full fuel tank, ROPS/FOPS cab, 80 kg (176 lb) operator, SSL coupler and general purpose bucket (GP).

Maximum Material Densities - General Purpose Bucket
Rated Capacity	1.4 yd³ / 1.1 m³
Dump Height	110 in / 2806 mm
Maximum Material Density	2914 lb/yd³ / 1729 kg/m³
Bucket Width	81 in / 2060 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Multi Purpose Bucket
Rated Capacity	1.2 yd³ / 0.9 m³
Dump Height	110 in / 2799 mm
Maximum Material Density	4060 lb/yd³ / 2409 kg/m³
Bucket Width	81 in / 2060 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Maximum Material Densities - Light Material Bucket
Rated Capacity	2 yd³ / 1.5 m³
Dump Height	111 in / 2826 mm
Maximum Material Density	2771 lb/yd³ / 1644 kg/m³
Bucket Width	81 in / 2060 mm
Note	Based on ISO 7546:1983, and rated operating loads at full turn with 100% bucket capacity and SSL coupler.

Standard Equipment

LOADER
- Return to dig work tool positioner
- Adjustable implement modulation
TRANSMISSION/HYDRAULICS
- Adjustable speed control (creeper control)
- Rimpull control
- Electronic throttle lock
- Adjustable Hystat response settings
- Ride control
- 18° frame oscillation, 78° articulation
- Transmission, 35 km/h (21.7 mph) with secondary steering and heavy duty axles
- Transmission inching function
- Hydrostatic drive
- Work tool quick coupler
- Proportional auxiliary hydraulic circuit
- Loader arm float function
- Connect under pressure hydraulic quick connector
- Parallel lift Z-bar loader
- Demand based cooling fan
ENGINE
- Precleaner for engine air filter
- Cat C3.3B DIT EU Stage V/U.S. EPA Tier 4 Final engine
- Two stage air cleaner with visual indicator
- Cat extended life coolant
- Lockable engine compartments
- Easy quick release fuel filter/water separator
- Engine oil drain valve (non spill eco drain)
- Closed circuit breather
- Eco Mode
ELECTRICAL
- Magnetic rotating beacon
- Work tool wiring harness
- Working lights, two front and two rear
- Cab mounted fuse panel
- Battery disconnect switch
- Heavy duty battery, 12V
- Engine cold starter aid
- Alternator 90 amp
- Service point connector for electronic diagnostics (Electronic Technician™)
- Reverse alarm
GENERAL
- E-coat paint primer
- Pressure test points
- Recovery hitch and pin
- Scheduled Oil Sampling S·O·SSM ports
OPERATOR ENVIRONMENT
- Adjustable steering column
- Air conditioning
- Heater with window, side and feet vents
- Heated rear window
- Radio/CD/MP3/WMA/AUX
- Two doors with sliding window
- Wiper/washer, front and rear
- Cabin light
- Pressurized cab
- Cup holder
- Sun visor
- ROPS and FOPS certified canopy/cab
- Adjustable arm rest
- Retractable seat belt
- Auxiliary power sockets
- Coat hook
- On board digital display cluster
- Sound suppression
- Multifunction joystick with direction control
- Two external knock back mirrors
- Warning indicators for major systems
- Easy clean cab floor
- Lockable storage box
- Adjustable internal mirror
- Operator station on isolation mounts
- Digital service hour meter
- Gauges: fuel hydraulic temp, coolant temp, speedometer
- Warnings: master, park brake, hydraulic oil pressure, engine oil pressure, coolant temp, electrical system, hydraulic filter bypass
- Suspended brake/accelerator pedals
- Cloth, electric air suspension, arm/head rest, lumbar support, heated back seat

Optional Equipment

TRANSMISSION/HYDRAULICS
- 100% differential lock on both axles, selectable on the move
LOADER
- High flow auxiliary hydraulics with pressure relieving quick disconnect manifold
- Load check valves
ENGINE
- Engine block heater 120V
ELECTRICAL
- Machine Security System (MSS)
GENERAL
- Custom color
- Tire options
FLUIDS
- Cat extended life coolant (–50° C/–58° F)
OPERATOR ENVIRONMENT
- Rear blind
WORK TOOLS
- For all work tools and standard/high flow options (consult your Cat dealer)

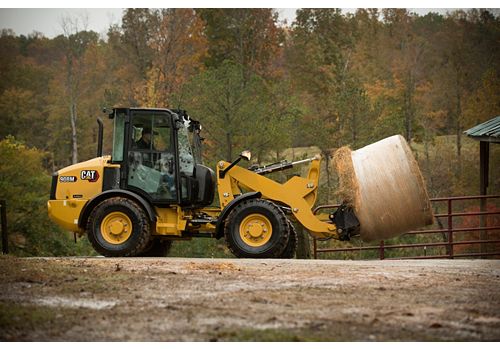

Bale Spears

Cat® Bale Spears are ideal for hay bales, both round and square as well as other baled material in agriculture applications.

Model	Overall Width	Overall Height	Capacity
890 mm (35 in)	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
890 mm (35 in)	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg
1140 mm (45 in)	50.6 in / 1285 mm	22.4 in / 570 mm	2004 lb / 909 kg
1140 mm (45 in)	55.4 in / 1407 mm	51.8 in / 1315 mm	3007.1 lb / 1364 kg

Silage Defacers

Prepare silage and haylage for feed with minimal oxygen penetration reducing waste.

Model	Overall Width	Weight	Required Hydraulics
DFS118	72.5 in / 1841 mm	937 lb / 425 kg	Standard Flow
DFS121	84.5 in / 2146 mm	1051.6 lb / 477 kg	Standard Flow
DFS124	96.5 in / 2451 mm	1108.9 lb / 503 kg	Standard Flow

Bale Grabs

Cat® Bales Grabs safely grab, carry and place square or round baled material.

Model	Overall Width	Overall Height	Maximum Opening Width
1803 mm (71 in)	55.2 in / 1401 mm	34.4 in / 873 mm	71 in / 1803 mm
2133 mm (84 in)	55.2 in / 1401 mm	34.4 in / 873 mm	84 in / 2133 mm

Mixing Buckets

Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

Model	Capacity	Width	Required Hydraulics
MB200	0.26 yd³ / 0.2 m³	54.6 in / 1386 mm	Standard Flow
MB250	0.33 yd³ / 0.25 m³	54.7 in / 1390 mm	Standard Flow

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink®

Power Box Rakes

Designed for clearing and preparing soil in landscape finishing applications.

Model	Roller Width	Overall Width	Maximum Angle - Right or Left
PR118 Hydraulic Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR118 Manual Angle	72 in / 1829 mm	81 in / 2057 mm	20 degrees
PR121 Hydraulic Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR121 Manual Angle	84 in / 2134 mm	93 in / 2362 mm	20 degrees
PR123 Hydraulic Angle	90 in / 2286 mm	99 in / 2515 mm	20 degrees

Augers

Designed to drill holes for footings, fencing, signs and trees.

Model	Drive Shaft Torque at Maximum Pressure	Drive Method	Mounting Bracket Design
A23	1699.3 lb/ft / 2304 N·m	Gerotor Motor - Direct Drive	Skid Steer Loader Coupler
A41	3037.3 lb/ft / 4118 N·m	Gerotor Motor - Single Planetary Reduction	Skid Steer Loader Coupler
A68	5034.6 lb/ft / 6826 N·m	Gerotor Motor - Double Planetary Drive	Skid Steer Loader Coupler

Landscape Tillers

Hardened tines break up and mix soil in a variety of applications.

Model	Working Width	Working Depth	Weight
LT114	53.3 in / 1354 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg
LT118	72.8 in / 1848 mm	25-152 mm (1-6 in)	925.9 lb / 420 kg

Landscape Rakes

Cat® Landscape Rakes are used for scarifying the soil and collecting debris for easy removal.

Model	Working Width	Bucket Capacity - Struck	Weight
LR116	62 in / 1576 mm	0.4 yd³ / 0.31 m³	1311.7 lb / 595 kg
LR119	74.1 in / 1883 mm	0.4 yd³ / 0.34 m³	1439.6 lb / 653 kg

Trenchers

Designed for cutting narrow straight trenches in soil prior to laying electrical, telephone and cable lines, or water and gas pipe.

Model	Standard Boom Length
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Hydraulic Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T109 Manual Side Shift	36 in / 914 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Hydraulic Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T112 Manual Side Shift	48 in / 1219 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm
T315 Hydraulic Side Shift	60 in / 1524 mm

Vibratory Drum Compactors

Vibratory action and dynamic force provides excellent compaction in a compact size.

Model	Drum Width	Weight	Required Hydraulics
CV117	66 in / 1676 mm	2063.5 lb / 936 kg	Standard Flow
CV119	73 in / 1854 mm	2138.5 lb / 970 kg	Standard Flow

General Purpose Buckets

Used for loading, carrying, leveling, grading and dumping in a wide variety of applications and materials.

Model	Width	Weight	Height
1.1 m3 (1.4 yd3), Skid Steer Coupler	81.1 in / 2060 mm	888 lb / 402.79 kg	36.9 in / 937 mm

Multi-Purpose Buckets

Clam design enables superior performance in a wide variety of applications.

Model	Width	Weight	Height
0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Cutting Edge	81.9 in / 2080 mm	1283.1 lb / 582 kg	37.4 in / 949 mm
0.9 m3 (1.2 yd3), Skid Steer Coupler, Bolt-On Teeth	81.9 in / 2080 mm	1230 lb / 557.9 kg	36.7 in / 933 mm
0.8 m3 (1.0 yd3), Skid Steer Coupler	74.4 in / 1890 mm	684.1 lb / 310.3 kg	36.5 in / 927 mm
0.9 m3 (1.2 yd3), ISO Coupler, Bolt-On Cutting Edge	81.9 in / 2080 mm	1265 lb / 573.8 kg	36.7 in / 933 mm

Dozer Blades

Designed for rough and finish grading in dirt, gravel, and light dozing.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
2007 mm (79 in)	79 in / 2007 mm	68.9 in / 1750 mm	30 degrees
2337 mm (92 in)	92 in / 2337 mm	80.7 in / 2049 mm	30 degrees

Industrial Grapple Buckets

Designed to handle a wide array of materials in a variety of operating conditions.

Model	Width	Weight	Height - Grapples Closed
2080 mm (82 in), Skid Steer Coupler, Bolt-On Cutting Edge	81.9 in / 2080 mm	1295 lb / 587.4 kg	41.5 in / 1054 mm

Angle Brooms

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Model	Overall Width	Sweeping Width	Brush Diameter
BA118C Hydraulic	104 in / 2637 mm	83 in / 2119 mm	32 in / 815 mm
BA118C Manual	104 in / 2637 mm	83 in / 2119 mm	32 in / 815 mm
BA22 Hydraulic, 12V	94.5 in / 2400 mm	86.6 in / 2200 mm	27.6 in / 700 mm

Material Handling Arms

Designed for lifting and placing objects and equipment around the jobsite.

Model	Overall Width	Maximum Load Rating	Maximum Horizontal Reach
Material Handling Arm	51.8 in / 1316 mm	1999.6 lb / 907 kg	84 in / 2134 mm

Stump Grinders

Designed to remove stumps in residential, commercial and agricultural settings.

Model	Required Hydraulics	Cutting Wheel Diameter - With Teeth	Cutting Depth - Below Ground
SG16	Standard Flow	21.5 in / 547 mm	20.5 in / 521 mm

Angle Blades - Compact Products

Robust, high capacity design for moving dirt, gravel, livestock waste and snow.

Model	Blade Width	Width - Fully Angled	Maximum Blade Angle - Right/Left of Center
1829 mm (72 in)	72 in / 1829 mm	66.3 in / 1685 mm	30 degrees
2134 mm (84 in)	84 in / 2134 mm	76.7 in / 1949 mm	30 degrees

Nursery Forks

Nursery Forks are used to move ball and burlap trees, as well as potted plants in nursery and landscaping applications.

Model	Overall Length	Overall Width	Weight
Manual Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	754 lb / 342 kg
Hydraulic Nursery Fork	98.1 in / 2491 mm	52.2 in / 1327 mm	798 lb / 362 kg

Wheel Saws

Ideal for asphalt patch cutting, road expansion join cuts, and utility trenching.

Model	Maximum Cutting Depth	Wheel Width	Weight
SW345, 80 mm (3 in)	17.7 in / 450 mm	3.1 in / 80 mm	2482.4 lb / 1126 kg
SW345, 130 mm (5 in)	17.7 in / 450 mm	5.1 in / 130 mm	2239.9 lb / 1016 kg
SW360, 100 mm (4 in)	23.6 in / 600 mm	3.9 in / 100 mm	2943.2 lb / 1335 kg
SW360, 130 mm (5 in)	23.6 in / 600 mm	5.1 in / 130 mm	3009.3 lb / 1365 kg
SW360, 160 mm (6 in)	23.6 in / 600 mm	6.3 in / 160 mm	2899.1 lb / 1315 kg
SW360, 200 mm (8 in)	23.6 in / 600 mm	7.9 in / 200 mm	2921.1 lb / 1325 kg
SW360, 80 mm (3 in)	23.6 in / 600 mm	3.1 in / 80 mm	3174.7 lb / 1440 kg
SW380, 250 mm (10 in)	31.5 in / 800 mm	9.8 in / 250 mm	3196.7 lb / 1450 kg

Pickup Brooms

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Model	Overall Width	Sweeping Width	Brush Diameter
BP115C	78.3 in / 1990 mm	60 in / 1524 mm	26 in / 660 mm
BP118C	90.4 in / 2295 mm	72 in / 1829 mm	26 in / 660 mm
