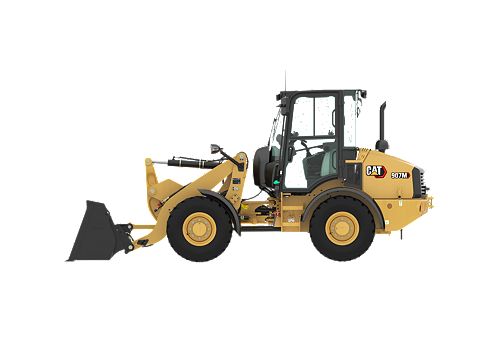

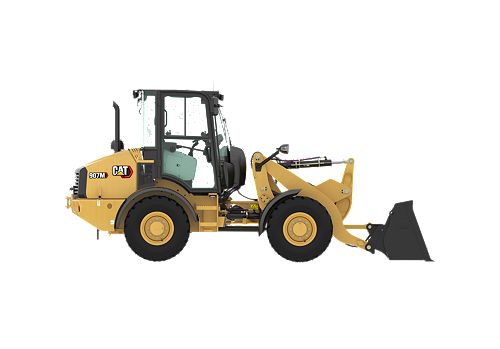

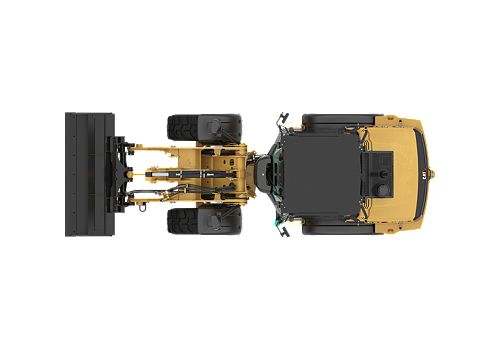

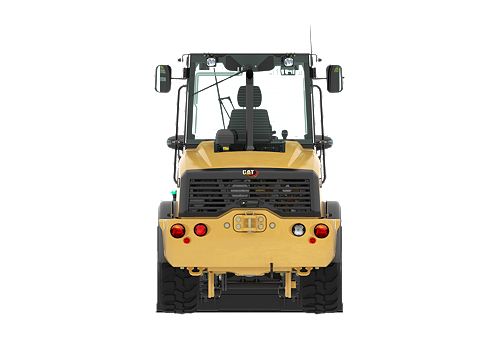

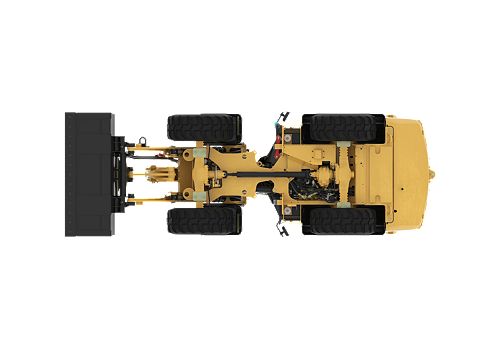

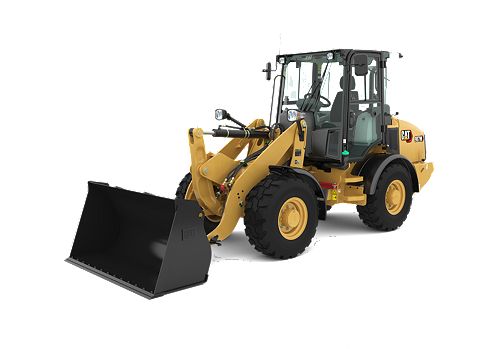

The Cat® 907M Compact Wheel Loader delivers high performance with outstanding versatility. On-the-go operator tuned hydraulics and drive train adjust the machine's response to the task at hand. Low sound levels, large spacious cab and intuitive controls keep you working comfortably all day long.
| Engine | |
|---|---|
| Maximum Gross Power | 73.2 HP / 54.6 kW |
| Engine Model | Cat® C3.3B DIT* |
| Maximum Gross Power - ISO 14396 | 73.2 HP / 54.6 kW |
| Maximum Gross Power - ISO 14396 (metric) | 74.2 HP |
| Rated Net Power - 2,400 rpm - SAE J1349 | 71.9 HP / 53.6 kW |
| Rated Net Power - 2,400 rpm - ISO 9249 | 72.9 HP / 53.6 kW |
| Maximum Gross Torque - ISO 14396 | 192 ft·lbf / 261 N·m |
| Maximum Net Torque - ISO 9249 | 191 ft·lbf / 260 N·m |
| Bore | 3.7 in / 94 mm |
| Displacement | 201 in³ / 3.3 l |
| Stroke | 4.7 in / 120 mm |
| Note (1) | Net power ratings are tested at the reference conditions for the specified standard. |
| Note (2) | Net power shown is the power available at the flywheel when the engine is equipped with alternator, air cleaner, diesel exhaust filter, and fan at minimum speed. |
| Note (3) | No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. |
| Note (4) | Flywheel per the SAE reference conditions with the fan at maximum speed. |
| Note (5) | The Cat C3.3B DIT Tier 4 Final/Stage V uses an active regeneration system which requires no operator interaction under normal conditions. |
| Note (6) | Stage V engine available for Europe only. |
| Emissions | *The Cat C3.3B DIT engine meets EU Stage V/U.S. EPA Tier 4 Final emission standards. |
| Weights | |
|---|---|
| Operating Weight | 12677 lb / 5750 kg |
| Note | Specifications shown are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, Dunlop 405/70 SPT9 tires, full fuel, comfort ROPS cab, standard flow hydraulics and skid-steer coupler. The 907M is configured with a 1.0 m³ (1.31 yd³) bucket with bolt-on cutting edge. |
| Service Refill Capacities | |
|---|---|
| Cooling System | 4.5 gal (US) / 16.5 l |
| Fuel Tank | 20.6 gal (US) / 78 l |
| Engine Oil | 3 gal (US) / 11.2 l |
| Hydraulic Tank | 12.2 gal (US) / 46 l |
| Hydraulic System - Including Tank | 18.5 gal (US) / 70 l |
| Transmission - Gear Box | 2.2 gal (US) / 8.5 l |
| Loader Hydraulic System | |
|---|---|
| Maximum Flow - Implement Pump | 19 gal/min / 73 l/min |
| Maximum Flow - Implement Pump - Auxiliary Function Standard Flow | 19 gal/min / 73 l/min |
| Maximum Flow - Implement Pump - Auxiliary Function High Flow | 31 gal/min / 116 l/min |
| Maximum Working Pressure - Implement Pump | 3408 psi / 23500 kPa |
| Relief Pressure - Tilt Cylinder Head | 4496 psi / 31000 kPa |
| Relief Pressure - Tilt Cylinder Rod | 2756 psi / 19000 kPa |
| 3rd Function Maximum Working Pressure | 3408 psi / 23500 kPa |
| Boost Flow Maximum Pressure | 3191 psi / 22000 kPa |
| Lift Cylinder, Double Acting - Bore Diameter | 3 in / 75 mm |
| Lift Cylinder, Double Acting - Rod Diameter | 2 in / 50 mm |
| Lift Cylinder, Double Acting - Stroke | 27.4 in / 695 mm |
| Tilt Cylinder, Double Acting - Bore Diameter | 3.5 in / 90 mm |
| Tilt Cylinder, Double Acting - Rod Diameter | 2.2 in / 55 mm |
| Tilt Cylinder, Double Acting - Stroke | 16.4 in / 417 mm |
| Hydraulic Cycle Time - 1,800 rpm - Raise, Ground Level to Maximum Lift | 5.5 s |
| Hydraulic Cycle Time - 1,800 rpm - Dump, at Maximum Lift Height | 1.5 s |
| Hydraulic Cycle Time - 1,800 rpm - Float Down, Maximum Lift to Ground Level | 2.6 s |
| Hydraulic Cycle Time - 1,800 rpm - Total Cycle Time | 9.6 s |
| Hydraulic Cycle Time - 1,000 rpm - Raise, Ground Level to Maximum Lift | 9.6 s |
| Hydraulic Cycle Time - 1,000 rpm - Dump, at Maximum Lift Height | 3 s |
| Hydraulic Cycle Time - 1,000 rpm - Float Down, Maximum Lift to Ground Level | 2.6 s |
| Operating Specifications | |
|---|---|
| Tipping Load - Straight - ISO 14397-1 | 9007 lb / 4087 kg |
| Tipping Load - Full Turn - ISO 14397-1 | 7339 lb / 3330 kg |
| Full Turn Tipping Load | 7716 lb / 3500 kg |
| Clearance - Full Lift and 45° Dump | 7.97 ft / 2429 mm |
| Reach - Full Lift and 45° Dump | 2.6 ft / 792 mm |
| Steering Articulation Angle - Each Direction | 39° |
| Rated Bucket Capacity | 1.31 yd³ / 1 m³ |
| Dimensions with Bucket (Approximate) - Standard Lift - With ISO Coupler | |
|---|---|
| Height - Ground to Cab** | 8.42 ft / 2586 mm |
| Height - Ground Clearance** | 11 in / 300 mm |
| Length - Wheel Base | 7.08 ft / 2170 mm |
| Length - Overall* | 17.92 ft / 5469 mm |
| Reach - Bucket at 45°* | 2.33 ft / 725 mm |
| Dig Depth** | 3.7 in / 95 mm |
| Clearance - Bucket at 45° * | 8.08 ft / 2478 mm |
| Clearance - Level Bucket** | 9.92 ft / 3027 mm |
| Height - Bucket Pin** | 10.58 ft / 3227 mm |
| Departure Angle | 33° |
| Turning Radius - Over Bucket | 14.67 ft / 4489 mm |
| Turning Radius - Inside of Tires | 7.33 ft / 2240 mm |
| Width - Bucket | 6.67 ft / 2045 mm |
| Width - Tread Center | 4.58 ft / 1420 mm |
| Machine Width | 6 ft / 1840 mm |
| Articulation Angle | 39° |
| Dump Angle at Full Lift | 45° |
| Operating Weight | 12913 lb / 5859 kg |
| Note (1) | *Vary with bucket. |
| Note (2) | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires. |
| Dimensions with Bucket (Approximate) - Standard Lift - With SSL Coupler | |
|---|---|
| Height - Ground to Cab** | 8.42 ft / 2586 mm |
| Height - Ground Clearance** | 11 in / 300 mm |
| Length - Wheel Base | 7.08 ft / 2170 mm |
| Length - Overall* | 18.42 ft / 5620 mm |
| Reach - Bucket at 45°* | 2.67 ft / 820 mm |
| Dig Depth** | 4.2 in / 107 mm |
| Clearance - Bucket at 45° * | 7.67 ft / 2359 mm |
| Clearance - Level Bucket** | 9.92 ft / 3035 mm |
| Height - Bucket Pin** | 10.58 ft / 3227 mm |
| Departure Angle | 33° |
| Turning Radius - Over Bucket | 14.67 ft / 4473 mm |
| Turning Radius - Inside of Tires | 7.33 ft / 2240 mm |
| Width - Bucket | 6.67 ft / 2045 mm |
| Width - Tread Center | 4.58 ft / 1420 mm |
| Machine Width | 6 ft / 1840 mm |
| Articulation Angle | 39° |
| Dump Angle at Full Lift | 45° |
| Operating Weight | 12913 lb / 5859 kg |
| Note (1) | *Vary with bucket. |
| Note (2) | **Vary with tire. |
| Note (3) | Dimensions listed are for a machine configured with general purpose buckets, bolt-on cutting edges, 75 kg (165 lb) operator, no air conditioner and Dunlop 405/70 SPT9 tires. |
| Steering | |
|---|---|
| Steering Articulation Angle - Each Direction | 39° |
| Steering Cylinder, Double Acting - Bore Diameter | 3.1 in / 80 mm |
| Steering Cylinder, Double Acting - Rod Diameter | 1.4 in / 35 mm |
| Steering Cylinder, Double Acting - Stroke | 11.8 in / 300 mm |
| Nominal Flow - Steering Pump | 12 gal/min / 43.9 l/min |
| Maximum Working Pressure - Steering Pump | 3191 psi / 22000 kPa |
| Maximum Steering Torque - 0° (Straight Machine) | 37155 ft·lbf / 50375 N·m |
| Maximum Steering Torque - 39° (Full Turn) | 27747 ft·lbf / 37620 N·m |
| Steering AC Cycle Times - Full Left to Full Right - 2,620 rpm | 3 s |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | <6 turns |
| Cab | |
|---|---|
| ROPS | ROPS: ISO 3471:2008 |
| FOPS | FOPS: ISO 3449:2005 Level II |
| Note (1) | Cat Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | The declared dynamic operator Sound Pressure level per ISO 6396:2008*, when the cab is properly installed and maintained, is 75 dB(A). The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). Optional Low Sound or Blue Angel selection will reduce this to 99 dB(A). |
| Note (3) | *The measurements were conducted with the cab doors and windows closed. |
| Drive Train | |
|---|---|
| Forward - Range 1 | 6 mile/h / 10 km/h |
| Forward - Range 2 | 12 mile/h / 20 km/h |
| Forward - High Range | 22 mile/h / 35 km/h |
| Reverse - High Range | 22 mile/h / 35 km/h |
| Reverse - Range 1 | 6 mile/h / 10 km/h |
| Reverse - Range 2 | 12 mile/h / 20 km/h |
| Tires | |
|---|---|
| Note (1) | *Standard tire. |
| Note (2) | Other tire choices available, contact your Cat dealer for details. |
| Note (3) | In certain applications, the loader's productive capabilities may exceed the tires' tonnes-km/h (ton-mph) capabilities. |
| Note (4) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
| Option (1) | 335/80 R18 XZSL Michelin |
| Option (2) | 340/80 R18 AT-R Firestone |
| Option (3) | 340/80 R18 XMCL Michelin |
| Option (4) | 340/80 R18 TRI2 Nokian |
| Option (5) | 340/80 R18 Bibload Michelin |
| Option (6) | 405/70 R18 SPT9 Dunlop* |
| Option (7) | 12.5/80 R18 Flexport™ |
| Buckets | |
|---|---|
| Bucket Capacities | 0.75-1.5 m3 (1.0-2.0 yd3) |
| Bucket Capacities - ISO Coupler | 0.75-1.5 m3 |
| Bucket Capacities - SSL Style Coupler | 1.0-2.0 yd3 |
| General Purpose | 0.8 m³ (1 yd³), 0.9 m³ (1.2 yd³), 1.0 m³ (1.3 yd³), 1.1 m³ (1.4 yd³), 1.3 m³ (1.7 yd³) |
| Light Material | 1.2 m³ (1.6 yd³), 1.5 m³ (2.0 yd³) |
| Multi-Purpose | 0.75 m³ (1.0 yd³), 0.9 m³ (1.2 yd³), 1.05 m³ (1.37 yd³) |
| Grapple | 0.9 m³ (1.2 yd³) heaped |
| Note | All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration. |
| Model | Overall Width | Overall Height | Capacity |
|---|---|---|---|
| 890 mm (35 in) | 50.6 in / 1285 mm | 22.4 in / 570 mm | 2004 lb / 909 kg |
| 890 mm (35 in) | 55.4 in / 1407 mm | 51.8 in / 1315 mm | 3007.1 lb / 1364 kg |
| 1140 mm (45 in) | 50.6 in / 1285 mm | 22.4 in / 570 mm | 2004 lb / 909 kg |
| 1140 mm (45 in) | 55.4 in / 1407 mm | 51.8 in / 1315 mm | 3007.1 lb / 1364 kg |
| Model | Overall Width | Weight | Required Hydraulics |
|---|---|---|---|
| DFS118 | 72.5 in / 1841 mm | 937 lb / 425 kg | Standard Flow |
| DFS121 | 84.5 in / 2146 mm | 1051.6 lb / 477 kg | Standard Flow |
| DFS124 | 96.5 in / 2451 mm | 1108.9 lb / 503 kg | Standard Flow |
| Model | Overall Width | Overall Height | Maximum Opening Width |
|---|---|---|---|
| 1803 mm (71 in) | 55.2 in / 1401 mm | 34.4 in / 873 mm | 71 in / 1803 mm |
| 2133 mm (84 in) | 55.2 in / 1401 mm | 34.4 in / 873 mm | 84 in / 2133 mm |
| Model | Capacity | Width | Required Hydraulics |
|---|---|---|---|
| MB200 | 0.26 yd³ / 0.2 m³ | 54.6 in / 1386 mm | Standard Flow |
| MB250 | 0.33 yd³ / 0.25 m³ | 54.7 in / 1390 mm | Standard Flow |
| Model | Height | Width | Weight |
|---|---|---|---|
| 1312 mm (52 in) | 21.7 in / 550 mm | 51.7 in / 1312 mm | 249.1 lb / 113 kg |
| Model | Roller Width | Overall Width | Maximum Angle - Right or Left |
|---|---|---|---|
| PR118 Hydraulic Angle | 72 in / 1829 mm | 81 in / 2057 mm | 20 degrees |
| PR118 Manual Angle | 72 in / 1829 mm | 81 in / 2057 mm | 20 degrees |
| PR121 Hydraulic Angle | 84 in / 2134 mm | 93 in / 2362 mm | 20 degrees |
| PR121 Manual Angle | 84 in / 2134 mm | 93 in / 2362 mm | 20 degrees |
| PR123 Hydraulic Angle | 90 in / 2286 mm | 99 in / 2515 mm | 20 degrees |
| Model | Drive Shaft Torque at Maximum Pressure | Drive Method | Mounting Bracket Design |
|---|---|---|---|
| A23 | 1699.3 lb/ft / 2304 N·m | Gerotor Motor - Direct Drive | Skid Steer Loader Coupler |
| A41 | 3037.3 lb/ft / 4118 N·m | Gerotor Motor - Single Planetary Reduction | Skid Steer Loader Coupler |
| Model | Working Width | Working Depth | Weight |
|---|---|---|---|
| LT114 | 53.3 in / 1354 mm | 25-152 mm (1-6 in) | 925.9 lb / 420 kg |
| LT118 | 72.8 in / 1848 mm | 25-152 mm (1-6 in) | 925.9 lb / 420 kg |
| Model | Working Width | Bucket Capacity - Struck | Weight |
|---|---|---|---|
| LR116 | 62 in / 1576 mm | 0.4 yd³ / 0.31 m³ | 1311.7 lb / 595 kg |
| LR119 | 74.1 in / 1883 mm | 0.4 yd³ / 0.34 m³ | 1439.6 lb / 653 kg |
| Model | Drum Width | Weight | Required Hydraulics |
|---|---|---|---|
| CV117 | 66 in / 1676 mm | 2063.5 lb / 936 kg | Standard Flow |
| CV119 | 73 in / 1854 mm | 2138.5 lb / 970 kg | Standard Flow |
| Model | Width | Weight | Height |
|---|---|---|---|
| 0.8 m3 (1.0 yd3), ISO Coupler, Bolt-On Cutting Edge | 74.4 in / 1890 mm | 1297.4 lb / 588.5 kg | 37.1 in / 943 mm |
| 0.8 m3 (1.0 yd3), Skid Steer Coupler, BOCE | 74.4 in / 1890 mm | 1177 lb / 533.9 kg | 37.1 in / 943 mm |
| 0.8 m3 (1.0 yd3), Skid Steer Coupler, Bolt-On Teeth | 74.4 in / 1890 mm | 1131 lb / 513 kg | 36.5 in / 927 mm |
| 0.8 m3 (1.0 yd3), Skid Steer Coupler | 74.4 in / 1890 mm | 684.1 lb / 310.3 kg | 36.5 in / 927 mm |
| 0.9 m3 (1.2 yd3), ISO Coupler, Bolt-On Cutting Edge | 81.9 in / 2080 mm | 1265 lb / 573.8 kg | 36.7 in / 933 mm |
| Model | Blade Width | Width - Fully Angled | Maximum Blade Angle - Right/Left of Center |
|---|---|---|---|
| 2007 mm (79 in) | 79 in / 2007 mm | 68.9 in / 1750 mm | 30 degrees |
| 2337 mm (92 in) | 92 in / 2337 mm | 80.7 in / 2049 mm | 30 degrees |
| Model | Width | Weight | Height - Grapples Closed |
|---|---|---|---|
| 2080 mm (82 in), Skid Steer Coupler, BOCE | 81.9 in / 2080 mm | 1295 lb / 587.4 kg | 41.5 in / 1054 mm |
| Model | Overall Width | Sweeping Width | Brush Diameter |
|---|---|---|---|
| BA118C Manual | 104 in / 2637 mm | 83 in / 2119 mm | 32 in / 815 mm |
| BA118C Hydraulic | 104 in / 2637 mm | 83 in / 2119 mm | 32 in / 815 mm |
| BA22 Hydraulic, 12V | 94.5 in / 2400 mm | 86.6 in / 2200 mm | 27.6 in / 700 mm |
| Model | Overall Width | Maximum Load Rating | Maximum Horizontal Reach |
|---|---|---|---|
| Material Handling Arm | 51.8 in / 1316 mm | 1999.6 lb / 907 kg | 84 in / 2134 mm |
| Model | Required Hydraulics | Cutting Wheel Diameter - With Teeth | Cutting Depth - Below Ground |
|---|---|---|---|
| SG16 | Standard Flow | 21.5 in / 547 mm | 20.5 in / 521 mm |
| Model | Blade Width | Width - Fully Angled | Maximum Blade Angle - Right/Left of Center |
|---|---|---|---|
| 1829 mm (72 in) | 72 in / 1829 mm | 66.3 in / 1685 mm | 30 degrees |
| 2134 mm (84 in) | 84 in / 2134 mm | 76.7 in / 1949 mm | 30 degrees |
| Model | Overall Length | Overall Width | Weight |
|---|---|---|---|
| Manual Nursery Fork | 98.1 in / 2491 mm | 52.2 in / 1327 mm | 754 lb / 342 kg |
| Hydraulic Nursery Fork | 98.1 in / 2491 mm | 52.2 in / 1327 mm | 798 lb / 362 kg |
| Model | Maximum Cutting Depth | Wheel Width | Weight |
|---|---|---|---|
| SW345, 80 mm (3 in) | 17.7 in / 450 mm | 3.1 in / 80 mm | 2482.4 lb / 1126 kg |
| SW345, 130 mm (5 in) | 17.7 in / 450 mm | 5.1 in / 130 mm | 2239.9 lb / 1016 kg |
| SW360, 100 mm (4 in) | 23.6 in / 600 mm | 3.9 in / 100 mm | 2943.2 lb / 1335 kg |
| SW360, 130 mm (5 in) | 23.6 in / 600 mm | 5.1 in / 130 mm | 3009.3 lb / 1365 kg |
| SW360, 160 mm (6 in) | 23.6 in / 600 mm | 6.3 in / 160 mm | 2899.1 lb / 1315 kg |
| SW360, 200 mm (8 in) | 23.6 in / 600 mm | 7.9 in / 200 mm | 2921.1 lb / 1325 kg |
| SW360, 80 mm (3 in) | 23.6 in / 600 mm | 3.1 in / 80 mm | 3174.7 lb / 1440 kg |
| SW380, 250 mm (10 in) | 31.5 in / 800 mm | 9.8 in / 250 mm | 3196.7 lb / 1450 kg |
We'll do our best to get back to you as soon as possible.
