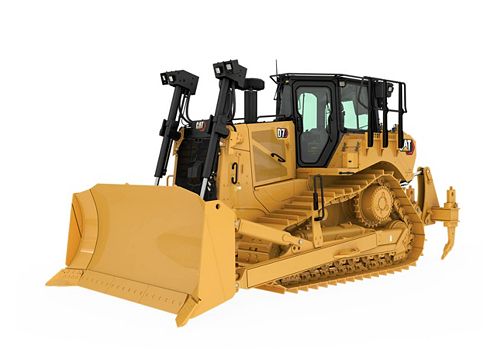

The Cat® D7 dozer delivers more productivity and high drive undercarriage value. Fully automatic 4-speed transmission makes efficient operation easy. The broadest range of technology features in the industry help you make the most of your equipment investment.
| Engine | |
|---|---|
| Engine Model | Cat C9.3B |
| Power - Net | 265 HP / 197 kW |
| Net Power - Rated - ISO 9249/SAE J1349 | 265 HP / 197 kW |
| Net Power (Rated) - ISO 9249 (DIN) | 268 mhp |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V/Japan 2014/Korea Stage V/China Nonroad Stage IV |
| Note (1) | Net power at 2,200 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 17A |
| Weights | |
|---|---|
| Operating Weight | 65644 lb / 29776 kg |
| Note (1) | Standard SU operating weight includes ripper with three shanks adding approximately 2993 kg/6596 lbs. LGP S operating weight with drawbar. |
| Transmission | |
|---|---|
| Power Train | Fully Automatic 4-Speed |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 123 gal (US) / 465 l |
| DEF Tank | 12 gal (US) / 44 l |
| Standard SU | |
|---|---|
| Operating Weight | 65644 lb / 29776 kg |
| Ground Pressure | 10 psi / 72 kPa |
| Width of Standard Shoe | 24 in / 610 mm |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 10 yd³ / 7 m³ |
| LGP S | |
|---|---|
| Operating Weight | 63220 lb / 28677 kg |
| Ground Pressure | 6 psi / 43 kPa |
| Width of Standard Shoe | 36 in / 915 mm |
| Blade | Straight (S) |
| Blade Capacity | 8 yd³ / 6 m³ |
| Waste Handler | |
|---|---|
| Operating Weight | 62035 lb / 28140 kg |
| Ground Pressure | 10 psi / 68 kPa |
| Width of Standard Shoe | 24 in / 610 mm |
| Blade | Universal Landfill (U) |
| Blade Capacity | 22 yd³ / 17 m³ |
| Sustainability | |
|---|---|
| Recyclability | 98% |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
| Product Specifications | |
|---|---|
| Note (2) | Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. |
