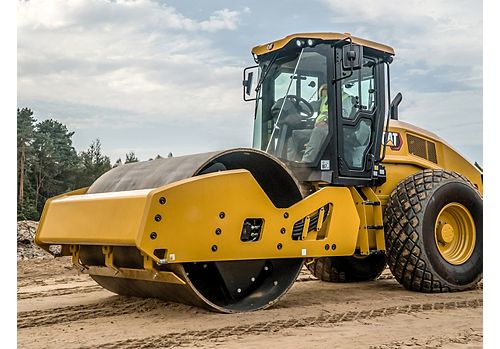

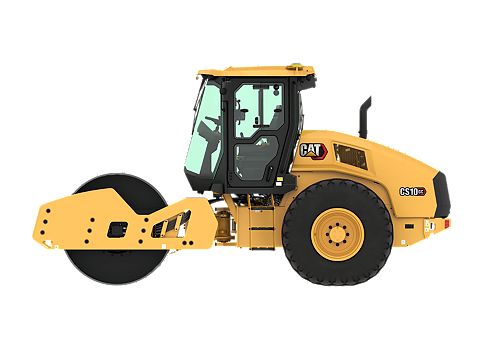

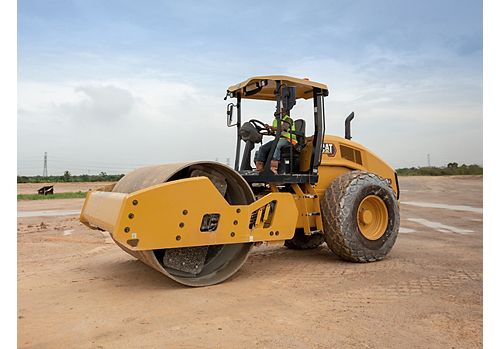

CS10 GC

Operating Weight - With ROPS/FOPS
23136 lb / 10494 kg
Compaction Width
84 in / 2134 mm
Gross Power
120.7 HP / 90 kW

GC Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations.

Weights
Operating Weight - With ROPS/FOPS 23136 lb / 10494 kg
Operating Weight - With ROPS/FOPS Canopy 22796 lb / 10340 kg
Weight - Drum with ROPS/FOPS 12948 lb / 5873 kg
Weight - Drum with ROPS/FOPS Canopy 12853 lb / 5830 kg
Operating Specifications
Compaction Width 84 in / 2134 mm
Curb Clearance 19.4 in / 492 mm
Ground Clearance 20.4 in / 518 mm
Turning Radius - Inside Drum Edge 12.7 ft / 3.9 m
Travel Speed - Maximum 6.8 mile/h / 11 km/h
Static Linear Load - With ROPS/FOPS 154.1 lb/in / 27.5 kg/cm
Engine
Gross Power 120.7 HP / 90 kW
Engine Model Cat C3.6
Net Power - ISO 9249 112.2 HP / 83.7 kW
Net Power - SAE J1349 111.2 HP / 82.9 kW
Stroke 4.7 in / 120 mm
Bore 3.9 in / 98 mm
Dimensions
Overall Length 18.7 ft / 5.7 m
Overall Width 7.5 ft / 2.3 m
Drum Width 84 in / 2134 mm
Height - With ROPS/FOPS or Cab 9.8 ft / 3 m
Drum Diameter 60.4 in / 1535 mm
Optional Blade Height 688 mm / 27.1 in
Wheel Base 9.8 ft / 3 m
Vibratory System
Nominal Amplitude - High 0.079 in / 2 mm
Nominal Amplitude - Low 0.039 in / 1 mm
Centrifugal Force - Maximum 56202 lbf / 250 kN
Centrifugal Force - Minimum 33497 lbf / 149 kN
Vibratory Frequency - Ecomode 28.6-31.5 Hz
Vibratory Frequency - Ecomode 1716-1890 vpm
Vibratory Frequency - Standard 1800-1980 vpm
Vibratory Frequency - Standard 30-33 Hz
Service Refill Capacities
Fuel Tank Capacity 56.3 lb / 213 l
Tires
Tires 23.1 x 26

Standard Equipment

  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Canopy with Handrails/Guardrails, Floor Mat
    • Vinyl Adjustable Seat, Seat Belt
    • Adjustable Tilting Steering Column
    • 12-volt Power Outlet
  • VIBRATORY SYSTEM
    • Dual Amplitude, Dual Frequency
    • Pod-Style Eccentric Weight Housings
    • Auto-vibe Function
    • Rear Adjustable Steel Scraper
    • Smooth Drum
  • POWER TRAIN
    • Cat C3.6 Diesel Engine, 4 cylinder
    • Single Propel Pump
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Radiator/Hydraulic Oil Cooler
    • Dual Braking System
    • Two-speed Hydrostatic Transmission
  • ELECTRICAL
    • 12 volt Electrical System
    • 150 ampere Alternator
    • 900 Cold-cranking Amps Battery Capacity
  • STANDARD
    • ProductLinkTM
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • High Ambient Temperature Oil Factory Fill

Optional Equipment

  • VIBRATORY SYSTEM
    • Padfoot Shell Kit (oval or square pads available)
    • Dual Adjustable Steel Scrapers
    • Dual Adjustable Polyurethane Scrapers
  • OPERATOR ENVIRONMENT
    • ROPS/FOPS Cab with Climate Control
    • Deluxe High-back Air-ride seat (Cab)
    • Sun/Debris Shields (Canopy)
    • Cab Internal Roll-down Sun Screen (Cab)
    • Rear View Camera with Color Touchscreen Display
    • Sound Reduction Kit
  • POWER TRAIN
    • Transmission Guard
  • TECHNOLOGY SOLUTIONS
    • Measure - Compaction Meter Value (CMV)
    • Map - SBAS GNSS Mapping
    • Connect - Cloud and Machine Connectivity
  • OTHER
    • XT Weight Kit
    • Upgraded LED Light Package
    • Amber Rotating Beacon
    • Flotation Tread or Lug Tread Tires
