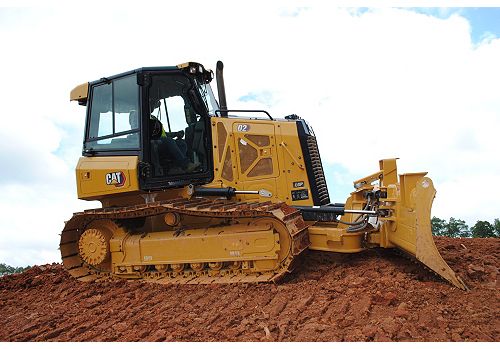

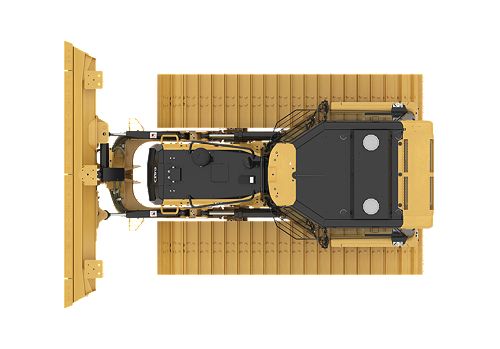

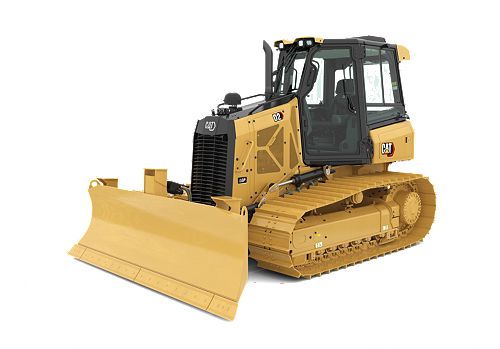

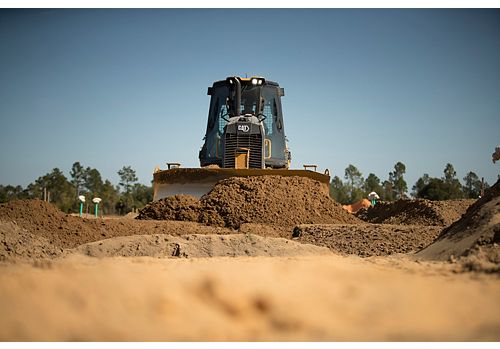

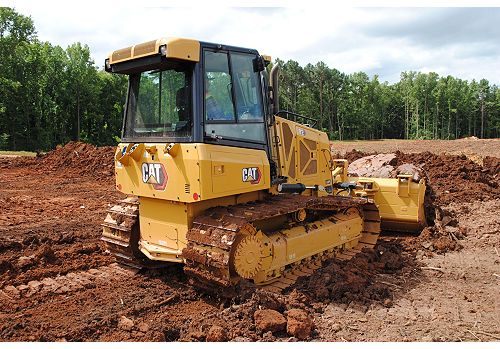

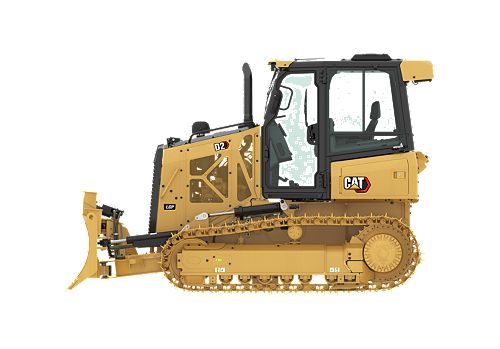

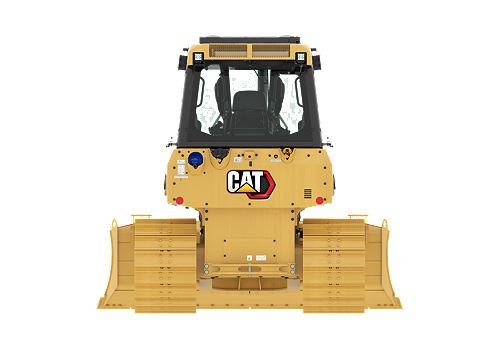

D2

Power - Net: 92 hp / 68.8 kW
Operating Weight: 18382 lb / 8338 kg
Operating Weight: 18382 lb / 8338 kg

The Cat® D2 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.

Loan Calculator Credit Application

Build & Quote

D2 Small Product Brochure D2 Large Product Brochure D1, D2, D3 Shiphold Product Brochure D1, D2, D3 Fire Suppression Dozers Product Brochure (N Am, Aus-NZ) Options and Accessories Kit Guide for Small Track Type Tractors

Specifications
Equipment
Related Products

Engine
Engine Model	Cat® C3.6
Power - Net	92 hp / 68.8 kW
Displacement	220 in³ / 3.6 l
Net Power - 2,200 rpm - SAE J1349	92 hp / 68.8 kW
Net Power - 2,200 rpm - ISO 9249/EEC 80/1269	92 hp / 68.8 kW
Note (1)	Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the ?ywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)	All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.

Engine
Power Train	Hydrostatic

Weights
Operating Weight	18382 lb / 8338 kg
Operating Weight	18382 lb / 8338 kg
Operating Weight - LGP	19066 lb / 8648 kg
Note (2)	For machine with ripper, add 554 kg (1,222 lb).
Note (1)	Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.

Cab
FOPS	ISO 3449:2005 Level II
ROPS	ISO 3471:2008

Transmission
Drive Pumps	1
Maximum Travel Speed - Forward	5.6 mile/h / 9 km/h
Relief Valve Settings	7033 psi / 48500 kPa
Maximum Travel Speed - Reverse	6.2 mile/h / 10 km/h
Track Motors	2

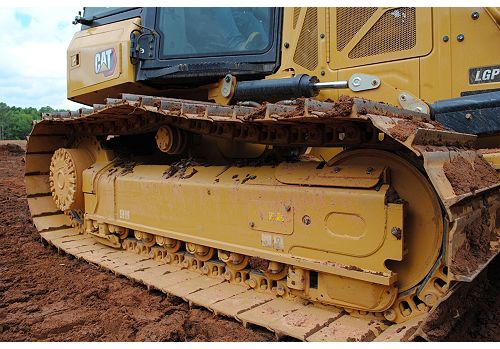

Undercarriage
Length - Track on Ground - LGP	89 in / 2248 mm
Track Gauge	61 in / 1550 mm
Number of Rollers - Each Side	7
Track Gauge - LGP	68 in / 1725 mm
Ground Pressure - LGP	4.3 psi / 29.7 kPa
Shoe Width - Standard	18 in / 460 mm
Shoe Width - LGP	25 in / 635 mm
Number of Shoes - Each Side - Sealed and Lubricated Track (SALT) Undercarriage	43

Undercarriage
Number of Shoes - Each Side - Abrasion Undercarriage	38
Ground Pressure	5.7 psi / 39.5 kPa
Length of Track on Ground	89 in / 2248 mm

Service Refill Capacities
Fuel Tank	51.5 gal (US) / 195 l
Crankcase - With Filter	2.8 gal (US) / 10.5 l
Final Drive - Each - LGP	2.6 gal (US) / 10 l
Cooling System	5 gal (US) / 19 l
Transmission - Hydraulic Tank	23.8 gal (US) / 90 l
Diesel Exhaust Fluid (DEF) Tank	4.9 gal (US) / 19 l

Service Refill Capacities
Final Drives - Each Side	2.6 gal (US) / 10 l

Hydraulic Controls
Pump Output	17.2 gal/min / 65 l/min
Relief Valve Settings	2988 psi / 20600 kPa

Ripper
Type	Parallelogram
Number of Shanks	3
Height	6.5 in / 165 mm
Weight	1222 lb / 554 kg
Maximum Digging Depth	13.3 in / 337.5 mm
Maximum Ground Clearance Under Tip	17.6 in / 448 mm
Overall Width	67.3 in / 1710 mm
Maximum Reach - Ground Line	30.2 in / 766 mm

Air Conditioning System
Air Conditioning	The air conditioning system on this machine contains the ?uorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.

Dimensions
BLADE: Digging Depth - LGP	23.2 in / 589 mm
BLADE: Blade Cutting Edge Angle, Adjustable - LGP	52° to 58°
BLADE: Blade Lift Height - LGP	27.9 in / 708 mm
BLADE: Blade Width - LGP	124 in / 3149 mm
BLADE: Blade Width at Maximum Angle - LGP	113.1 in / 2874 mm
Track Gauge - LGP	67.9 in / 1725 mm
Ground Clearance - LGP	13 in / 332 mm
BLADE: Blade Height - LGP	35.8 in / 910 mm
Overall Length - With Blade - LGP	168.2 in / 4272 mm
BLADE: Blade Capacity (SAE) - LGP	2.42 yd³ / 1.85 m³
BLADE: Maximum Tilt - LGP	17.2 in / 438 mm
BLADE: Maximum Angle (either side) - LGP	25°
Note	Abrasion Undercarriage
Length of Basic Dozer (without blade) - LGP	129.5 in / 3290 mm
Width of Dozer (standard shoes, no blade) - Standard	79.1 in / 2010 mm
Dozer Height - LGP	108.9 in / 2765 mm
Dozer Height - Standard	108.9 in / 2765 mm
Width of Dozer (standard shoes, no blade) - LGP	92.9 in / 2360 mm
Length of Basic Dozer (without blade) - Standard	129.5 in / 3290 mm

Dimensions
BLADE: Maximum Angle (either side) - Standard	25°
Ground Clearance - Standard	13 in / 332 mm
Overall Length - With Blade - Standard	168.5 in / 4281 mm
BLADE: Blade Cutting Edge Angle, Adjustable - Standard	52° to 58°
BLADE: Maximum Tilt - Standard	15.2 in / 387 mm
Track Gauge - Standard	61 in / 1550 mm
BLADE: Digging Depth - Standard	23.3 in / 593 mm
BLADE: Blade Width - Standard	109.5 in / 2782 mm
BLADE: Blade Lift Height - Standard	29.3 in / 743 mm
BLADE: Blade Capacity (SAE) - Standard	2.59 yd³ / 1.98 m³
BLADE: Blade Width at Maximum Angle - Standard	100.1 in / 2542 mm
Note	With Ripper Attachment (add to Length of Basic Dozer) - 1177 mm (46.3 in)
BLADE: Blade Height - Standard	39.8 in / 1010 mm

Retrieval Winch
Maximum Line Speed - Full Drum	79 ft/min / 24 m/min
Maximum Line Speed - Bare Drum	50 ft/min / 15 m/min
Weight	1747 lb / 794 kg
Drum Capacity - Optional Cable	195 ft / 59 m
Rope Diameter - Recommended	0.63 in / 16 mm
Winch Drive	Hydraulic
Rope Diameter - Optional	0.75 in / 19 mm
Drum Capacity - Recommended Cable	277 ft / 84 m
Maximum Line Pull - Full Drum	20350 lb / 9231 kg
Speed	Variable
Maximum Line Pull - Bare Drum	32150 lb / 14583 kg
Control	Hydraulic
Overall width	27.91 in / 709 mm
Drum Width	9.65 in / 245 mm
Drum Diameter	8 in / 203.2 mm
Winch Length	35.63 in / 905 mm
Throat Clearance	5.6 in / 141.4 mm

High Performance Winch
Maximum line pull – bare drum	40000 lb / 18144 kg
Drum capacity – recommended cable	371 ft / 113 m
Winch length	27.76 in / 705 mm
Overall width	29.2 in / 741 mm
Control	Hydraulic
Maximum line speed – bare drum	131 ft/min / 40 m/min
Maximum line speed – full drum	207 ft/min / 63 m/min
Drum width	10.8 in / 274 mm
Drum capacity – optional	256 ft / 78 m
Throat clearance	6.75 in / 171.5 mm
Weight	1345 lb / 610 kg
Rope diameter – recommended	0.63 in / 16 mm
Speed	Variable
Maximum line pull – full drum	25000 lb / 11340 kg
Drum diameter	10 in / 254 mm
Rope diameter – optional	0.75 in / 19 mm
Winch drive	Hydrostatic

Standard Equipment

POWER TRAIN
- Air cleaner with precleaner, automatic dust ejection and under hood intake
- Aluminum bar plate cooling system (radiator, power train)
- Automatic traction control
- Cat C3.6 diesel engine
- Drive, auxiliary
- Dual path, closed loop, hydrostatic transmission
- Electric fuel pump
- Fuel/water separator
- Turbocharged aftercooled
ELECTRICAL
- Alarm, backup
- Alternator, 150 amp, heavy duty
- Batteries, heavy duty, maintenance free, 1,000 CCA
- Diagnostic connector
- Four integrated front halogen lights, two rear halogen
- Horn, electric
- Starter, electric, 12 V, heavy duty
UNDERCARRIAGE
- Heavy Duty (HD) Undercarriage (43 section)
- Carrier rollers
- Guards, front/rear guiding
- Seven roller track frame
- Track adjusters, hydraulic
- Track rollers, lifetime lubricated
HYDRAULIC
- Hydraulic pump and oil
- Single lever, three function control
- Three valve hydraulics
CAT TECHNOLOGY
- Low Slip Traction Control (included with ARO and Cat Grade 3D)
- Slope Indicate
- Cat Product Link™ PLE643/PLE743 Cellular
- Third party 3D grade system compatible
- Stable Blade – Basic Lift
- Slope Indicate
ATTACHMENTS
- Rigid drawbar
- Front pull device
OPERATOR ENVIRONMENT
- Armrests, adjustable
- Coat hook
- Controls, seat mounted, fore/aft adjustment
- Cup holders
- Eco Mode
- Electronic Monitoring system with gauge:
  – Chassis slope indication
  – Diesel exhaust fluid (DEF)
  – Engine coolant temperature
  – Fuel level
  – Hydraulic oil temperature
- Electronic security system
- Engine air cleaner service indicator
- Engine RPM and gear display
- Floor mat, rubber, heavy duty
- Foot pads, dash
- Hour meter, electronic
- Independent forward/reverse speed settings
- Mirror, rearview, inside
- Power port, 12 volt
- ROPS/FOPS canopy
- Seat, air suspended, cloth or vinyl
- Seatbelt, hi-vis retractable 76 mm (3")
- Seatbelt buckling indicator/reminder
- Single pedal combining decel and brake functions
- Speed recall
- Storage compartment
- Throttle switch, rotary
- Travel speed limiter, electronic

Optional Equipment

POWER TRAIN
- Air cleaner with external precleaner
- Installation, winch
ELECTRICAL
- Four integrated front LED lights, two rear LED
UNDERCARRIAGE
- Abrasion Undercarriage (38 section)
- Track Pairs
  – Track, 460 mm (18 in)
  – Track, 635 mm (25 in)
HYDRAULIC
- Four valve for use with ripper
- Four valve for use with winch
CAT TECHNOLOGY
- Cat Grade with Slope Assist
- Cat Command Station (availability varies by region
- Cat Command Console (availability varies by region)
- Full-color 254 mm (10 in) touchscreen grade display
- Cat Product Link PLE683/PLE783 Cellular/Satellite
- Grade 3D with Assist includes:
  – Same Assist with ARO features
  – Steer Assist 3D
  – Grade 3D
- Assist with Attachment Ready Option (ARO) includes:
  – Slope Indicate
  – Blade Load Monitor
  – Stable Blade Lift and Tilt
  – Slope Assist
  – Traction Control
  – Steer Assist
  – AutoCarry
ATTACHMENTS
- Drawbar, towing
- Machine security system
- Mounting, winch
- Ripper, parallelogram, includes three shanks and teeth
- Winch, hydraulic, high performance
- Winch, hydraulic, retrieval
OPERATOR ENVIRONMENT
- Power Pitch
- Cab, with air conditioning
- Cab, polycarbonate windows and air conditioning
- Radio, AM/FM Bluetooth®
- Seat, air suspended, cloth or vinyl
- Seat, air suspension, choice of:
  – Vinyl, heated seat with heated controls
  – Cloth, heated seat with heated controls
  – Cloth, heated and ventilated seat with heated controls
- Sound suppression
OTHER
- Heater, engine, coolant 120 V/240 V
- Starting aid, ether
