CP11 GC
- Operating Weight - With Cab
- 25109 lb / 11389 kg
- Compaction Width
- 84 in / 2134 mm
- Gross Power
- 122.9 hp / 91.7 kW

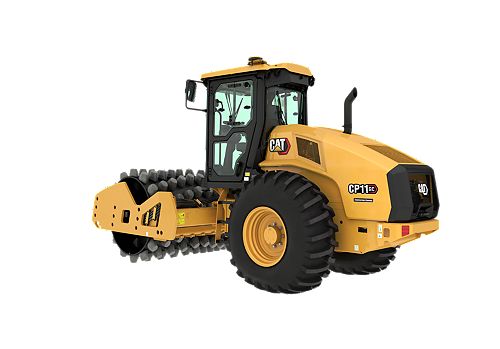

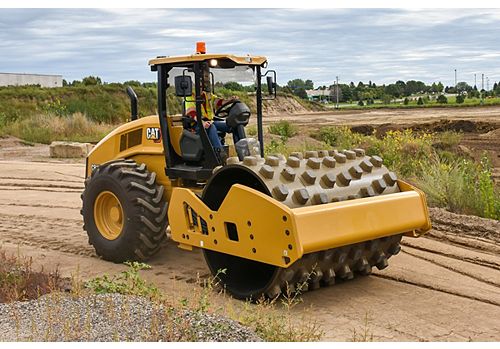

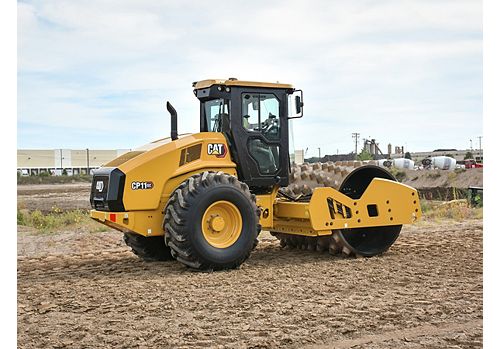

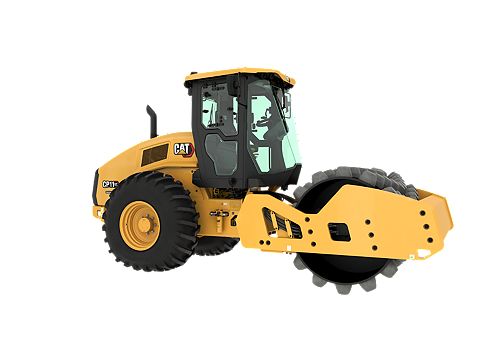

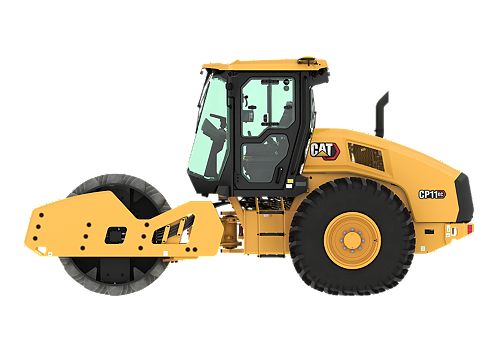

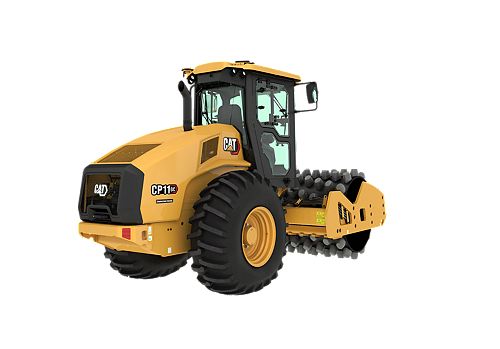

The Cat® CP11 GC Vibratory Soil Compactors bring a balance of easy operation, low operating costs and performance-boosting technology to the jobsite. Using a proven vibratory system designed for high reliability, the CP11 GC padfoot roller is ideally suited for cohesive and semi-cohesive soil applications.
| Engine | |
|---|---|
| Gross Power | 122.9 hp / 91.7 kW |
| Engine Power - ISO 14396 | 121 hp / 90 kW |
| Net Power - ISO 9249 | 112.2 hp / 83.7 kW |
| Net Power - SAE J1349:2011 | 111.2 hp / 82.9 kW |
| Note (1) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model | Cat® C3.6 |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Stroke | 4.7 in / 120 mm |
| Bore | 3.9 in / 98 mm |
| Weights | |
|---|---|
| Operating Weight - With Cab | 25109 lb / 11389 kg |
| Operating Weight - With ROPS/FOPS Canopy | 24769 lb / 11235 kg |
| Weight - Drum with Cab | 14084 lb / 6388 kg |
| Weight - Drum with ROPS/FOPS Canopy | 13988 lb / 6345 kg |
| Note (1) | Operating weights are approximate and consider full fluids and 75 kg (165 lb) operator. Cab weights include heat and air conditioning. |
| Vibratory System | |
|---|---|
| Nominal Amplitude - High | 0.071 in / 1.8 mm |
| Nominal Amplitude - Low | 0.035 in / 0.89 mm |
| Centrifugal Force - Maximum | 55932 lb / 249 kN |
| Centrifugal Force - Minimum | 33249 lb / 148 kN |
| Dimensions | |
|---|---|
| Compaction Width | 84 in / 2134 mm |
| Overall Length | 18.7 ft / 5.7 m |
| Overall Width | 7.5 ft / 2.3 m |
| Maximum Height | 9.8 ft / 3 m |
| Drum Diameter - Over Pads | 60.9 in / 1549 mm |
| Wheel Base | 9.8 ft / 3 m |
| Operating Specifications | |
|---|---|
| Ground Clearance | 20.3 in / 516 mm |
| Curb Clearance | 19.5 in / 496 mm |
| Turning Radius - Inside Drum Edge | 12.7 ft / 3.9 m |
| Travel Speed - Maximum | 6.8 mile/h / 11 km/h |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 56.3 gal (US) / 213 l |
| DEF Tank | 5 gal (US) / 19 l |
| Cooling System | 4.9 gal (US) / 18.5 l |
| Engine Oil - With Filter | 3.1 gal (US) / 11.6 l |
| Eccentric Weight Housings (combined) | 6.9 gal (US) / 26 l |
| Axle and Final Drives | 2.6 gal (US) / 10 l |
| Hydraulic Tank | 6.1 gal (US) / 23 l |
| Sustainability | |
|---|---|
| Recyclability | 97% |
