140 Next Gen

Net Power - ISO 9249/SAE J1349: 255 hp / 190 kW
Operating Weight - Typically Equipped: 42543 lb / 19531 kg
Blade Width: 12 ft / 4267 mm

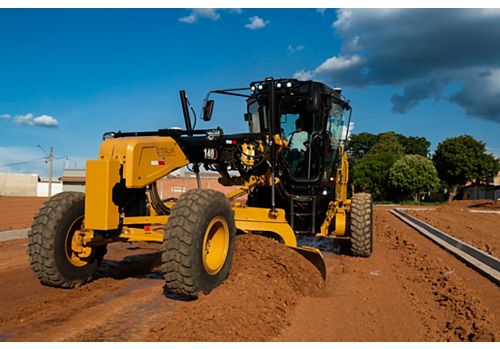

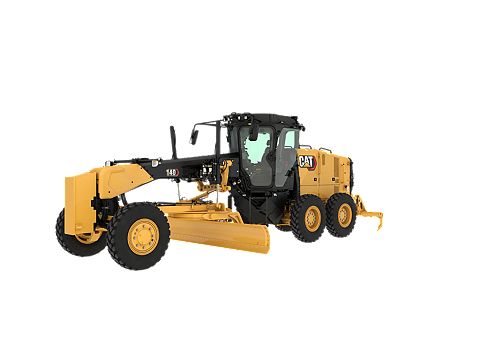

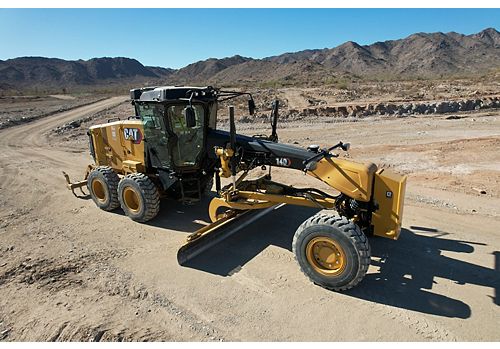

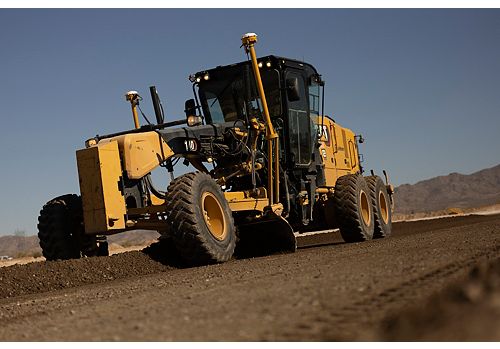

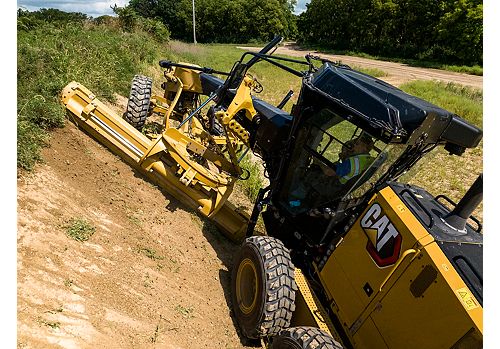

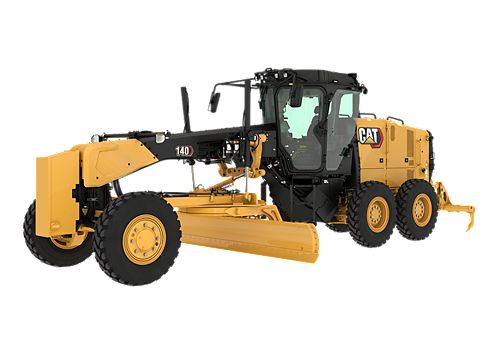

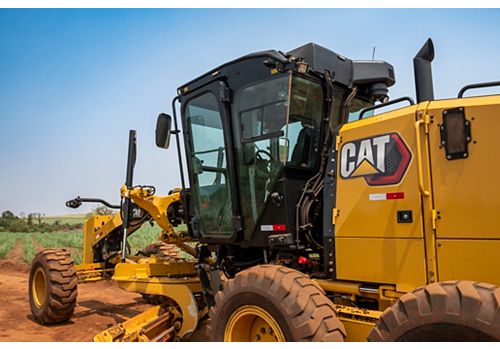

The Cat® 140 motor grader is a mid-size machine ideal for road maintenance. It delivers the right balance of power, control, and blade reach for grading, crowning, and ditching. Maintain your gravel, secondary roads in comfort with the redesigned cab.

Loan Calculator Credit Application

Build & Quote

140 Motor Grader Key Features 140 Motor Grader Product Brochure 140 Motor Grader Technical Specifications 140 Motor Grader Power to the Ground Key Features Cat Technologies for Motor Graders Brochure Cat Grade Technologies for Motor Graders Brochure Motor Grader Rig Out Catalog Motor Grader Application Guide

Specifications
Equipment
Related Products

Engine
Net Power - ISO 9249/SAE J1349	255 hp / 190 kW
Engine Model	Cat® C7.1
Bore	4.1 in / 105 mm
Stroke	5.3 in / 135 mm
Displacement	1.9 Gal / 7.01 l
Number of Cylinders	6

Weights
Operating Weight - Typically Equipped	42543 lb / 19531 kg

Machine Weight
Joystick Weight* Tier 4	42543 lb / 19297 kg
Joystick All-Wheel Drive (AWD) Weight* Tier 4	43497 lb / 19730 kg
Note (1)	* Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment.

Moldboard
Blade Width	12 ft / 4267 mm

Power Train
Forward/Reverse Gears	9 Forward / 6 Reverse
Transmission	Countershaft Torque Converter Powershift
Brakes - Service	Dual Circuit Hydraulic
Brakes - Secondary	Dual Circuit Hydraulic
Brakes - Parking	Spring Applied Hydraulic Release

Hydraulic System
Circuit Type	Parallel
Pump Type	Variable Piston
Pump Output*	3503 psi / 24150 Pa
Reservoir Tank Capacity	15.9 Gal / 60 l
Note	*Pump output measured at 2000 RPM rated speed

Service Refill Capacities
Cooling System	11.4 Gal / 43 l
Diesel Exhaust Fluid Tank (Tier 4 Only)	6.6 Gal / 25 l
Engine Crankcase	5.3 Gal / 20 l
Fuel Tank	98 Gal / 371 l
Hydraulic System	15.9 Gal / 60 l
Transmission and Differential	18 Gal / 68 l

Dimensions
Height - Top of Cab	136 in / 3454 mm
Height - Front Axle Center	24.1 in / 612 mm
Height - Top of Cylinders	119.8 in / 3044 mm
Height - Exhaust Stack	130.4 in / 3313 mm
Length - Push Plate to Ripper	405 in / 10297 mm
Length - Front Tire to Rear of Machine	350.8 in / 8911 mm
Length - Between Tandem Axles	59 in / 1498 mm
Width - Tire Center Lines	82.2 in / 2087 mm
Ground Clearance - Rear Axle	13.1 in / 333 mm
Note	All dimensions are approximate and apply to all 140 configurations (Non-AWD, AWD, LVR, and Joystick) unless otherwise noted.

Standards
Steering	ISO 3449:2005, Level II
Brakes	ISO 3450:2011; AIS-143:2018
Sound	ISO 6396: ISO 6395

Air Conditioning System
Note	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons).

Standard Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Adjustable steering wheel/lever controls
- Seat belt
- Electric throttle control
- Fully redesigned cab with sound suppression and integrated Roll Over Protective Structure (ROPS) and Falling Object Protection System (FOPS)
- Full color ten-inch (254 mm) liquid crystal touch screen display
- Added storage areas
- Information display screen
- Entertainment radio ready
- Cup holder
- Cell phone holder
- Dome interior light
- Coat hook
- Front wipers
SAFETY
- Back-up alarm
- Grab rails
- Hydraulic brakes
- Hydraulic system - integrated dead engine implement lower
- Hydraulic system - integrated work port pressure relief
- Parking brake
- Rearview mirror
- Side view mirrors
- Signaling/warning horn
POWERTRAIN
- Cat C7.1 diesel engine
- Eco mode
- On-demand fan
- 43° C (109° F) standard capacity
DRAWBAR CIRCLE MOLDBOARD
- Standard drawbar circle moldboard
- Circle drive slip clutch
ELECTRICAL
- Reversing lights
- Breaker panel
- 900 CCA standard duty batteries
- Electric starter
- Rear lights with LED lighting
- Halogen lighting
SERVICE AND MAINTENANCE
- Ground Level DEF and Fuel Fill
- Grouped location for engine oil and fuel filters
- Extended life coolant
- Next Generation Filters for Fuel and Engine Oil
GUARDS
- Transmission

Optional Equipment

NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- Lower front wipers
- Mechanical suspension seat
- Heated / cooled air suspension seat
- Heating/cooling cab system
- Defrost fans
- Rear wiper
- Cab plus
- Rear window screen
- Digital blade slope meter
- Product Link
SAFETY
- Four-point safety harness seat belt
- Operator Presence System
- Rearview camera
- Secondary steering system
- Walkways
- Warning beacon
POWERTRAIN
- Heavy duty starter
- Transmission with Autoshift
DRAWBAR CIRCLE MOLDBOARD
- Top Adjust Drawbar
- High Performance Circle
- Circle drive slip clutch
- Circle saver
- Remote Pinion Lube
- 4.9 m (16 foot) Moldboard
ELECTRICAL
- 145A Brushed Alternator
- 1,400 CCA heavy duty batteries
SERVICE AND MAINTENANCE
- Fast fuel fill ready
- Underhood Lighting
GUARDS
- Fender
- Cover, under cab platform
- Steering Cylinder Guards
VERSATILITY
- Towing hitch
- L3 tires
- Sy-Klone pre-cleaner
ATTACHMENTS AVAILABLE FROM FACTORY
- Lift Groups
- High Performance Circle
- Counterweight
- Push block
- Mid-Machine Scarifier (MMS)
- Rear Ripper/Scarifier
- Moldboards
- Front Blade
ATTACHMENTS
- Lift Groups
- High Performance Circle
- Counterweight
- Push block
- Mid-Machine Scarifier (MMS)
- Rear Ripper/Scarifier
- Moldboards
- Front Blade

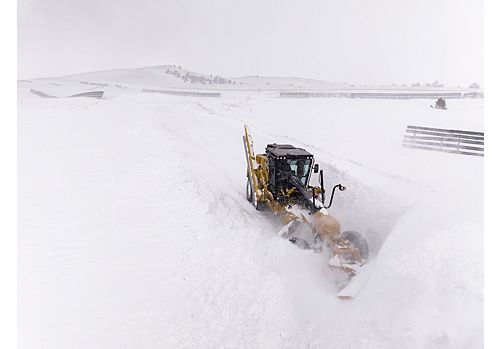

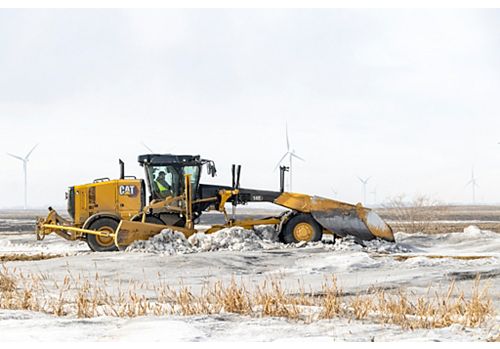

- Snow Wings
- V-Plow
- Straight Plow
- Brooms

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Cross Slope Assist for Motor Graders
Cat Grade with 3D for Motor Graders

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting

Productivity

VisionLink® Productivity is a cloud-based application that is scalable to any size operation. Detailed Cat Production Measurement data, machine data and jobsite data are transmitted from the onboard Cat Product Link™ device directly to the web platform, for you to access wherever you are, via your mobile, tablet or desktop device.

Model
VisionLink™ Productivity

Lift Group

Increase machine versatility and improve overall production.

Model	Pin Diameter	Actuation	Machine Model
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	140 JOY, 150 JOY, 160 JOY
50.8 mm Pin - Manual	2 in / 50.8 mm	Manual	140 JOY, 150 JOY, 160 JOY
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	14
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	140 JOY, 150 JOY, 160 JOY
50.8 mm Pin - Manual	2 in / 50.8 mm	Manual	140 JOY, 150 JOY, 160 JOY
38.1 mm Pin - Manual	1.5 in / 38.1 mm	Manual	14
