AP1000

Operating weight with SE60 FM: 42620 lb / 19332 kg
Maximum Throughput Capacity: 1766 ton(US)/h / 1602 tonnes/hr
Fuel Tank Capacity: 92 gal (US) / 348 l

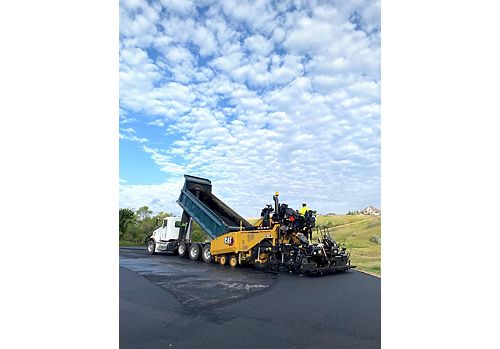

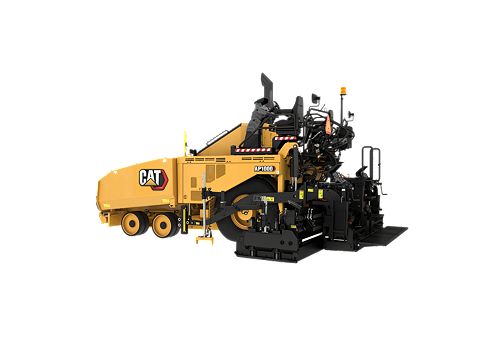

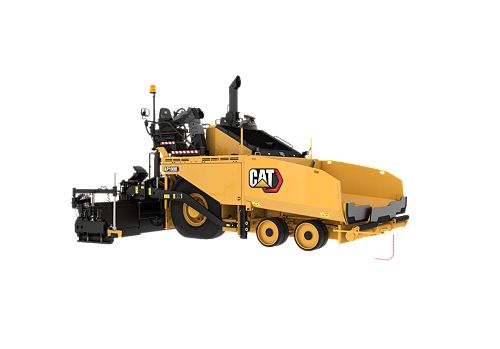

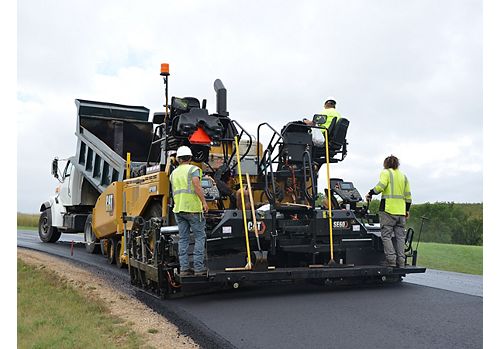

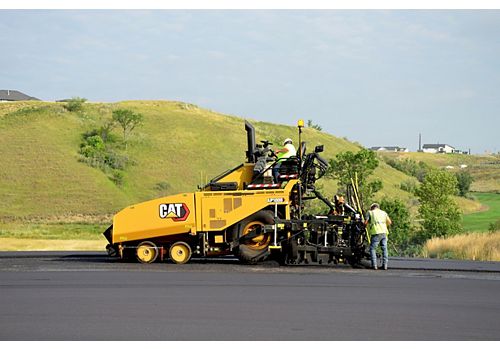

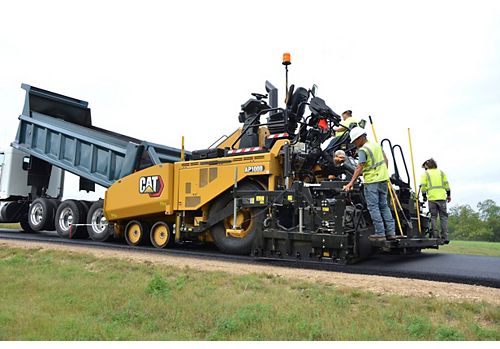

The Cat AP1000 Asphalt Paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.

Loan Calculator Credit Application

Build & Quote

Key Features Paving Product Line Brochure Paving Application Guides and eBooks

Specifications
Equipment
Related Products

Dimensions
Paving Range with SE60 FM	3.0 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V	3.0 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW	3.0 m - 7.5 m (10' - 24' 6")
Paving Range with SE60 VT XW	3.0 m - 6 m (10' - 19' 6")
Operating Length	22.3 ft / 6.8 m
Operating Width	10.8 ft / 3.3 m
Overall Height	12.3 ft / 3.8 m
Transport Length	20.9 ft / 6.4 m
Transport Width	11.9 ft / 3.6 m
Transport Height	9.8 ft / 3 m

Engine
Engine Power (1)	225 hp / 168 kW
Engine Model	Cat C7.1

Operating Specifications
Maximum Travel Speed	12 mile/h / 19.9 km/h
Maximum Paving Speed	250 ft/min / 76 m/min
Maximum Paving Speed - With Tamper Bar Screed	82 ft/min / 25 m/min
Inside Turn Radius	4.5 ft / 1.5 m
Maximum Throughput Capacity	1766 ton(US)/h / 1602 tonnes/hr

Weights
Operating weight with SE60 FM	42620 lb / 19332 kg
Operating weight with SE60 V	42360 lb / 19214 kg
Operating weight with SE60 V XW	43848 lb / 19889 kg
Shipping Weight - Paver Only	34228 lb / 15526 kg

Service Refill Capacities
Fuel Tank Capacity	92 gal (US) / 348 l
DEF Tank	5 gal (US) / 19.1 l
Cooling System - Total	12 gal (US) / 45 l
Hydraulic Oil Tank	58 gal (US) / 219 l
Washdown Spray Tank	7.9 gal (US) / 30 l

Standard Equipment

Operating Environment
- Dual operating stations
- Steering guide
- Ventilation system
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Cooling fan - variable speed
- Eco-mode
Electrical system
- 1400 CCA batteries
- 100 amp alternator
- 12-volt power receptacle
- Cat Electronic Technician
- Generator - 70 kW
Electrical System
- Automotive type fuse system
- Machine security
- Remote jump start receptacle
Material Delivery
- Material feed sensor_contact
- Push-roller-adjustable
Service and Maintenance
- Extended-life coolant
- Ground level engine air-filter access
- Extended life hydraulic oil
- Scheduled oil sampling ports
- Remote access drains
- Sight gauges, engine coolant, hydraulic oil
Safety
- Alarm - backup
- Horn
- Lights - working
- Mirror package
- Vandal covers

Optional Equipment

Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Thermal mapping
- VisionLink™ telematics
Powertrain
- All wheel drive
- Ballast_front weights
- Front wheel assist
- Radial drive tires
- Sand rib drive tires
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Cat SDX Screed Plates
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Material feed sensor_sonic
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Safety
- Lights_roading
- Warning_LED safety beacons
Screed Choices
- SE60 FM Screed

Grade

<p>Cat® Grade technologies combine digital design data, in-cab guidance, and automatic controls to enhance grading accuracy, reduce rework, and lower costs related to production earthmoving and rough, fine and finish grade applications.</p><p>Whether you're working on simple planes and slopes or complex contour designs, Grade technologies enable you to boost grading efficiency by as much as 50%, helping you get more work done – in less time and at a lower cost – than ever before.</p>

Model
Cat Grade with Grade and Slope For Pavers
Cat Grade with Thermal Mapping For Pavers

Equipment Management

Cat® Equipment Management gives you access to the data you need to keep your equipment on the job site and earning money. You can track equipment location and hours, monitor machine use and health, then take informed action that will keep your operation running smoothly, efficiently and profitably.

Model
VisionLink™
Cat® Inspect
Cat® Remote Troubleshooting

Screeds

Cat asphalt screeds feature hydraulic variable-width adjustment and electrically heated screed plates. They are available in rear-extender and front-extender models.

Model	Paving Range with SE50 V	Paving Range with SE60 V	Paving Range with SE60 V XW
Cat® SDX Screed Plate System	2.55 m - 6.50 m (8' 4" – 21' 4")	3 m to 7.45 m (9' 10" - 24' 5")	3 m to 7.95 m (9' 10" - 29' 4")
