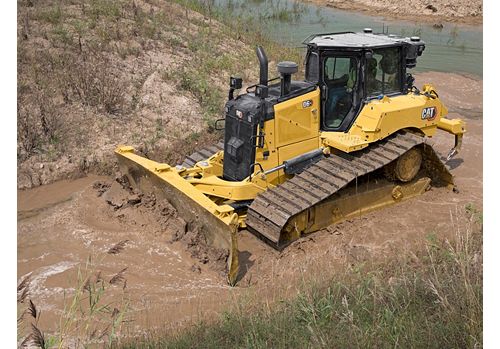

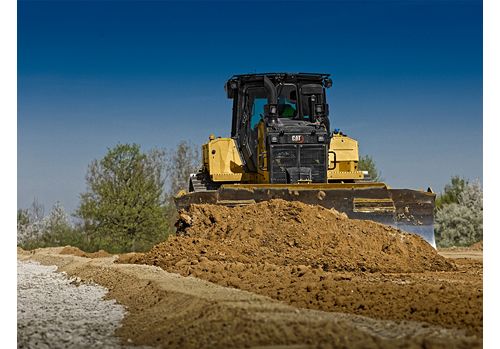

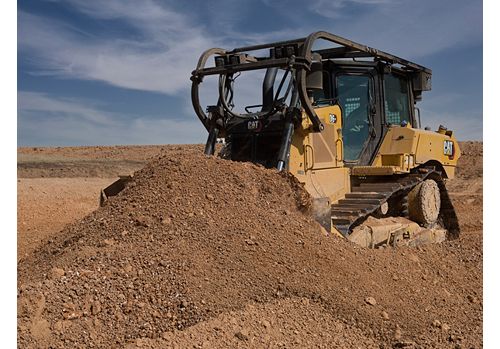

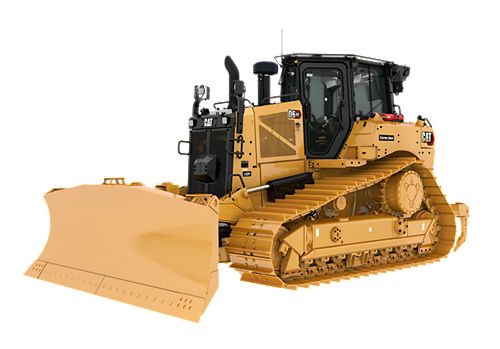

The Cat D6 XE is the world’s first high drive Electric Drive dozer, offering you the highest level of productivity, fuel efficiency and ease of operation, along with reduced service/maintenance costs. The broadest range of technology features in the industry work together to help you make the most of your equipment investment.
| Engine | |
|---|---|
| Engine Model | Cat C9.3B |
| Power - Net | 215 HP / 161 kW |
| Net Power - Rated - ISO 9249/SAE J1349 | 215 HP / 161 kW |
| Net Power (Rated) - ISO 9249 (DIN) | 219 mhp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Note (1) | Rated horsepower at 1,700 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 20B |
| Weights | |
|---|---|
| Operating Weight | 51333 lb / 23285 kg |
| Transmission | |
|---|---|

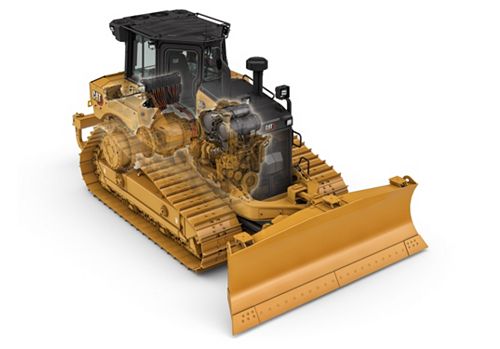

| Power Train | Electric Drive |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 90 gal (US) / 341 l |
| DEF Tank | 7.4 gal (US) / 28 l |
| D6 XE Push Arm | |
|---|---|
| Operating Weight | 49388 lb / 22403 kg |
| Ground Pressure | 8 psi / 55 kPa |
| Width of Standard Shoe | 24 in / 610 mm |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 7.5 yd³ / 5.7 m³ |
| D6 XE LGP (30-in) Push Arm | |
|---|---|
| Operating Weight | 51020 lb / 23143 kg |
| Ground Pressure | 6.6 psi / 45 kPa |
| Width of Standard Shoe | 30 in / 760 mm |
| Blade | Semi-Universal (SU) |
| Blade Capacity | 7.6 yd³ / 5.8 m³ |
| D6 XE LGP (36-in) Push Arm | |
|---|---|
| Operating Weight | 53315 lb / 24184 kg |
| Ground Pressure | 5.3 psi / 37 kPa |
| Width of Standard Shoe | 36 in / 915 mm |
| Blade | Straight |
| Blade Capacity | 5 yd³ / 3.8 m³ |
| D6 XE VPAT | |
|---|---|
| Operating Weight | 49708 lb / 22548 kg |
| Ground Pressure | 7.2 psi / 49 kPa |
| Width of Standard Shoe | 24 in / 610 mm |
| Blade | VPAT |
| Blade Capacity | 5.4 yd³ / 4.1 m³ |
| D6 XE LGP (30-in) VPAT | |
|---|---|
| Operating Weight | 51333 lb / 23285 kg |
| Ground Pressure | 5.9 psi / 41 kPa |
| Width of Standard Shoe | 30 in / 760 mm |
| Blade | VPAT |
| Blade Capacity | 5.9 yd³ / 4.5 m³ |
| D6 XE LGP (36-in) VPAT | |
|---|---|
| Operating Weight | 52512 lb / 23820 kg |
| Ground Pressure | 5.1 psi / 35 kPa |
| Width of Standard Shoe | 36 in / 915 mm |
| Blade | VPAT |
| Blade Capacity | 6.5 yd³ / 4.9 m³ |
| Sustainability | |
|---|---|
| Recyclability | 98% |
| Air Conditioning System | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.36 kg of refrigerant which has a CO2 equivalent of 1.946 metric tonnes. |
