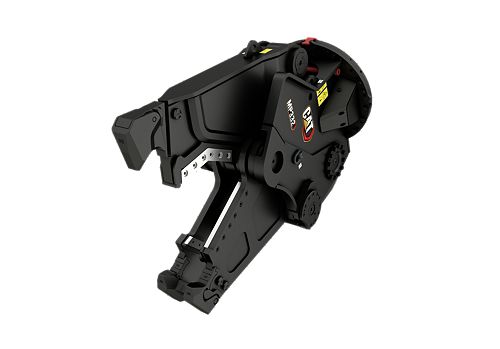

MP332 Concrete Cutter Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.3 s
- Crushing Force - Primary Cutter
- 478.6 Sh Ton / 4258 kN

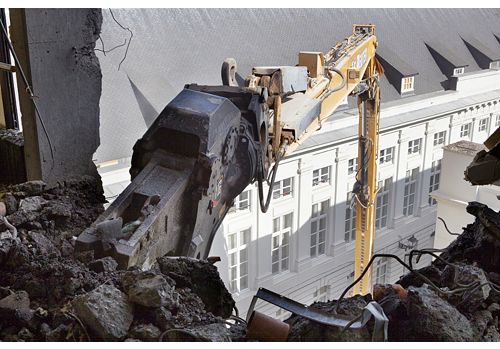

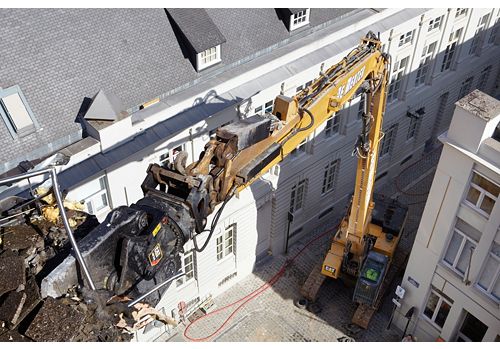

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.3 s |
| Crushing Force - Primary Cutter | 478.6 Sh Ton / 4258 kN |
| Crushing Force - Cutter Tip | 204.1 Sh Ton / 1816 kN |
| Crushing Force - Tooth Tip | 153.7 Sh Ton / 1367 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 bar |
| Jaw Circuit - Max. Oil Flow | 280 L/min / 74 gpm |
| Rotation Circuit - Max. Oil Pressure | 16000 kPa / 2321 psi |
| Rotation Circuit - Max. Oil Flow | 40 L/min / 10.6 gpm |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 34.2 in / 869 mm |
| Cutter Length | 496 mm / 19.5 in |
| Jaw Opening - Maximum | 36.5 in / 927 mm |
| Jaw Width - Fixed | 353 mm / 13.9 in |
| Jaw Width - Moveable | 140 mm / 5.5 in |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 3221 kg / 7101.1 lb |
| Weight - Jaw Only | 2976.2 lb / 1350 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 32 tons |
| Excavator Maximum | 50 tons |
