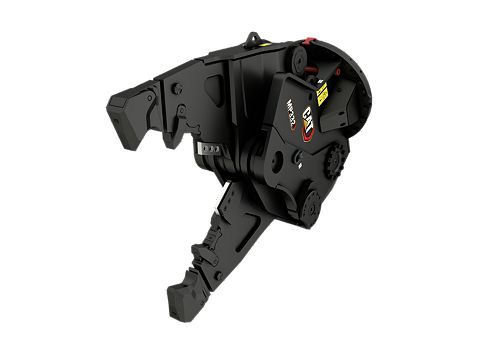

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.3 s |
| Crushing Force - Primary Cutter | 460 Sh Ton / 4094 kN |
| Crushing Force - Cutter Tip | 219 Sh Ton / 1951 kN |
| Crushing Force - Tooth Tip | 151 Sh Ton / 1347 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 350 bar / 5076 psi |
| Jaw Circuit - Max. Oil Flow | 74 gal/min / 280 l/min |
| Rotation Circuit - Max. Oil Pressure | 160 bar / 2321 psi |
| Rotation Circuit - Max. Oil Flow | 40 l/min / 11 gal/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 35.8 in / 909 mm |
| Cutter Length | 7.9 in / 200 mm |
| Jaw Opening - Maximum | 42.4 in / 1078 mm |
| Jaw Width - Fixed | 5.5 in / 140 mm |
| Jaw Width - Moveable | 5.5 in / 140 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 88.7 in / 2253 mm |
| Height | 78.5 in / 1995 mm |
| Width | 39.6 in / 1005 mm |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 32 tons |
| Excavator Maximum | 50 tons |
| Model | Net Power - ISO 9249 | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| 336 - Tier 4 | 300 HP / 223.5 kW | 81100 lb / 36800 kg | 26.11 ft / 8210 mm |
| 340 - Tier 4 | 346 HP / 258.3 kW | 83100 lb / 37700 kg | 26.9 ft / 8210 mm |
| 350 | 413 HP / 308 kW | 105100 lb / 46000 kg | 26.11 ft / 8210 mm |
| 352 | 443 HP / 330 kW | 107800 lb / 48900 kg | 26.11 ft / 8210 mm |
| Model | Operating Weight |
|---|---|
| 324D L | 54660 lb / 24790 kg |
| 330 GC - Tier 4 / Stage V | 68100 lb / 30900 kg |
| 330 - Tier 4 / Stage V | 69200 lb / 31400 kg |
| 335 - Tier 4 / Stage V | 77000 lb / 34900 kg |
