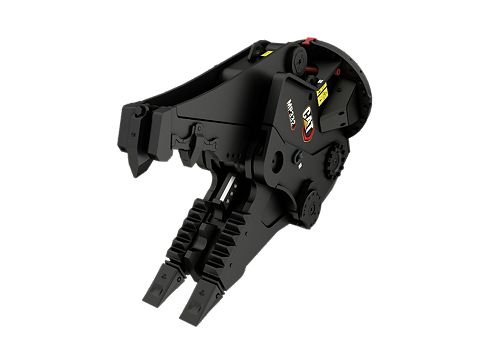

MP332 Pulverizer Jaw
- Cycle Time - Open
- 1.9 s
- Cycle Time - Close
- 1.3 s
- Crushing Force - Primary Cutter
- 556.1 Sh Ton / 4947 kN
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.9 s |
| Cycle Time - Close | 1.3 s |
| Crushing Force - Primary Cutter | 556.1 Sh Ton / 4947 kN |
| Crushing Force - Cutter Tip | 487.4 Sh Ton / 4336 kN |
| Crushing Force - Tooth Tip | 142.5 Sh Ton / 1268 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 4786 psi / 33000 kPa |
| Jaw Circuit - Max. Oil Flow | 74 gpm / 280 L/min |
| Rotation Circuit - Max. Oil Pressure | 2321 psi / 16000 kPa |
| Rotation Circuit - Max. Oil Flow | 10.6 gpm / 40 L/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 33.1 in / 840 mm |
| Cutter Length | 7.9 in / 200 mm |
| Jaw Opening - Maximum | 31.6 in / 803 mm |
| Jaw Width - Fixed | 19.7 in / 500 mm |
| Jaw Width - Moveable | 12.3 in / 313 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Length | 89.6 in / 2277 mm |
| Height | 74 in / 1879 mm |
| Width | 39.6 in / 1005 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 7418.5 lb / 3365 kg |
| Weight - Jaw Only | 3293.7 lb / 1494 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 32 tons |
| Excavator Maximum | 50 tons |
