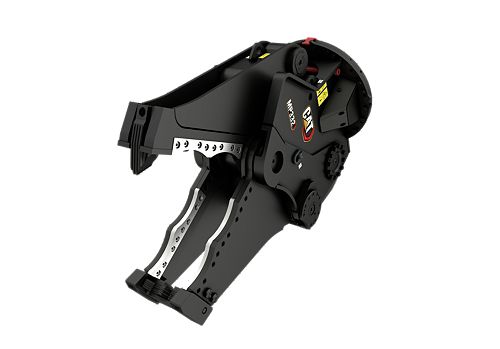

MP332 Universal Jaw

Cycle Time - Open: 1.6 s
Cycle Time - Close: 1 s
Crushing Force - Primary Cutter: 533 Sh Ton / 4743 kN

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Loan Calculator Credit Application

Build & Quote

MP332 Multi-Processor Key Features Multi-Processor Brochure Multi-Processors Technical Specifications

Specifications
Related Products

Performance
Cycle Time - Open	1.6 s
Cycle Time - Close	1 s
Crushing Force - Primary Cutter	533 Sh Ton / 4743 kN
Crushing Force - Cutter Tip	292 Sh Ton / 2600 kN
Crushing Force - Tooth Tip	161 Sh Ton / 1436 kN

Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure	5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow	74 gal/min / 280 l/min
Rotation Circuit - Max. Oil Pressure	2321 psi / 160 bar
Rotation Circuit - Max. Oil Flow	11 gal/min / 40 l/min

Dimensions - Jaw
Jaw Depth	32.9 in / 835 mm
Cutter Length	26.4 in / 670 mm
Jaw Opening - Maximum	33.1 in / 840 mm
Jaw Width - Fixed	19.2 in / 487 mm
Jaw Width - Moveable	10.9 in / 277 mm

Dimensions - Housing + Jaw
Length	90.7 in / 2303 mm
Height	73.5 in / 1866 mm
Width	39.6 in / 1005 mm

Weight
Weight - Housing, Jaw and Bracket	7419 lb / 3365 kg
Weight - Jaw Only	3294 lb / 1494 kg

Recommended Carrier Weight
Excavator Minimum	32 tons
Excavator Maximum	50 tons

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm
340 - Tier 4 / Stage V	346 hp / 258.3 kW	83100 lb / 37700 kg	26.9 ft / 8210 mm
350 - Tier 4 / Stage V	413 hp / 308 kW	105100 lb / 46000 kg	26.11 ft / 8210 mm
352	443 hp / 330 kW	107800 lb / 48900 kg	26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
