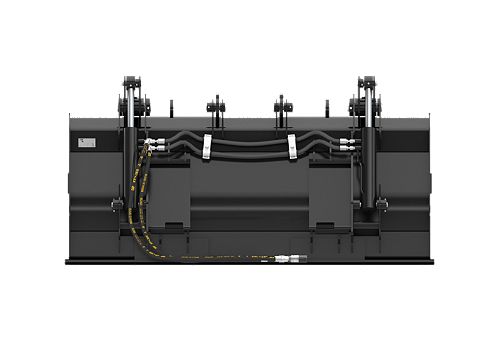

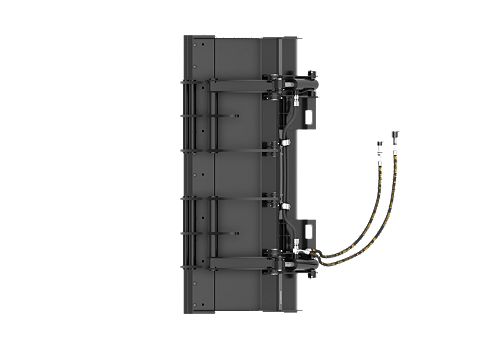

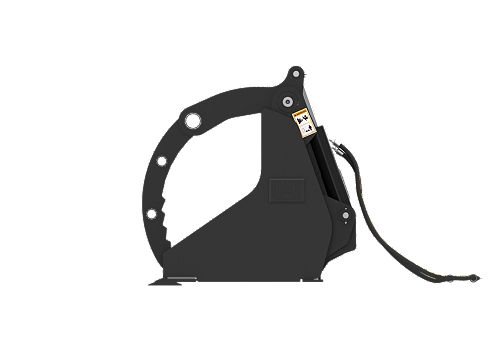

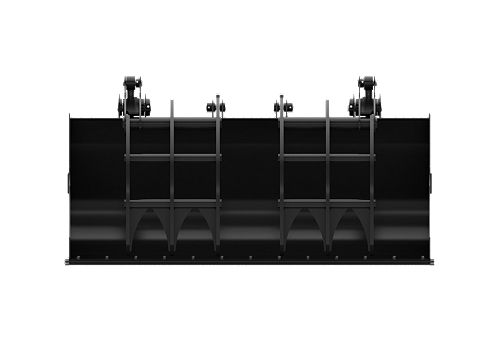

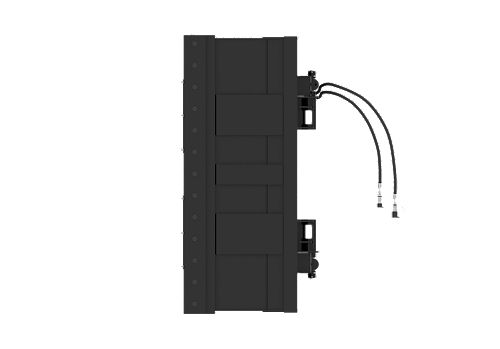

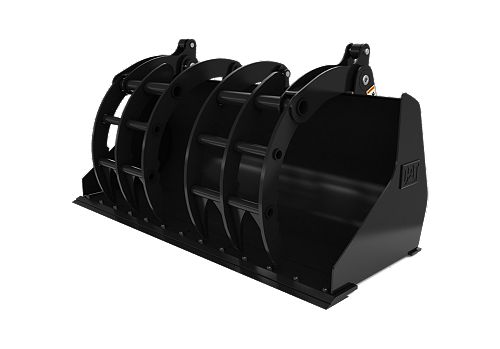

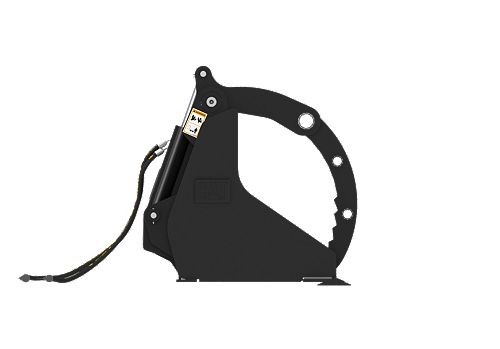

2080 mm (82 in), Skid Steer Coupler, Bolt-On Cutting Edge
- Width
- 81.9 in / 2080 mm
- Weight
- 1295 lb / 587.4 kg
- Height - Grapples Closed
- 41.5 in / 1054 mm
Cat® Industrial Grapple Buckets are designed to handle a wide array of materials in a variety of operating conditions.
| Product Specifications | |
|---|---|
| Width | 81.9 in / 2080 mm |
| Weight | 1295 lb / 587.4 kg |
| Height - Grapples Closed | 41.5 in / 1054 mm |
| Length | 40.5 in / 1028 mm |
| Jaw Opening | 40 in / 1016 mm |
| Base Edge Thickness | 0.8 in / 20 mm |
| Cutting Edge Thickness | 0.6 in / 16 mm |
| Interface Type | Skid Steer Coupler |
Compact Wheel Loaders
| Model | Maximum Gross Power | Operating Weight | Bucket Capacities |
|---|---|---|---|
| 906 | 74.7 hp / 55.7 kW | 12628 lb / 5730 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 908 | 74.7 hp / 55.7 kW | 14617 lb / 6632 kg | 0.75-1.55 m³ (1.0-2.0 yd³) |
| 906M | 73.2 hp / 54.6 kW | 12346 lb / 5600 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 906M Ag Handler | 73.2 hp / 54.6 kW | 12758 lb / 5789 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 907M | 73.2 hp / 54.6 kW | 12677 lb / 5750 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 907M Ag Handler | 73.2 hp / 54.6 kW | 12958 lb / 5880 kg | 0.75-1.5 m³ (1.0-2.0 yd³) |
| 908M | 73.2 hp / 54.6 kW | 14032 lb / 6365 kg | 0.75-1.5 m3 (1.0-2.0 yd3) |
| 908M Ag Handler | 73.2 hp / 54.6 kW | 14402 lb / 6535 kg | 0.9-1.5 m³ (1.2-2.0 yd³) |
