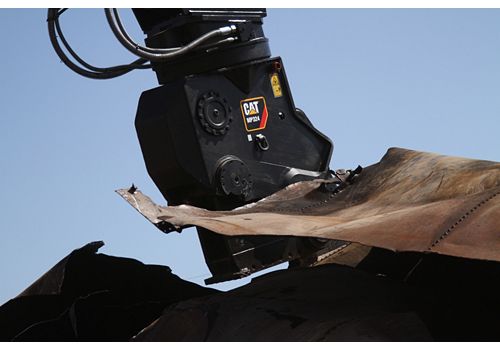

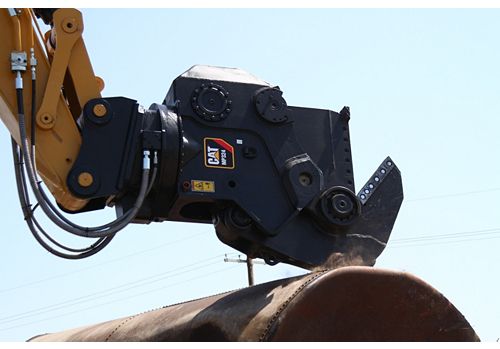

MP324 Tank Shear

Cycle Time - Open: 1.8 s
Cycle Time - Close: 1.2 s
Cutting Force - Blade Throat: 488 Sh Ton / 4344 kN

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Loan Calculator Credit Application

Build & Quote

MP324 Multi-Processor Key Features Multi-Processor Brochure Multi-Processors Technical Specifications

Specifications
Related Products

Performance
Cycle Time - Open	1.8 s
Cycle Time - Close	1.2 s
Cutting Force - Blade Throat	488 Sh Ton / 4344 kN
Cutting Force - Blade Center	213 Sh Ton / 1894 kN
Cutting Force - Blade Tip	174 Sh Ton / 1550 kN

Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure	5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow	59 gal/min / 225 l/min
Rotation Circuit - Max. Oil Pressure	2031 psi / 160 bar
Rotation Circuit - Max. Oil Flow	11 gal/min / 40 l/min

Dimensions - Jaw
Jaw Depth	19.3 in / 490 mm
Cutter Length	17.3 in / 439 mm
Jaw Opening - Maximum	19.1 in / 485 mm
Jaw Width - Fixed	11.3 in / 286 mm
Jaw Width - Moveable	4.7 in / 120 mm

Dimensions - Housing + Jaw
Width	83.8 in / 2129 mm
Length	61.9 in / 1571 mm
Height	31.2 in / 793 mm

Weight
Weight - Housing, Jaw and Bracket	6113 lb / 2773 kg
Weight - Jaw Only	2487 lb / 1128 kg

Recommended Carrier Weight
Excavator Minimum	24 tons
Excavator Maximum	35 tons

Large Excavators

Their power, speed, and fuel efficiency make Cat® large excavators the right machine for bulk excavation applications. With powerful, yet efficient engines, advanced hydraulic systems, factory equipped technology, and matching attachments, these machines will help you complete your large-scale projects on time and within budget.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
336 -Tier 4 / Stage V	300 hp / 223.5 kW	81100 lb / 36800 kg	26.11 ft / 8210 mm

Medium Excavators

Their size make Cat® mid-size excavators easy to transport to the jobsite. With ample power, exclusive factory-equipped technology, comfortable cabs, simple maintenance and matching Cat attachments, Cat mid-size excavators will help you complete larger projects at a lower cost.

Model	Net Power - ISO 9249	Operating Weight	Maximum Digging Depth
323 - Tier 4 / Stage V	172 hp / 128.5 kW	55100 lb / 25000 kg	22.1 ft / 6730 mm
326 - Tier 4 / Stage V	201 hp / 149.8 kW	56400 lb / 25600 kg	22.4 ft / 6820 mm
330 GC - Tier 4 / Stage V	201 hp / 150 kW	68100 lb / 30900 kg	23.8 ft / 7260 mm
330 - Tier 4 / Stage V	273 hp / 203.7 kW	69200 lb / 31400 kg	23.9 ft / 7240 mm
335 - Tier 4 / Stage V	273 hp / 203.7 kW	77000 lb / 34900 kg	22.9 ft / 6990 mm
