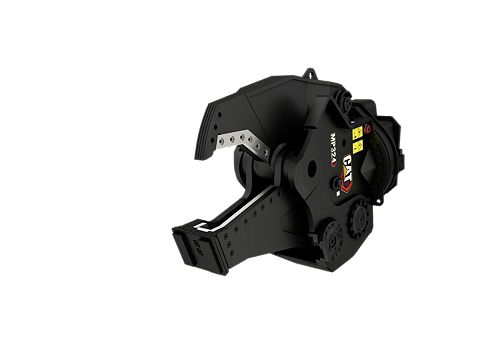

MP324 Shear Jaw
- Cycle Time - Open
- 1.8 s
- Cycle Time - Close
- 1.2 s
- Cutting Force - Blade Throat
- 669 Sh Ton / 5956 kN
Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.
| Performance | |
|---|---|
| Cycle Time - Open | 1.8 s |
| Cycle Time - Close | 1.2 s |
| Cutting Force - Blade Throat | 669 Sh Ton / 5956 kN |
| Cutting Force - Blade Center | 275 Sh Ton / 2445 kN |
| Cutting Force - Blade Tip | 150 Sh Ton / 1332 kN |
| Hydraulic Requirements | |
|---|---|
| Jaw Circuit - Max. Oil Pressure | 5076 psi / 350 bar |
| Jaw Circuit - Max. Oil Flow | 59 gal/min / 225 l/min |
| Rotation Circuit - Max. Oil Pressure | 2031 psi / 140 bar |
| Rotation Circuit - Max. Oil Flow | 11 gal/min / 40 l/min |
| Dimensions - Jaw | |
|---|---|
| Jaw Depth | 24 in / 610 mm |
| Cutter Length | 19.5 in / 496 mm |
| Jaw Opening - Maximum | 15.5 in / 394 mm |
| Jaw Width - Fixed | 12.3 in / 312 mm |
| Jaw Width - Moveable | 3.7 in / 93 mm |
| Dimensions - Housing + Jaw | |
|---|---|
| Width | 82 in / 2082 mm |
| Length | 55.9 in / 1419 mm |
| Height | 31.2 in / 793 mm |
| Weight | |
|---|---|
| Weight - Housing, Jaw and Bracket | 5730 lb / 2599 kg |
| Weight - Jaw Only | 2103 lb / 954 kg |
| Recommended Carrier Weight | |
|---|---|
| Excavator Minimum | 24 tons |
| Excavator Maximum | 35 tons |
Medium Excavators
| Model | Operating Weight |
|---|---|
| 323 - Tier 4 / Stage V | 55100 lb / 25000 kg |
| 325 - Tier 4 / Stage V | 62800 lb / 28500 kg |
| 326 - Tier 4 / Stage V | 56400 lb / 25600 kg |
| 330 - Tier 4 / Stage V | 69200 lb / 31400 kg |
| 330 GC - Tier 4 / Stage V | 68100 lb / 30900 kg |
| 335 - Tier 4 / Stage V | 77000 lb / 34900 kg |
| 324D L | 54660 lb / 24790 kg |
