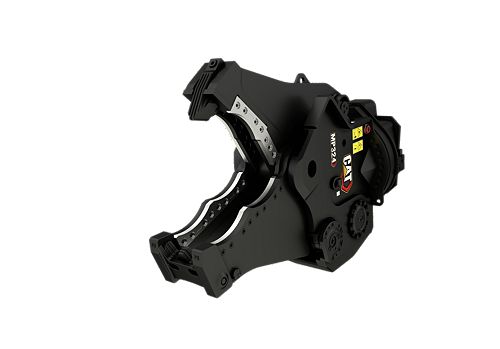

MP324 Universal Jaw

Heavy Equipment

MP324 Universal Jaw

Cycle Time - Open
1.8 s
Cycle Time - Close
1.2 s
Crushing Force - Primary Cutter
410 Sh Ton / 3646 kN

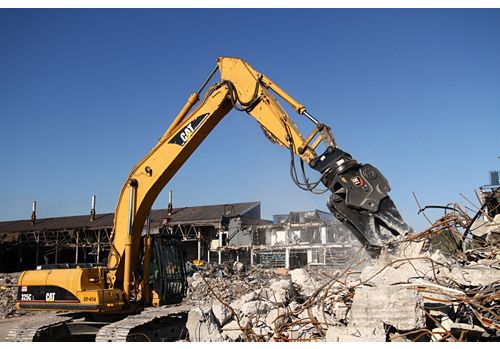

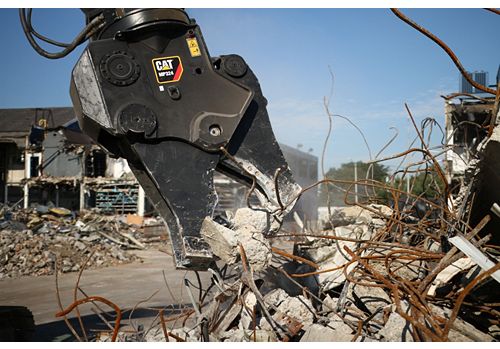

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Performance
Cycle Time - Open 1.8 s
Cycle Time - Close 1.2 s
Crushing Force - Primary Cutter 410 Sh Ton / 3646 kN
Crushing Force - Cutter Tip 221 Sh Ton / 1964 kN
Crushing Force - Tooth Tip 133 Sh Ton / 1180 kN
Hydraulic Requirements
Jaw Circuit - Max. Oil Pressure 5076 psi / 350 bar
Jaw Circuit - Max. Oil Flow 40 gal/min / 150 l/min
Rotation Circuit - Max. Oil Pressure 2031 psi / 140 bar
Rotation Circuit - Max. Oil Flow 11 gal/min / 40 l/min
Dimensions - Jaw
Jaw Depth 26.8 in / 680 mm
Cutter Length 20.7 in / 526 mm
Jaw Opening - Maximum 25.3 in / 642 mm
Jaw Width - Fixed 17.9 in / 454 mm
Jaw Width - Moveable 9.3 in / 235 mm
Dimensions - Housing + Jaw
Length 86.1 in / 2186 mm
Height 57.6 in / 1464 mm
Width 31.2 in / 793 mm
Weight
Weight - Housing, Jaw and Bracket 6010 lb / 2726 kg
Weight - Jaw Only 2383 lb / 1081 kg
Recommended Carrier Weight
Excavator Minimum 24 tons
Excavator Maximum 35 tons
