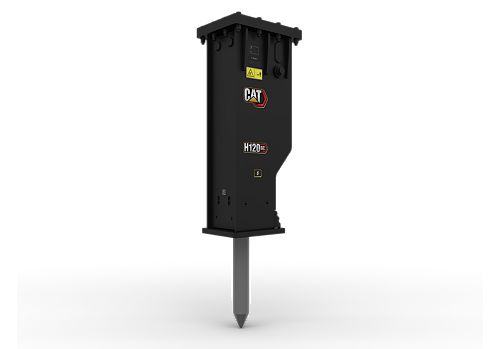

H120 GC S

Minimum Operating Weight
3849 lb / 1746 kg
Rated Flow - Minimum
33 gpm / 125 L/min
Rated Flow - Maximum
40 gpm / 150 L/min

Cat® H120 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H120 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H120 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

Loan Calculator Credit Application
Build & Quote
alt 1
Cat GC S Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye) GC & GC S Hammers Excavator Attachments - Product Brochure (Global) Cat GC S Hammer - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye)
Product Specifications
Blows per Minute 400 to 800
Minimum Operating Weight 3849 lb / 1746 kg
Rated Flow - Minimum 33 gpm / 125 L/min
Rated Flow - Maximum 40 gpm / 150 L/min
Minimum Operating Pressure 2320 psi / 16000 kPa
Maximum Operating Pressure 2610 psi / 18000 kPa
Tool Shaft Diameter 5.3 in / 135 mm
Minimum Carrier Weight 39683 lb / 18 t
Maximum Carrier Weight 55115 lb / 25 t

Wheel Excavators

Cat® wheeled excavators have the mobility, speed, power, and reliability to be the most versatile machine in your fleet. They help you take on a variety of challenges every day, and at a lower cost.

Model Engine Power - ISO 14396 Operating Weight Maximum Maximum Travel Speed
M320 174 hp / 129.4 kW 46740 lb / 21200 kg 21.7 mile/h / 35 km/h
M322 174 hp / 129 kW 54770 lb / 24845 kg 18.6 mile/h / 30 km/h

Tiltrotators

Helps you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Model Machine Class Weight Interface Options: Top-Bottom
TRS20 Tiltrotator: 645-6920 18-24 ton Excavators 1779 lb / 807 kg HCS70 / HCS70
TRS20 Tiltrotator: 645-6921 18-24 ton Excavators 1664 lb / 755 kg Pin-on / S70
TRS26 Tiltrotator: 645-6926 23-32 ton Excavators 2068 lb / 938 kg HCS70 / HCS70
TRS26 Tiltrotator: 645-6927 23-32 ton Excavators 2066 lb / 937 kg Pin-on / S70
TRS26 Tiltrotator: 645-6931 23-32 ton Excavators 2535 lb / 1150 kg HCS80 / HCS80
TRS26 Tiltrotator: 645-6932 23-32 ton Excavators 2394 lb / 1086 kg Pin-on / S80

Medium Excavators

Cat® Medium excavators deliver powerful, fuel-efficient performance across construction, utility, road projects, site preparation, and land clearing work. With operating weights from 20 to 35 tons, they balance strength and maneuverability for diverse sites. These machines tackle transport challenges, fuel costs, and demand for versatility. Supporting a wide range of attachments for trenching, grading, and lifting, they adapt easily to changing site conditions. Smart technology and ergonomic cabs boost comfort and productivity, making them ideal for precision driven contractors.

Model Net Power - ISO 9249 Operating Weight Maximum Digging Depth
320 - Tier 4 / Stage V 172 hp / 128.5 kW 49800 lb / 22600 kg 22 ft / 6720 mm
320 GC - Tier 4 / Stage V 146 hp / 109 kW 48500 lb / 22000 kg 22 ft / 6720 mm
323 - Tier 4 / Stage V 172 hp / 128.5 kW 55100 lb / 25000 kg 22.1 ft / 6730 mm
326 - Tier 4 / Stage V 201 hp / 149.8 kW 56400 lb / 25600 kg 22.4 ft / 6820 mm
