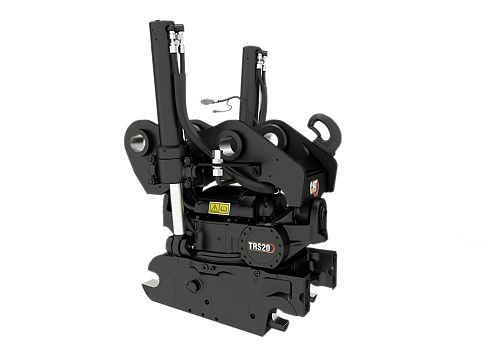

TRS20 Tiltrotator: 645-6921

Weight: 1664 lb / 755 kg
Overall Height: 49 in / 1235 mm
Length: 34 in / 873 mm

Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.

Loan Calculator Credit Application

Build & Quote

Tiltrotators Technical Specifications (Europe) Tiltrotators Technical Specifications (N Am, S Am) Tiltrotators Technical Specifications (Aus-NZ, Japan) Tiltrotators Family Bi-Fold Brochure

Specifications
Related Products

Product Specifications
Machine Class	18-24 ton Excavators
Weight	1664 lb / 755 kg
Interface Options: Top-Bottom	Pin-on / S70
Overall Height	49 in / 1235 mm
Length	34 in / 873 mm
Overall Width	34 in / 859 mm
Rotation Speed	7 seconds, per 1 full rotation
Tilt Angle Range	40° Left/Right
Maximum Bucket Capacity	1.44 yd³ / 1.1 m³
Maximum Bucket Width	71 in / 1800 mm
